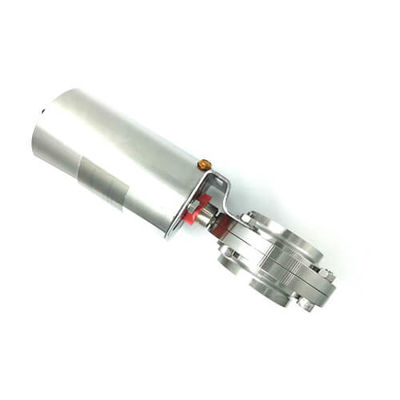

Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator
Our Product Introduction
for more products please visit us on watercontrol-valve.com
Basic Information
Place of Origin:
China
Brand Name:
OEM
Certification:
CE, ISO9001
Model Number:
CX-SBTY-001
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood Cases
Delivery Time:
15-60 Days
Payment Terms:
L/C, T/T
Supply Ability:
Based On Order
Product Specification
Pressure:
Low Pressure
Temperature Of Media:
Medium Temperature
Application:
General
Shape:
Round
Structure:
Butterfly
Material:
Stainless Steel3304/316L
Port Size:
Standard
Type:
Butterfly Valves
Power:
Pneumatic Actuator,Handle Operated
Highlight:
stainless steel butterfly valve

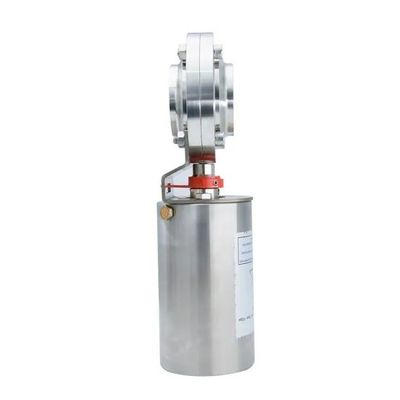

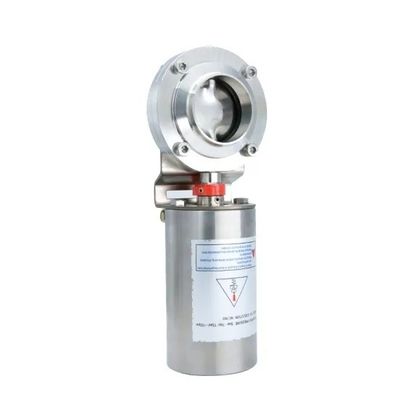

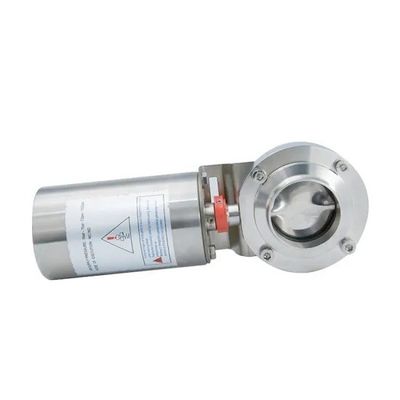

More Images
Our Product Introduction
for more products please visit us on watercontrol-valve.com
Product Description
Hygienic Sanitary Stainless Steel 304,316L welding type Butterfly Valve with Pneumatic Actuator
About us
Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.
Technical Specifications
|
Valve Body Material:
|
1.4404/1.4301, SS304/SS316L
|
|
Seal Material:
|
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
|
|
Mex working pressure:
|
10Bar
|
|
Max. Working Temperature:
|
-10 ºC to120 ºC(EPDM Seal)
|
|
Availably size:
|
DN25-DN100, 1"-4"
|
|
Availably connection:
|
Clamp / weld / thread/ weld thread/ flange
|
|
Availably standard:
|
3A/DIN/SMS/RJT/ISO/IDF
|
|
Operated:
|
Manual,Pneumatic, Electric
|
|
Control:
|
Sensor, C-TOP, C-top controller(AS-I)
|
|
Certificate:
|
ISO, PED/97/23/EC, FDA.177.2600
|
|
Handle application:
|
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
|
|
Packaging Details:
|
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
|
|
Delivery details:
|
Usually within 20 days after receiving T/T down payment.
|
Operating principles
The butterfly valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open" or "closed" position, certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls butterfly vavle.
For more detail information or catalog pls don't hesitate to contact us. We can also produce according to your drawings and specifictions.
