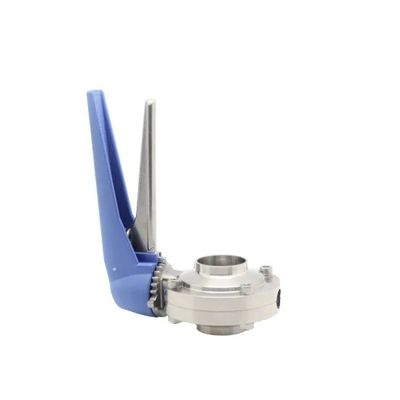

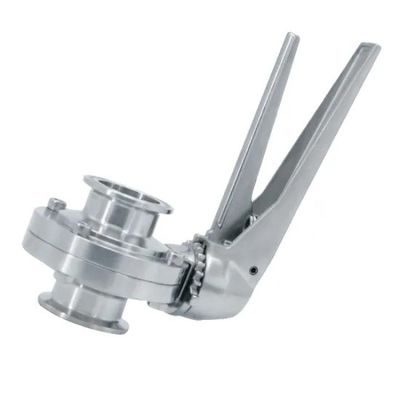

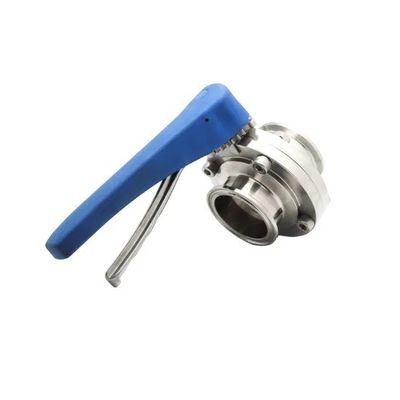

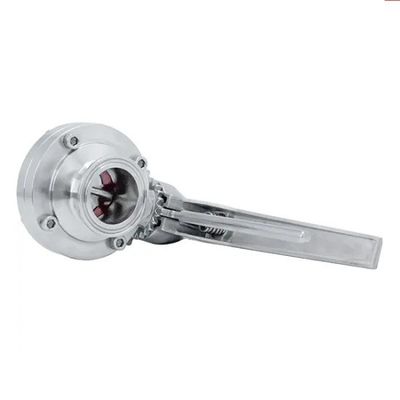

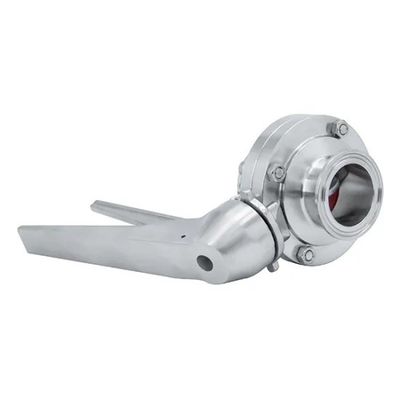

High Performance Sanitary Butterfly Valve With Multi Position Handle
Our Product Introduction
for more products please visit us on watercontrol-valve.com
Basic Information
Place of Origin:
China
Brand Name:
OEM
Certification:
ISO9001, 3A, FDA
Model Number:
CX-SBTV-003
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood Cases
Delivery Time:
15-60 Days
Payment Terms:
L/C, T/T
Supply Ability:
Based On Order
Product Specification
Operation:
Stainless Steel Gripper Handle, Pneumatic
Diameter:
DN15 - DN300, 1/2" - 12", Or Custom On Request
Working Pressure:
0-10 Bar
Connection Ends:
Butt Weld, Clamp, Union, Male Thread, Flange
Connection Standard:
DIN, 3A, SMS, ISO, IDF, BS, ASME BPE
Application:
Pipe Lines In Hygienic Industries Like Food, Pharmacy, Dairy, Beverage, Breweries
Highlight:
stainless steel butterfly valve
More Images
Our Product Introduction
for more products please visit us on watercontrol-valve.com
Product Description
Clamp Hygienic Sanitary Butterfly Valve With Ss Multi Position Handle
Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.
Application:
The series of this valve is a kind of sanitary pneumatic valve which are widely used in stainless steel pipeline system to control and regulate medium flow.
Material:
Steel parts: Stainless steel 304, stainless steel 316L
Seal: Silicone(VMQ), Fluoroelastomer(FPM), EPDM
Specification:
| Product name: |
Hygienic Sanitary SS Food Grade Tri-Clamp Butterfly Valve with Ss Muti-Position Handle |
| Valve Body: | SS 304. SS 316L material out from precision CNC milling machined. |
| Feature: | Body can be changeable. And low torque. |
| Standard: | BS. SMS. DIN 3A weld and male/male end. Clamp end. |
| Artwork: | Electro polished ad PTFE coating can be Required. |
| Handle: | Different nylon re-force and stainless steel handle gripper, pull, Press type. |
| Operation: | From 2 Position-12 Position, Design for your width range and beautiful choice. |
| Size: | DN15-DN300&1/2"-12" |
| Design: | Remote-controlled operation by the driving gear or manual operation by the handle |
| Drive forms: | Normally closed, normally opened and opened & closed by two air flues separately. |
| Medium: |
Beer,Food, beverage, dairy, pharmacy, chemical or any food processing industries |
Work principle:
This kind of valve are handled by manual. CX FLUID offers three types handle, such as stainless steel multi-position handle, plastic multi-position handle, and pulling handle.
Multi-position handle regulates the valve by 13 seats achiening control of medium flow purpose.
Pulling handle regulates the valve through four multi-function positioning, in its open or close four position, also achieves control of medium flow purpose.
This kind of valve also can be handled by a pneumatic actuator. Pneumatic actuator is to covert the axial movement of piston to be 90 degree rotation of valve shaft, so that the valve can be open or close to achieve the requirment of control and open /close for the pipeline system. They have three type of actator: normally open (NO), normally closed (NC), air/air(A/A)
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
