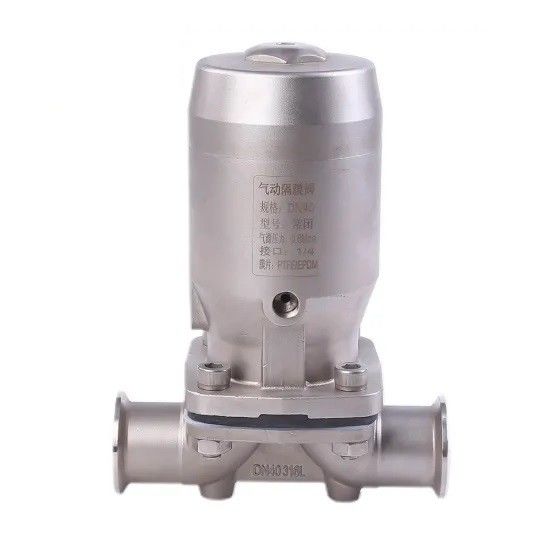

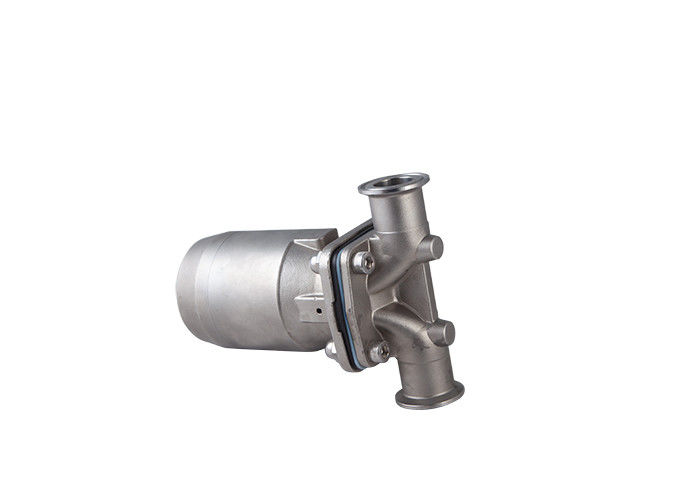

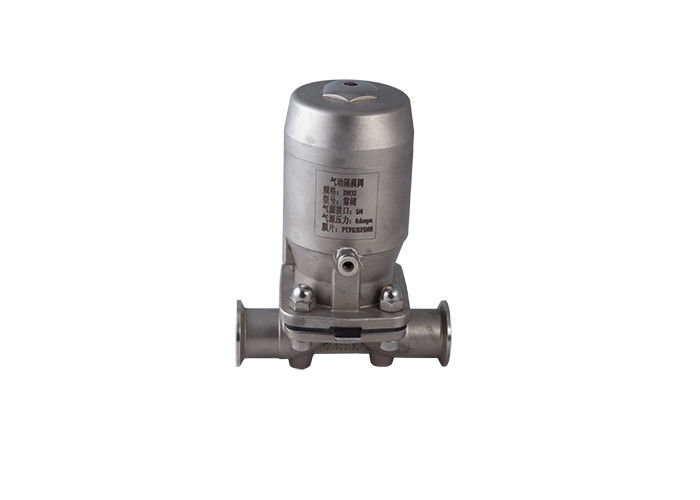

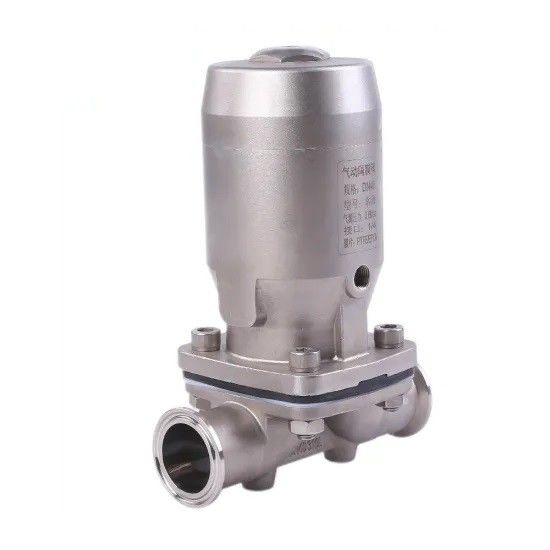

Pneumatic Actuator Manual Sanitary tri clamped Straight Type Diaphragm Valve
Technical specification:
| Size | 1"-4", DN25-DN100 |
| Material | Forging body: 1.4404/ 316L/ASME BPE 316L/ 1.4435 BN2 Fe≤0.5 |
| Casting body: 1.4404/316L/ ASTM A351 CF3M | |
| Max. temperature | -30 ºC to 150 ºC (depending on diaphragm) (stainless steel wheel) |
| -30 ºC to 130 ºC(depending on diaphragm) (plastic wheel) | |
| Max. pressure | 10 bar |
| Connection design | welding, clamp, flange, thread, DIN 11864 aseptic flange, clamp, thread |
| Body structure | T type-Tee, L type-Tee, U type-Tee, multiport, tank bottom valve and various body structures |
| Operation way | Manual: plastic and stainless steel handwheel |
| Pneumatic: plastic box stainless steel pneumatic actuator, multifunctional pneumatic actuator. | |
| Control:IL-TOP intelligent positioner, C-TOP intelligent control unit, FKQ-TOP, position feedback device, intelligent electric actuator, manual flow regulator | |
| Long life design | Below 2 bar, maximum life of 800 million times. |
| Application scope | dairy, food, beverage, water processing, wine fine chemicals, pharmaceutical industries etc. |
| Certificate | FDA, USP, 3A, EN, CE |
| Packaging details | standard exporting package or as per the request of customers |
| Delivery details | Usually within 20 days after receiving T/T down payments |
Diaphragm valves: Manual or air actuated.are specially designed for hygienic and asepsis processes in pharmacy industry.This valve is excellent for controlling as well as on/off fluid.
Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.
