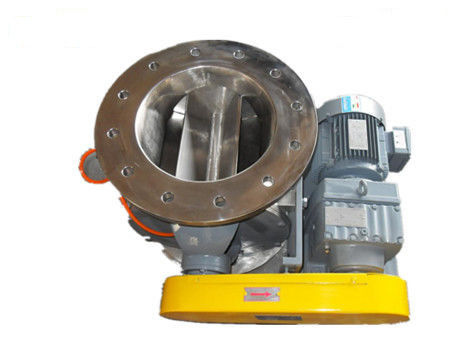

Rotary Airlock Valve
Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Rotary valve is often used in lime powder.
Rotary valve is applied to discharge powder or granular material either in positive air pressure or in negative air pressure of pneumatic conveying system.Also it is a necessary device for ventilation and move dust systems.Rotary valve is especially suitable for separating and discharging powder and small particulate matter in the process of positive and negative suction.
Rotary valve is commonly used in industrial and agricultural applications as a component in a bulk or specialty material handing system.Rotary valve is primarily used for dischang of bulk soild material from hoppers/bins,receivers,and cyclones into a pressure or vacuum-driven pneumatic conveying system.Rotors have large vanes cast or welded on and are typically driven by small internal combusyion enginesor electric motors.
1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
| Pressure Range | 2bar system and differential pressure |
| Work temperature | -20℃~200℃ |
| Main Size | DN100mm~1200mm(4"~48") |
| Flange Standard | PN10/ANSI150lbs/JIS/GB/HG/SH or customised |
| Drive Mode | Chain Drive with OSHA Guard |
| Capacity | 100KG~150000KG/H |
| Application Medium | Powder and granular form |
| Rotor | Adjust blades scalloped rotor |
| Shaft Sealing | Gland Packing or AirPuge seals |
| Else | Vent opening |
| Model | Installation Dimension | Working temperature |
RPM (rpm/min) |
Motor power (KW) |
Weight (KG) |
||||||||
| ØA | ØB | ØC | H | Q | L | M | N | n-Ø | |||||
| 2L | 100 | 160 | 190 | 250 | 8 | 720 | 6-Ø13 | Inboard bearings≤80℃ Outboard bearings≤300℃ |
3~33 | 0.55 | 80 | ||
| 4L | 150 | 220 | 250 | 300 | 8 | 780 | 600 | 560 | 8-Ø13 | 0.55 | 100 | ||
| 8L | 200 | 280 | 320 | 350 | 10 | 820 | 650 | 600 | 8-Ø18 | 0.75 | 120 | ||
| 14L | 250 | 330 | 370 | 420 | 10 | 880 | 800 | 680 | 8-Ø18 | 1.1 | 165 | ||
| 24L | 300 | 380 | 420 | 450 | 15 | 1000 | 850 | 720 | 8-Ø18 | 1.5 | 280 | ||
| 35L | 350 | 450 | 500 | 520 | 15 | 1050 | 920 | 780 | 12-Ø18 | 2.2 | 450 | ||
| 50L | 400 | 500 | 550 | 580 | 20 | 1110 | 990 | 870 | 12-Ø18 | 3.0 | 610 | ||
| 68L | 450 | 550 | 600 | 640 | 20 | 1170 | 1100 | 930 | 12-Ø18 | 3.0 | 710 | ||
| 90L | 500 | 600 | 660 | 750 | 20 | 1230 | 1180 | 1100 | 16-Ø22 | 4.0 | 820 | ||
| 150L | 600 | 700 | 760 | 810 | 30 | 1350 | 1300 | 1120 | 16-Ø22 | 5.5 | 950 | ||
*Note: If match special flange,please let us know before production.
