soft seated ball valve

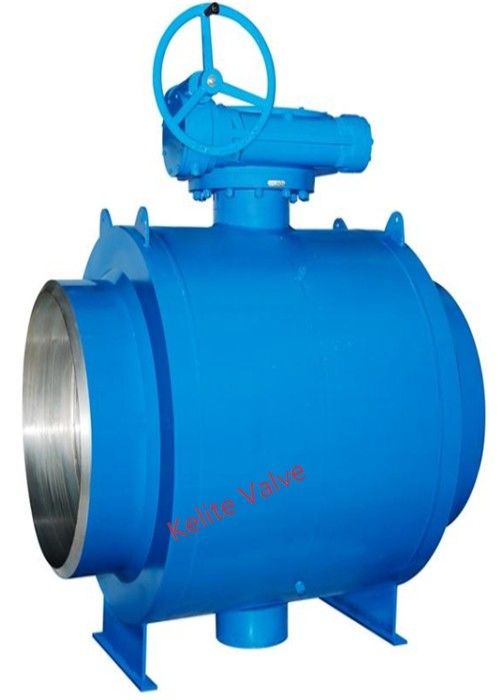

Fully welded ball valve, BW flange with gear operation, 6"-36"

Fully welded ball valve features:

• Since the all-welded ball valve body is welded, the valve is light and easy to insulate.
• The spring-loaded PTFE sphere seal ensures absolute tightness under all application conditions
• All welded ball valve ball and stem are made of stainless steel with two o-ring anti-flying valve stem structure to ensure the tightness, the upper container can be replaced, the working life is long
• All welded ball valves are available in welded, wired and flanged versions
• Obtained ISO 9001 certification
• Steel ball valves are suitable for use in local heating and cooling systems, pressure gas lines and oil lines.

Fully welded ftanged floating ball valves from series 6"-36" utilize flange connecting method to make them compatible with other flange-connected products. The valve replacement process is rather convenient These Kinds of valves are suitable for pipeline branches, underground pipeline, gas delivery equipment, liquid storage device, tunnel construction, etc.

Valve opening:flat steel handle (standard confìguration)/worm wheel (optional confìguration); motor driven/pneumatically driven/hydro driven (optionalconfìguration)

Medium:water,oil,gas

Product introduction

All welded ball valve material:

1): Valve body: carbon steel, A106-B; No. 20 steel

2): Sphere: Stainless steel 304 or 316

3): Stem: 2Cr13

4): stem seal: perfluoro-like glue

5): Sphere seal: PTFE (PTFE + C)

Standard features of all welded ball valves:

1): Size: DN150～900

2): Pressure: PN 16～64

3): Working temperature: -29 ° C ~ +200 ° C

4): All welded ball valve adapts to medium: water, oil, natural gas

5): All-welded ball valve operation mode: water, oil, natural gas

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
