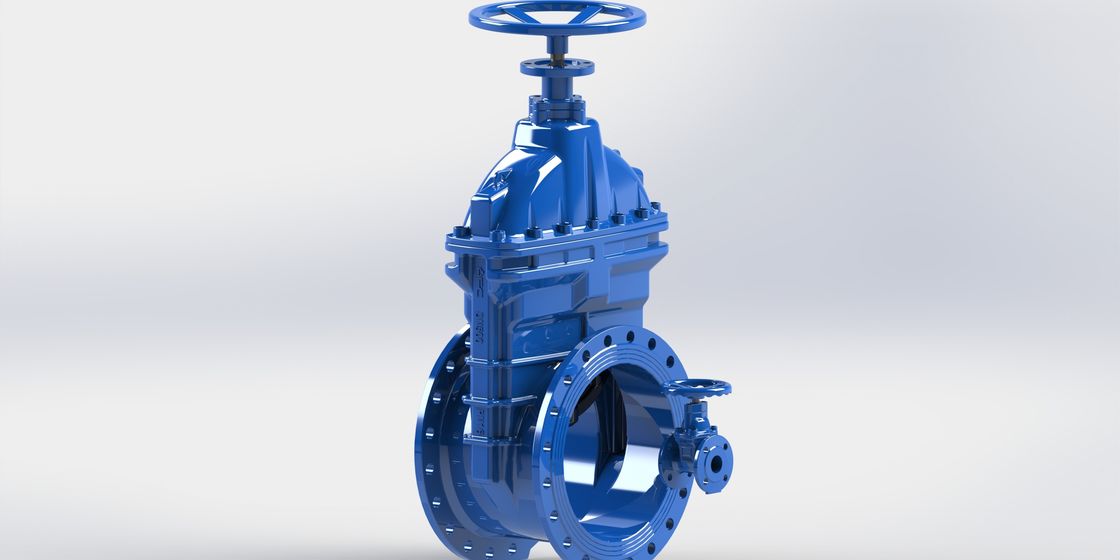

Flange Water High Grade Ductile Iron Gate Valve Soft Seated Drinking Water Approved
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
AFC's Resilient seated gate valve is a soft seal wedge which is fully encapsulated with rubber. The valve is designed with new technology for light operating, no clogging and no corrosion, good resilient memory & long service life. It can be used extensively in all kinds of water supply & sewage, fire-fighting and function as a shut-off or regulating valve.
Flanged ends acc. to EN 1092-2.
The valve can be operated via handwheel, extension spindle, or electric actuators(on request).
Approval:
1. WRAS
2. EN1074-2
3. ISO 9001
Production Quality Control
| IQC | Check call incoming parts |
| IPQC | Check the production process is qualified |
| FQC | All valves are pressure tested |
| OQC | Check the valve ourlook and packing |
Production Process:
1. Shot Blasting
2. Fusion Bonded Epoxy Coating
3. Assembling
4. 100% tested with shell test and seat test for both side.
Application:
| Size | DN50-DN600 |
| Working Temperature | - 10C- 80C |
| Flange | PN10/16 |
| Flow Media | Water, Sewage Water |
| Face to Face | EN558-1 |
Material:
