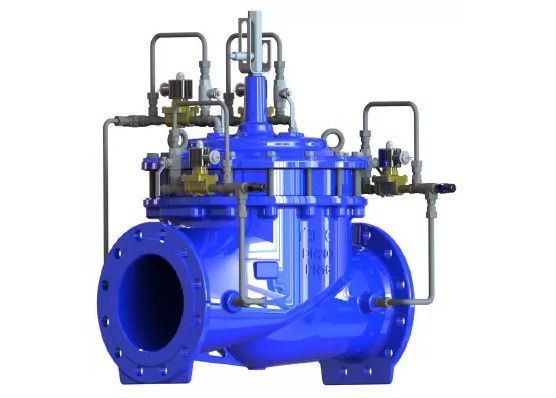

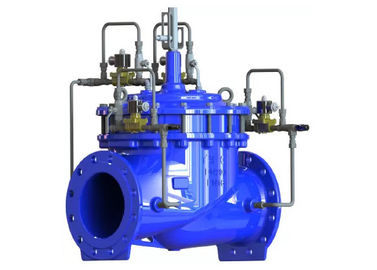

Electrical Type Water Control Valve Pump Control Valve Ductile Iron Body Epoxy Coated
Technical Data:
| Size range | DN 50-800MM |
| Pressure ratings | 1.0Mpa, 1.6Mpa,2.5Mpa |
| Flange | 1.0Mpa,1.6Mp,2.5 Mpa |
| Working temperature | -10°~80°C. |
| Flow media | clean water |
Description:
A76D is an electrical type pump control valve.
When pump opens, PLC controller will transmit signal then open the solenoid valve which can help the valve fully open and minimize the headloss,and the needle valves can be adjusted by controlling the opening and closing speed.
When the pump stops, PLC will transmit signal and open the solenoid valve and close the A76D slowly. After the valve close, the limit switch on the valve will send signal to PLC to shut down the pump. This active protection will prevent water hammer when pump stops.
. When power failure, A76D will act like a non-slam check valve. It will close quickly. This will minumize water hammer and water slamming
DN50-DN350
Parts list :
| No. | Description | Material | Standard |
| 1 | Body | Ductile Iron | GJS500-7 |
| 2 | Seat | Stainless Steel | AISI304 |
| 3 | O-ring | Rubber | NBR |
| 4 | Seat Retainer | Stainless Steel | AISI304 |
| 5 | Seal | Rubber | EPDM |
| 6 | Dics Holder | Carbon Steel | CS/1045 |
| 7 | Stem | Stainless Steel | AISI304 |
| 8 | O-ring | Rubber | NBR |
| 9 | Internal Body | Ductile Iron | GJS500-7 |
| 10 | Bush | Bronze | C61900 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
| 12 | Fixing holder | Ductile Iron | GJS500-7 |
| 13 | Bonnet | Ductile Iron | GJS500-7 |
| 14 | Nut | Stainless Steel | AISI304 |
| 15 | Screw | Stainless Steel | AISI304 |
| 16 | O-ring | Rubber | NBR |
| 17 | O-ring | Rubber | NBR |
| 18 | O-ring | Rubber | NBR |
| 19 | Spring | Stainless Steel | AISI304 |
| 20 | O-ring | Rubber | NBR |
| 21 | Nut | Stainless Steel | AISI304 |
| 22 | Plug | Stainless Steel | AISI304 |
| 23 | Screw | Stainless Steel | AISI304 |
| 24 | Nut | Stainless Steel | AISI304 |
DN400-DN800
Parts list :
| No. | Description | Material | Standard |
| 1 | Body | Ductile Iron | GJS500-7 |
| 2 | Seat | Stainless Steel | AISI304 |
| 3 | Screw | Stainless Steel | A2 |
| 4 | Washer | Stainless Steel | A2 |
| 5 | Bolt | Stainless Steel | A2 |
| 6 | Bonnet | Ductile Iron | GJS500-7 |
| 7 | Stem nut | Bronze | C61900 |
| 8 | Fix Washer | Stainless Steel | AISI304 |
| 9 | Fix Holder1 | Ductile Iron | GJS500-7 |
| 10 | Eye Bolt | Carbon Steel | CS/1040 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
| 12 | Fix Holder2 | Ductile Iron | GJS500-7 |
| 13 | Internal Body | Ductile Iron | GJS500-7 |
| 14 | O-ring | Rubber | NBR |
| 15 | O-ring | Rubber | NBR |
| 16 | Bush | Bronze | C61900 |
| 17 | Spring | Stainless Steel | AISI304 |
| 18 | Dics Holder | Ductile Iron | GJS500-7 |
| 19 | Seal | Rubber | NBR |
| 20 | Seal Retainer | Ductile Iron | GJS500-7 |
| 21 | Stem | Stainless Steel | AISI304 |
| 22 | Bush | Bronze | C61900 |
| 23 | O-ring | Rubber | NBR |
| 24 | Cap | Stainless Steel | AISI304 |
| 25 | Plug | Stainless Steel | AISI304 |
| 26 | Screw | Stainless Steel | A2 |
| 27 | O-ring | Rubber | NBR |
| 28 | Screw | Stainless Steel | A2 |
| 29 | Nut | Stainless Steel | A2 |
