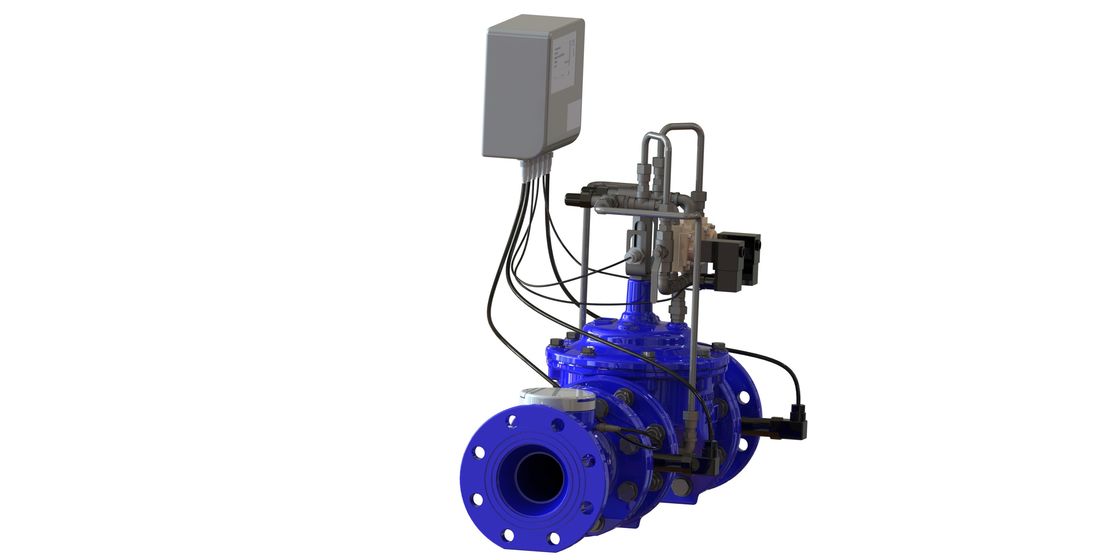

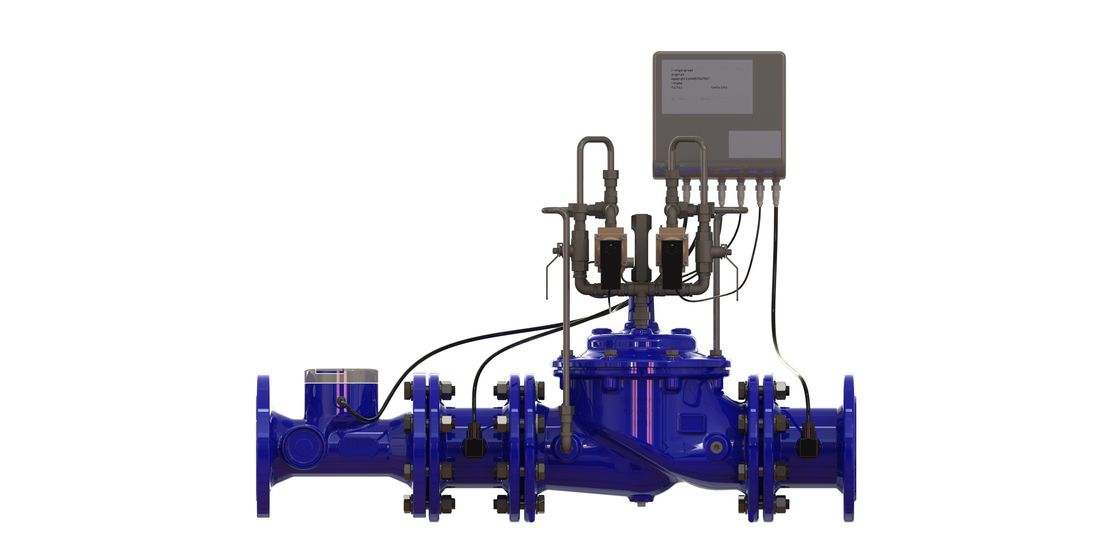

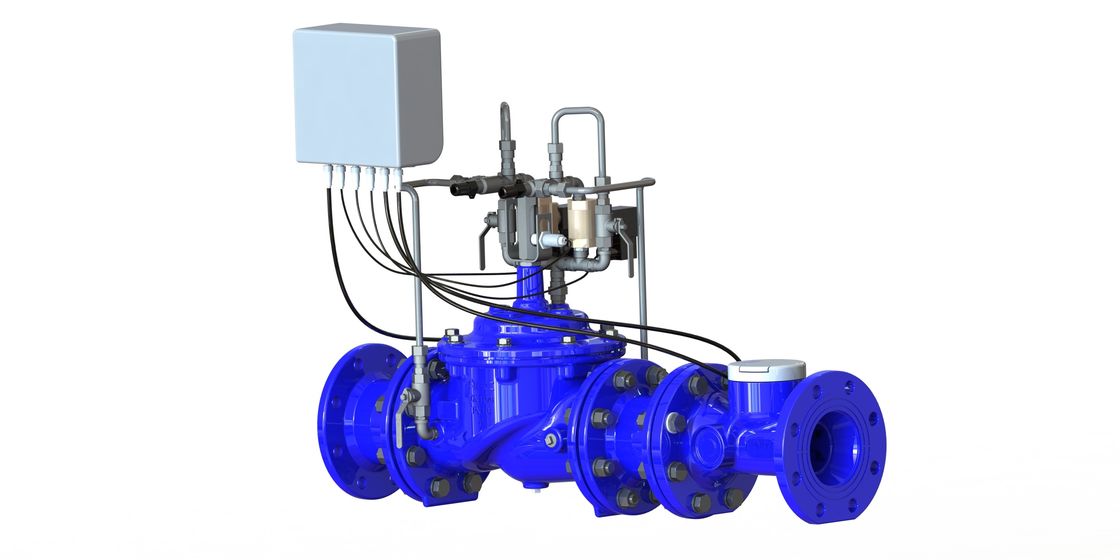

Water Control Valve Dynamic Pressure Control Based On Flow Rate
Technical Data:
Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-10°C- 80°C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS
EN 12266-1, BS EN 558-1
Description:
P26 series is a pressure management valve for water controlling
1. P26D can change the outlet pressure based on real time flow rate. You can define the curve between flow rate and outlet pressure.
Feature:
• 24 VDC as power input
• A touch screen to change settings in field easily.
• Remote setting by SCADA through RTU is available.
• Modbus as data access protocal
• Changing the pressure based on pre-set flow rate. Several flow rate with several pressure.
Service Fields:
For water system, irrigation system.
Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Series Description:
| Pressure Management Valve Type Series description | ||
| Type 1 | Type 2 | Type 3 |
| Change Valve Pressure Based on Time | Change Valve Pressure Based on Flow Rate | Change Valve Pressure Based on Flow Rate Dynamically. |
Materials And Dimensions DN50-DN350
Materials And Dimensions DN400-DN800
