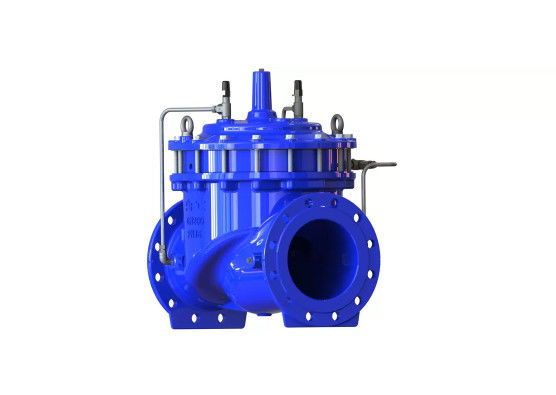

Mechanical Type Pump Control Valve With Anti Corrosion Stainless Steel Seat
-
Highlight
water regulator valve
-
MaterialDuctile Iron GJS500-7
-
Internal PartsSS304
-
Flow AreaFull Flow Area
-
ColorRAL 5010,RAL5015,RAL5017
-
ApprovalWRAS NSF61
-
StandardEN1074-5,ISO5208,EN1266-1,EN558-1,EN1092-2
-
Place of OriginChina
-
Brand NameBoquit
-
CertificationWRAS NSF61/372
-
Model NumberA76D
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order
Mechanical Type Pump Control Valve With Anti Corrosion Stainless Steel Seat
Electrical Type Pump Control Valve- A76D
Description:
A7MD is a mechnical type pump control valve.
When pump starts, A7MD will open slowly by the pressure increased in the middle chamber which provide a less headloss.
When the pump stops or out of electricirty, A7MD will act like a check valve. It will block the 80% of the flow area quickly and closed slowly at the last 20% stroke. This will prevent water hammer and water slamming.
Features:
| A7MD is a double chamber pump control valve series which will minimize the head loss |
| Simple, reliable and easy to install and maintenance |
| Nylon Reinforcement diaphragm for long life service |
| Stainless steel seat. Good for anti-corrosion |
| Stem movement with guide provide reliable performance |
| Powder epoxy coating |
| Meets standard BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1, BS EN 1092-2 |
Technical Data:
| Size range | DN 50-800MM |
| Pressure ratings | 1.0Mpa, 1.6Mpa,2.5Mpa |
| Flange | 1.0Mpa,1.6Mp,2.5 Mpa |
| Working temperature | -10°~80°C. |
| Flow media | clean water |
