Highlight
float operated valve
-
MaterialDuctile Iron GJS500-7
-
Pilot MaterialSS304
-
TubingSS304
-
CoatingEPOXY
-
DiaphragmNylon Reinforcement With EPDM
-
RubberEPDM
-
Place of OriginChina
-
Brand NameOEM
-
CertificationEN1074-5
-
Model NumberA100
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order
High Performance Float Control Valve Replaceable Seat Ring Available

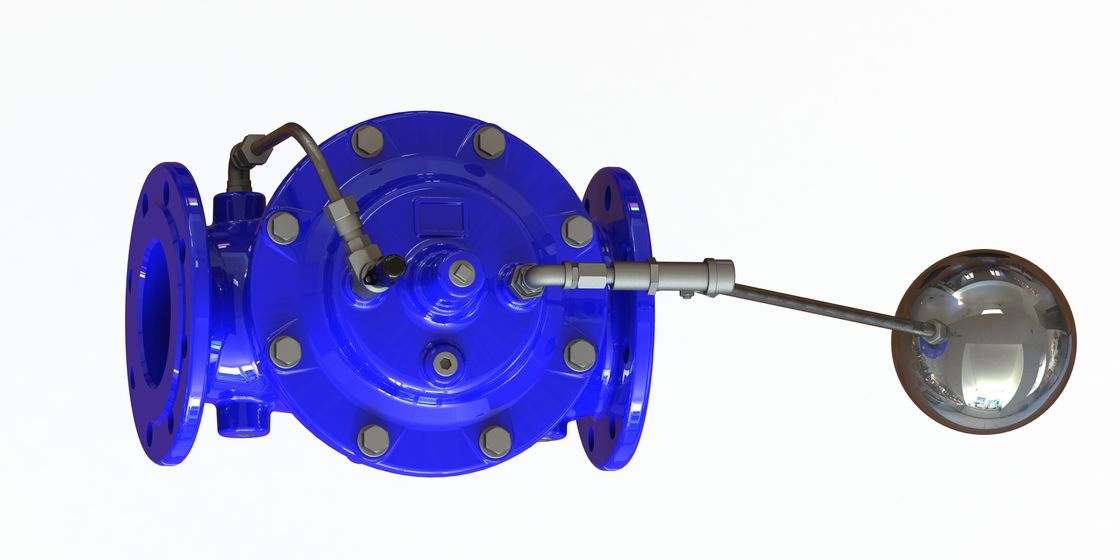

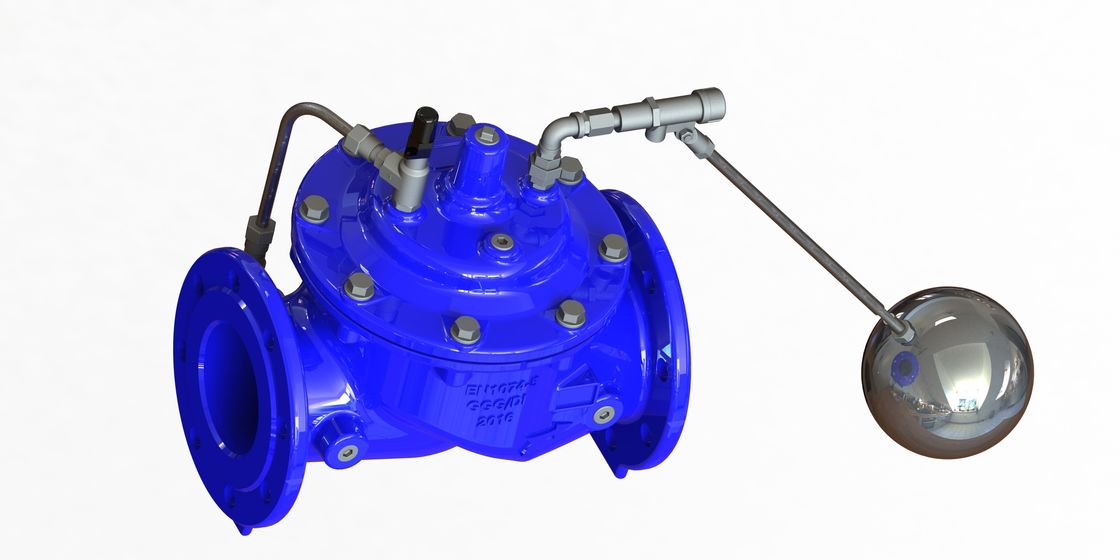

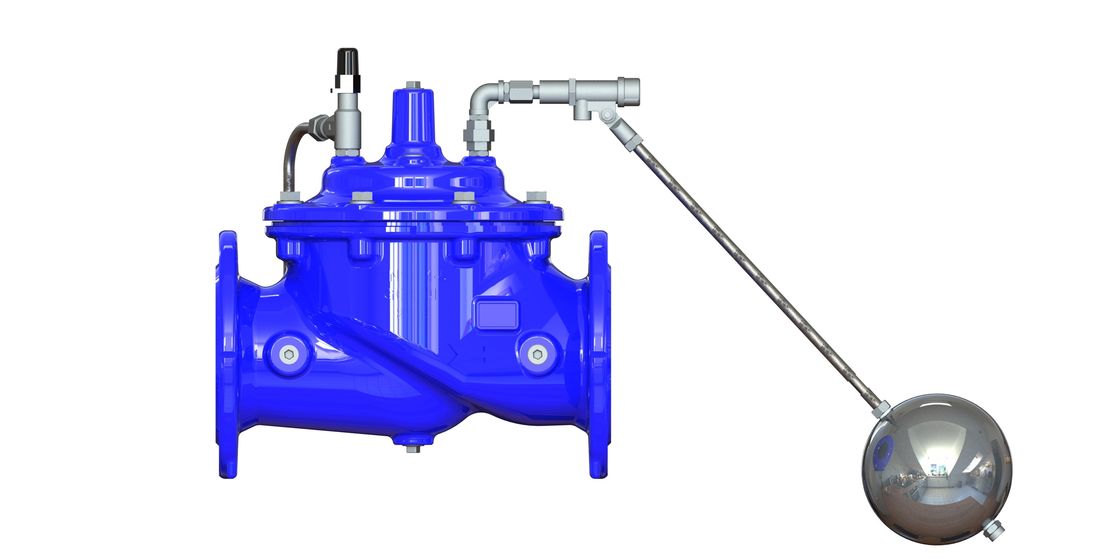

EPOXY Coated SS304 Float Pilot Ductile Iron Main Valve A100 Modulating Float Control Valve
Features:
Operates automatically off line pressure.
Nylon-reinforced diaphragm.
Diaphragm assembly guided top and bottom.
Easily maintained without removal from the line.
Replaceable seat ring.
Valves are factory tested.
Service Fields:
For water system, irrigation system.
Description:
The main valve is controlled by a float valve, located in the tank or reservoir and set at the required maximum water level. The valve maintains the maximum level continuously.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
