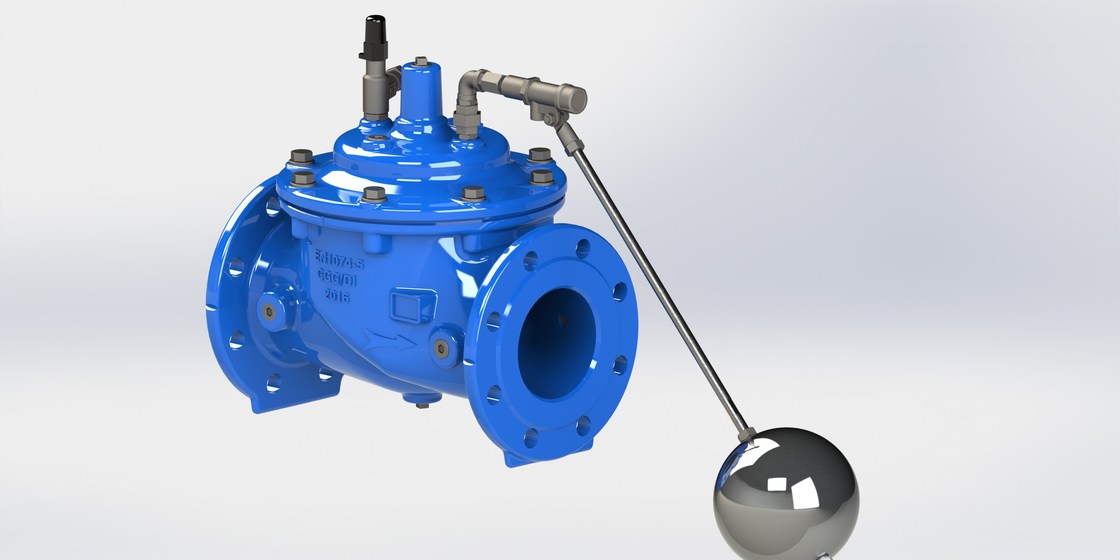

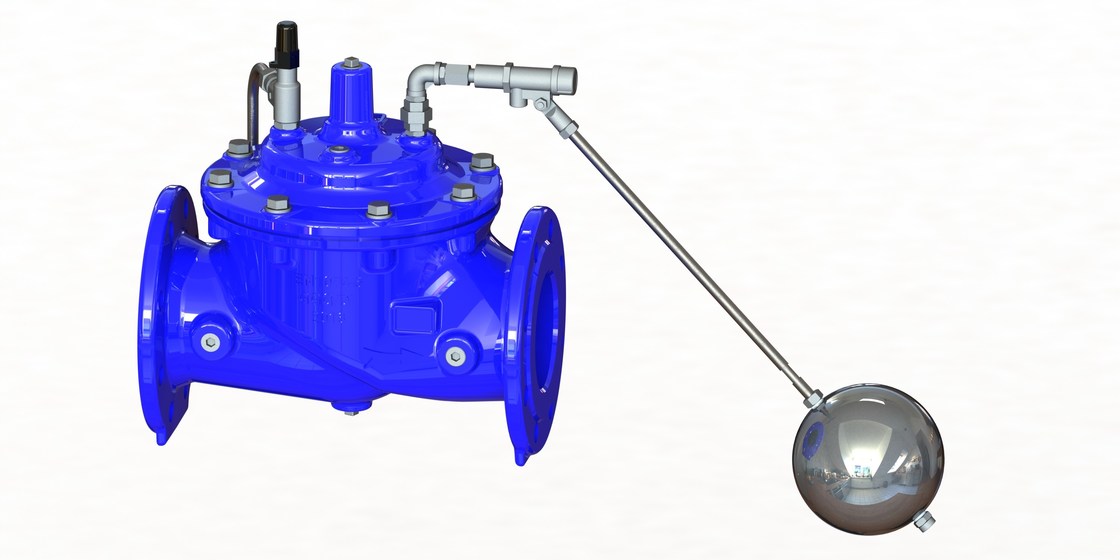

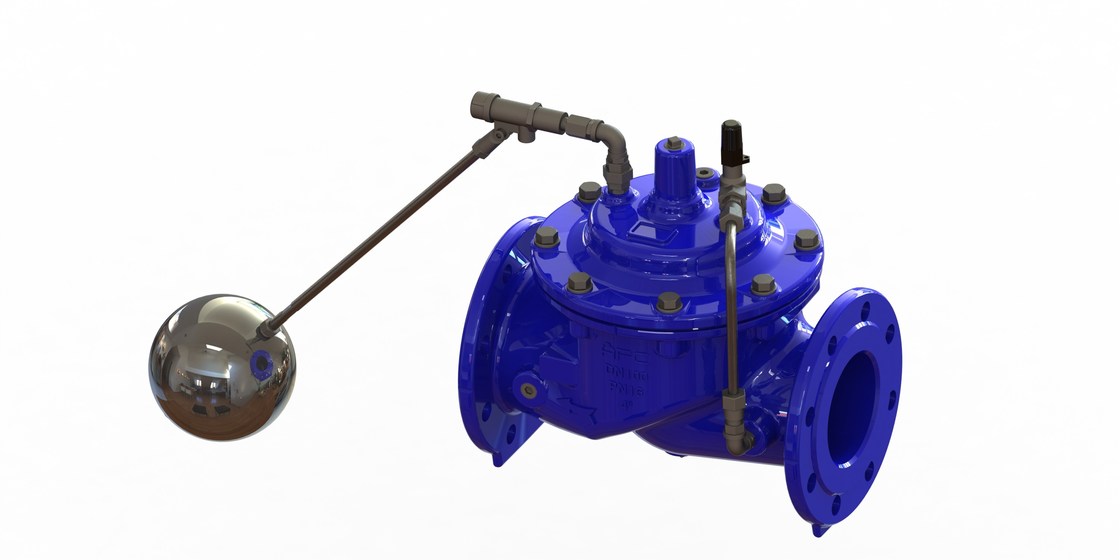

Epoxy Coated Modulating Float Operated Valve , Full Bore Water Level Float Valve
-
Highlight
float valve for water storage tank
-
MaterialDuctile Iron GJS500-7
-
Pilot MaterialSS304
-
StandardEN1074-5
-
FunctionModulating
-
CoatingEPOXY
-
DiaphragmNylon Reinfocement With EPDM
-
Place of OriginChina
-
Brand NameOEM
-
CertificationEN1074-5
-
Model NumberA100
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order
Epoxy Coated Modulating Float Operated Valve , Full Bore Water Level Float Valve
Nylon Reinfocement Diaphragm Stainless Steel Pilot Modulating Float control valve Full Bore EPOXY Coated
Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Introduction:
A100 is used to maintain a preset water level in a reservoir or a water tank in a simple, economic manner. The A100 valve is activated by the line pressure.
The A100 stays open as long as the water level in the reservoir is below the preset level. As the water level rises and lifts the float, the valve gradually closes.
Service Fields:
For water system, irrigation system.
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
