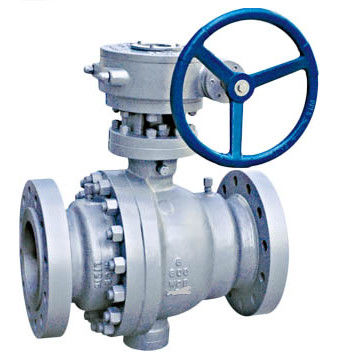

BALL VALVE FULL PORT FLANGE
About us:
Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.
Specifications:
- Full port, 2"~56" (DN50~DN1400)
- W. P.: PN10/16/25/40,CLASS 150/300/600/900/1500
- W. T.:-20℃ ~200℃ (-4℉~392℉)
- Investment casting / Forged steel
- Blow-out proof stem
- Anti-static device
- ISO 5211 Direct mounting pad
- Flange dimension :
ASME B16.5 CLASS 150/300/600/900/1500, EN 1092-1
- Face to face:
ASME B16.10 CLASS 150/300/600/900/1500, API 6D
|
| ITEM |
PARTS |
MATERIAL |
| 1 |
BODY |
ASTM A351-CF8M |
ASTM A216-WCB |
| 2 |
CAP |
| 3 |
BALL |
ASTM A182-F316 |
ASTM A105+ENP |
| 4 |
STEM |
ASTM A182+F6a |
| 5 |
SEAT |
RTFE |
| 5a |
SEAT RETAINER |
ASTM A182-F316 |
ASTM A105+ENP |
| 6 |
O-RING |
FPM |
| 7 |
FIRE SAFE RING |
GRAPHITE |
| 8 |
SPRING |
INCONEL X 750 |
| 9 |
GASKET |
GRAPHITE |
| 10 |
NUT |
ASTM A194-8M |
ASTM A194-2H |
| 11 |
STUD |
ASTM A193-B8M |
ASTM A193-B7 |
| 12 |
ANIT-STATIC PRING |
INCONEL X750 |
| 13 |
GLAND |
ASTM A182-F316 |
ASTM A105+ENP |
| 14 |
TOP FLANGE |
ASTM A182-F316 |
| 15 |
GREASE NJECTION |
SS 316 |
AISI-1025+Zn |
| 16 |
VENT VALVE |
| 17 |
GREASE NJECTION |
| 18 |
DRAIN VALVE |
| 19 |
GEAR BOX |
- |
|
