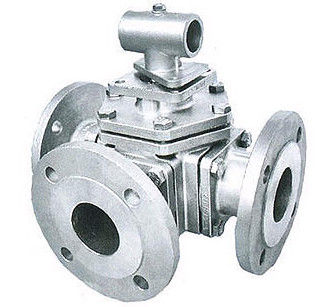

3 WAY-BALL VALVE L PORT T PORT
How do we ensure finished product quality (FQC inspection)
1. Visual Inspection
2. Material Grade Measurement
3. Dimension Inspection
4. Roughness Detection
5. Roughness Detection
6. Leakage Test
Specifications:
- L port / T port, 1/2"~6" (DN15~DN150)
- W. P.: PN16/40 CLASS 150/300 JIS 10k
- W. T.:-20℃ ~200℃ (-4℉~392℉)
- Investment casting
- Blow-out proof stem
- ISO 5211 Direct mouting pad
|
| ITEM |
PARTS |
MATERIAL |
| 1 |
BODY |
ASTM A351-CF8M |
ASTM A351-CF8 |
| 2 |
CAP |
| 3 |
BALL & STEM |
| 4 |
SEAT |
PTFE |
| 5 |
SEAL |
| 6 |
O-RING |
VITON |
| 7 |
GASKET |
PTFE |
| 8 |
PACKING |
| 9 |
GLAND RING |
AISI 304 |
| 10 |
SPRING WASHER |
| 11 |
CAP-C |
ASTM A351-CF8M |
ASTM A351-CF8 |
| 12 |
HANDLE HEAD |
ASTM A351-CF8 |
| 13 |
HANDLE SLEEVE |
PVC |
| 14 |
HANDLE |
AISI 304 |
| 15 |
HANDLE BOLT |
| 16 |
SLEEVE |
PTFE |
| 17 |
CAP-B BOLT |
AISI 304 |
| 18 |
CAP-B |
ASTM A351-CF8M |
ASTM A351-CF8 |
| 19 |
BOLT |
AISI 304 |
| 20 |
STOP PIN |
| 21 |
CAP-A BOLT |
| 22 |
CAP-A |
ASTM A351-CF8M |
ASTM A351-CF8 |
| 23 |
LOCKING WASHER |
AISI 304 |
| 24 |
HANDLE WASHER |
| 25 |
STEM NUT |
|
Design team: With professional design staff, Sample order is always welcomedSelect us :
- Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
- Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
- Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
