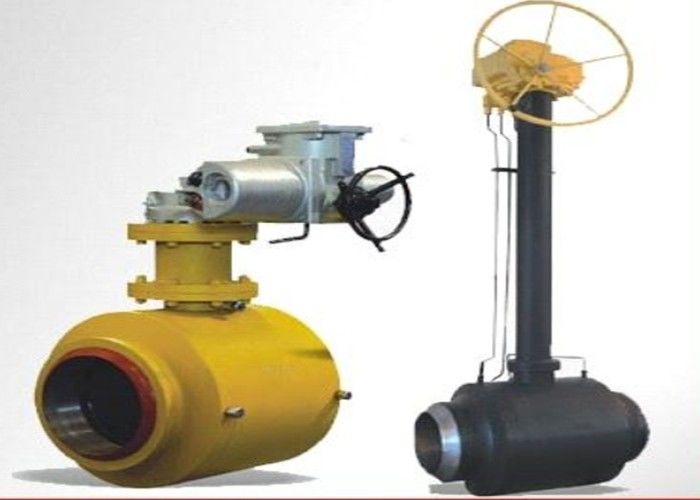

API 6D fully welded ball valve of 2"-56" CL150-2500 CS and SS ball valve
Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
Valves is famous for manufacturing fully welded ball valves in China market, we have made 56”CL600 fully welded ball valves for Iran market, a special technique was performed so that post welding heat treatment is not required so soft seals will not to be damaged during the welding process to make sure the seals good performance.
One-piece body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351,KS and API-6D.
| Size | NPS 2″~48″ |
|---|---|
| Pressure Rating | Class 150~1500 |
| Material | A105,LF2,F304,F316,F304L,F316L |
| Design & Manufacturing Standard | API 608,API 6D,BS 5351,ASME B 16.34 |
| Face to Face | ASME B 16.10,API 6D,DIN 3202 |
| End Connection | ASME B16.5,DIN 2543-2550,ASME B 16.25 |
| Test and Inspection | ISO5208,API 6D,BS 6755 |
| Operation Method | Manual,Worm Gear,Electric Actuator,Pneumatic Actuator |
Applicable Standards
DESIGN & MANUFACTURE CONFORM WITH: API 6D/ ISO 14313,ASME B16.34
CONNECTION DIMENSION CONFORMS WTIH: ASME B16.25,DIN EN 12627
FIRE RESISTANCE DESIGN CONFORMS WITH: API 607/ISO 10497
INSPECTION & TEST CONFORMS WITH: API 6D,ISO 5208,API 598
MATERIAL CONFORMS WITH: ISO 15156
Materials of parts
| 1 2 3 4 5 6 7 8 9 10 11 |
Body Left-right body Ball Seat Sealing ring O-ring Stem Seat grease injection valve Spring straight pin Blow-down vavle |
12 13 14 15 16 17 18 19 20 21 22 |
Ball lubricating bearing Screw Bonnet gasket Support cover Die holder Packing Terminal pad Spring pin Flat key Stem gasket Static-free spring |
Materials of parts
| Body Ball Seat Stem Sealing ring O-ring Screw Support cover Die holder Spring Bearing Gaske |
A105/LF2/F304/F316/F304L/F316L/F11/F22/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 PTFE/NYLON/PEEK/TEFLON VITON/NBR B7M/B8M/L7M/B16M A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 17-4PH/17-7PH/Inconel 304+PTFE/316+PTFE Flexible graphite+304/PTFE |
Technical parameters and characteristics:
| Product description | Fully welding ball valve |
| Model | Fully welding trunion forging ball valve |
| Nominal diameter | NPS 2”～NPS 48” |
| Operating temperature | -593℃～220℃(the range of service temperature may vary for different materials) |
| Operating pressure | CL150-CL1500 |
| Material | A105N, A182 F304, F304L, F316, F316L, A352 LF2, LF2, etc. |
| Design standard | API 6D,ASME B16.34 |
| Structural length | ASME B16.10 |
| Connecting end/td> | ASME B16.5,ASME B16.25 |
| Test standard | API 598, API 6D, ISO 5208 |
| Operation method | Handle, worm, motor-drive unit, pneumatic drive unit |
| Application fields | Oil and natural gas pipelines, and urban gas pipeline |
| Other remarks 1 | The valve seat is embedded with flexible seal ring for zero leakage of seal; the valve seat is provided with a preloaded spring that is adaptive to the variation of pressure and temperature, so leakage is not liable to happen. |
| Other remarks 2 | Integral valve with welded valve body, free of external leakage, etc. |
| Other remarks 3 | Fire resisting construction of all-welded ball valve. Each leakage position is designed with flexible graphite packing or stainless steel mixing graphite to satisfy the fire resisting requirements in case of a fire. |
| Other remarks 4 | The most advanced support plate structure both at home and abroad is adopted for large diameters to increase the service life and reduce the operating torque of valve. Thus, the service life of valves is greatly extended. |
| Other remarks 5 | The directly-buried all-welded ball valve can be buried directly, in which case, no high and large valve pit is required, only a small shallow pit needs to be built on ground, so the construction cost and the engineering time can be significantly saved. |
| Other remarks 6 | Full bore of valve convenient for pigging, of small flow resistance and high flow capacity and good flow characteristics |
| Other remarks 7 | The valve ball can completely enclose the valve seat when the all-welded ball valve is opened, so the impurities in the medium will not be flushed to the valve seat or the packing surface of valve body. Hence, the valve body has a same service life as the pipeline due to his special construction. |
