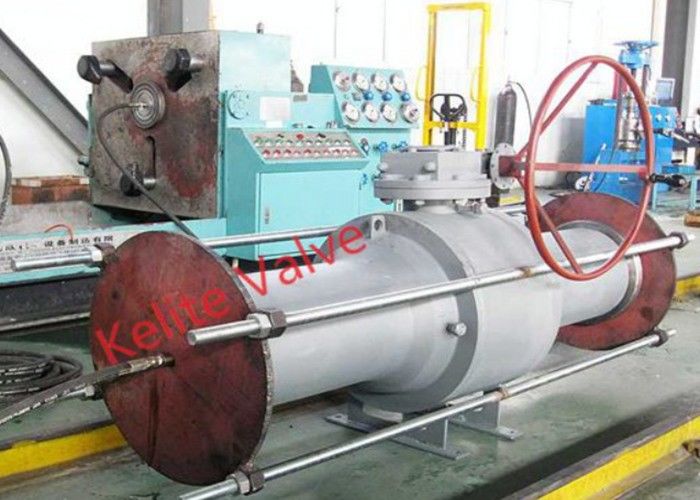

Fully welded ball valve of 2"-56" CL150-1500 trunnion or bearing plate design
One-piece body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351,KS and API-6D.
Service Type:
• Standard Temperature: -29°C to 220°C / -20°F to 428°F
• Low Temperature: -46°C to 150°C / -50°F to 302°F
• Cryogenic Temperature: -196°C to -593°C / -258°F to -620°F
• Subsea (Shallow & Deep Water)
• Underground
• High Temperature: Above 220°C / 428°F
Our service:
1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
Technical parameters and characteristics:
| Product description | Fully welding ball valve |
| Model | Fully welding trunion forging ball valve |
| Nominal diameter | NPS 2”～NPS 56” |
| Operating temperature | -593℃～220℃(the range of service temperature may vary for different materials) |
| Operating pressure | CL150-CL1500 |
| Material | A105N, A182 F304, F304L, F316, F316L, A352 LF2, LF2, etc. |
| Design standard | API 6D,ASME B16.34 |
| Structural length | ASME B16.10 |
| Connecting end/td> | ASME B16.5,ASME B16.25 |
| Test standard | API 598, API 6D, ISO 5208 |
| Operation method | Handle, worm, motor-drive unit, pneumatic drive unit |
| Application fields | Oil and natural gas pipelines, and urban gas pipeline |
| Other remarks 1 | The valve seat is embedded with flexible seal ring for zero leakage of seal; the valve seat is provided with a preloaded spring that is adaptive to the variation of pressure and temperature, so leakage is not liable to happen. |
| Other remarks 2 | Integral valve with welded valve body, free of external leakage, etc. |
| Other remarks 3 | Fire resisting construction of all-welded ball valve. Each leakage position is designed with flexible graphite packing or stainless steel mixing graphite to satisfy the fire resisting requirements in case of a fire. |
| Other remarks 4 | The most advanced support plate structure both at home and abroad is adopted for large diameters to increase the service life and reduce the operating torque of valve. Thus, the service life of valves is greatly extended. |
| Other remarks 5 | The directly-buried all-welded ball valve can be buried directly, in which case, no high and large valve pit is required, only a small shallow pit needs to be built on ground, so the construction cost and the engineering time can be significantly saved. |
| Other remarks 6 | Full bore of valve convenient for pigging, of small flow resistance and high flow capacity and good flow characteristics |
| Other remarks 7 | The valve ball can completely enclose the valve seat when the all-welded ball valve is opened, so the impurities in the medium will not be flushed to the valve seat or the packing surface of valve body. Hence, the valve body has a same service life as the pipeline due to his special construction. |
