On Off Type Water Control Valve , Resilient Seated Gate Valve WRAS Approval
-
Highlight
water pressure valve
-
MeidaWater, Sewage Water
-
StandardEN1074-2, BS5163
-
MaterialDuctile Iron
-
ColorBlue RAL5010
-
RubberWRAS Approved EPDM
-
Stainless SteelSS420, SS431
-
Place of OriginChina
-
Brand NameOEM
-
CertificationEN1074-2, ISO9001
-
Model NumberGBBX, GBHX, GBCX
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order

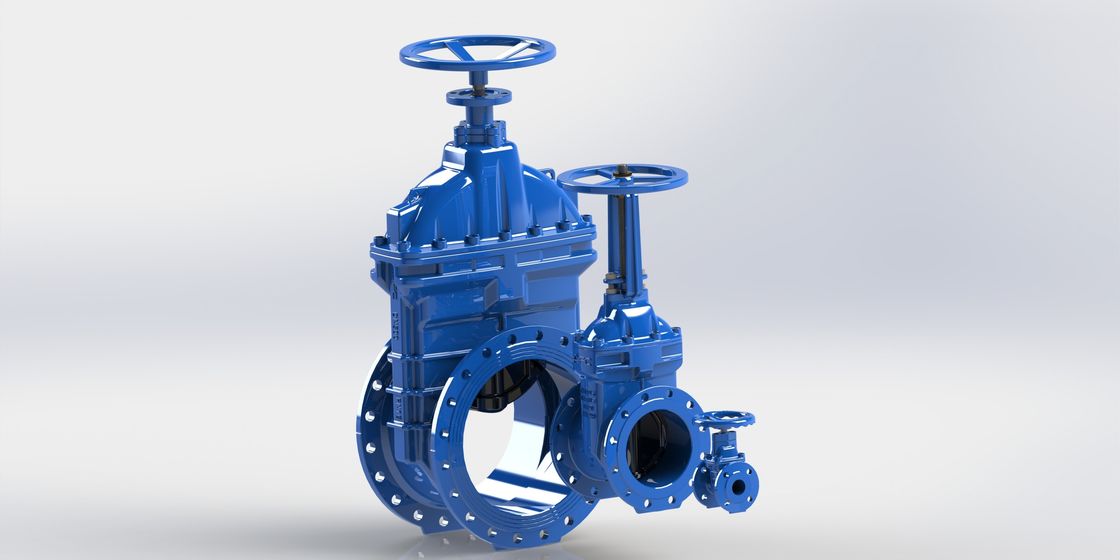

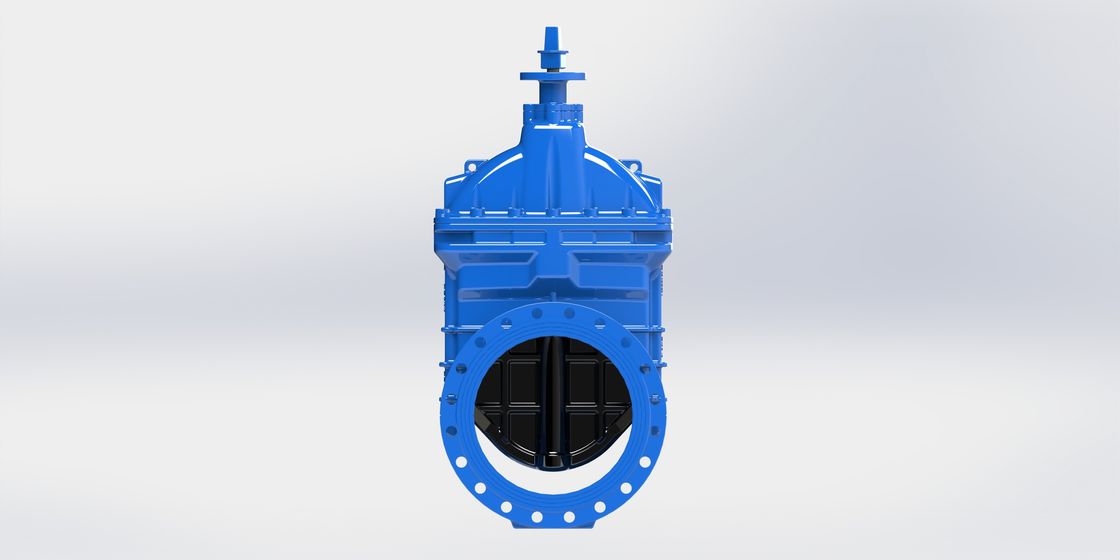

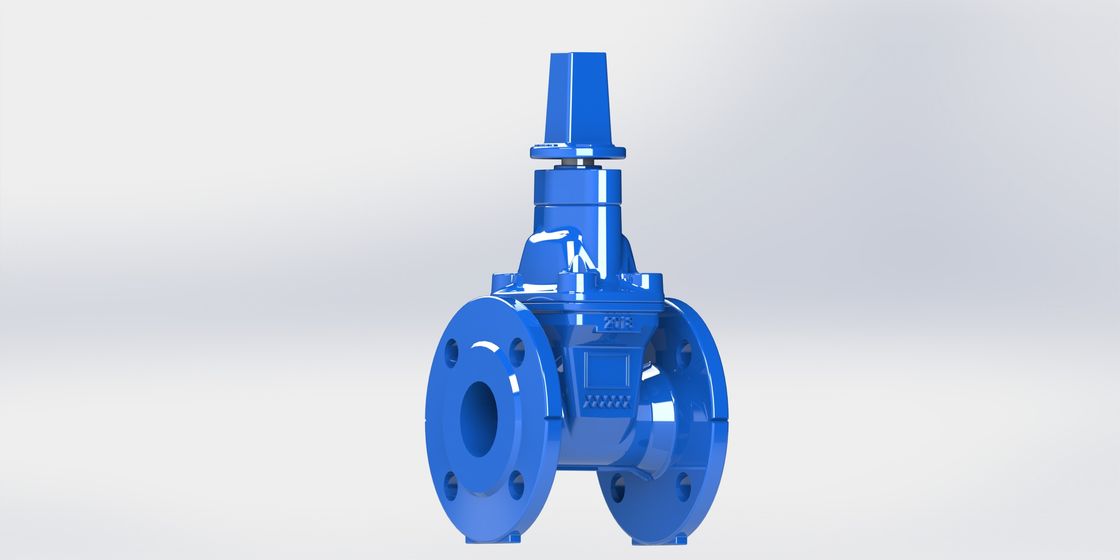

On Off Type Water Control Valve , Resilient Seated Gate Valve WRAS Approval
On Off Type Water Control Valve Resilient Seated Gate Valve WRAS Approval
The AFC Resilient Seated Gate Valve is fully compliant to BS EN 1074-2 and include WRAS approved materials. Its lightweight design construction of ductile iron offers a robust and durable extended life performance.
The valve is suitable for use in a wide range of applications including potable water, irrigation, fire systems etc, in either above ground or buried service applications and requires minimal maintenance. AFC Resilient Seated Gate Valves have a rated working pressure of 10Bar, 16 Bar and 25 Bar The valves seal 100% leak tight. The waterway is clear, unobstructed and free from pockets. Resilient seated gate valves are fusion bonded epoxy coated both on the interior as well as the exterior surfaces of the valve, flange surfaces are also fully epoxy coated.
How do we ensure finished product quality (FQC inspection)
1. Visual Inspection
2. Material Grade Measurement
3. Dimension Inspection
4. Roughness Detection
5. Roughness Detection
6. Leakage Test
Material:
| Valve Body | DI GJS500-7 |
| Valve Bonnet | DI GJS500-7 |
| Valve Gland | DI GJS500-7 |
| Wedge | DI GJS500-7 with fully vulcanized EPDM |
| Stem | SS420/SS431 |
| Stem nut | Brass/Bronze |
| O-ring | NBR |
Dimension:
