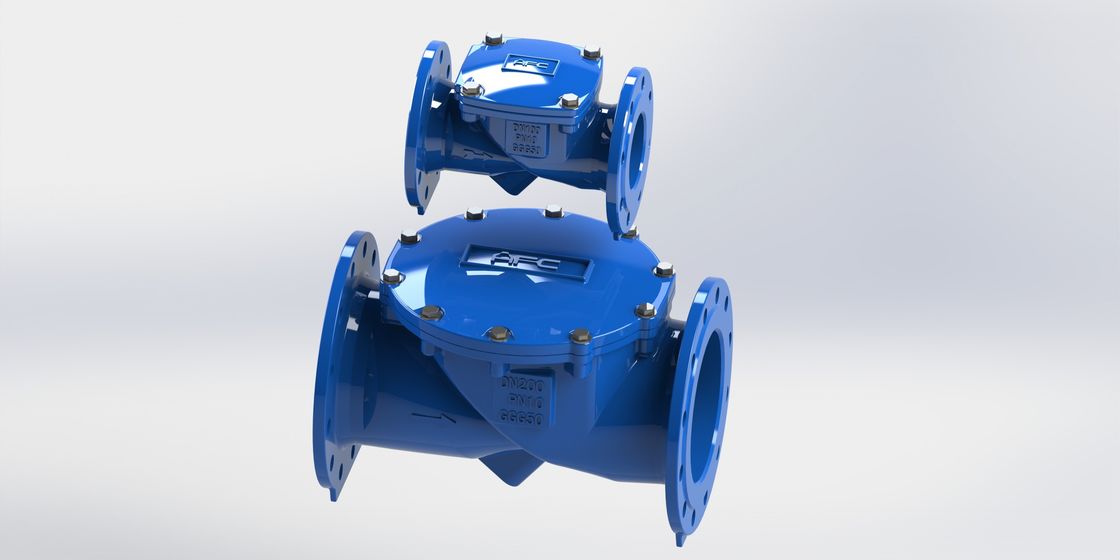

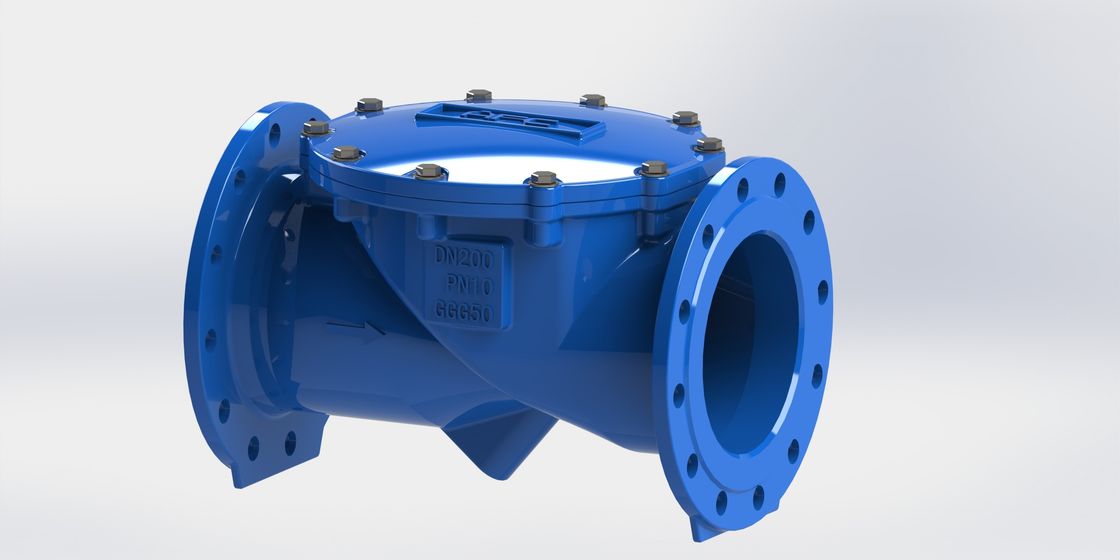

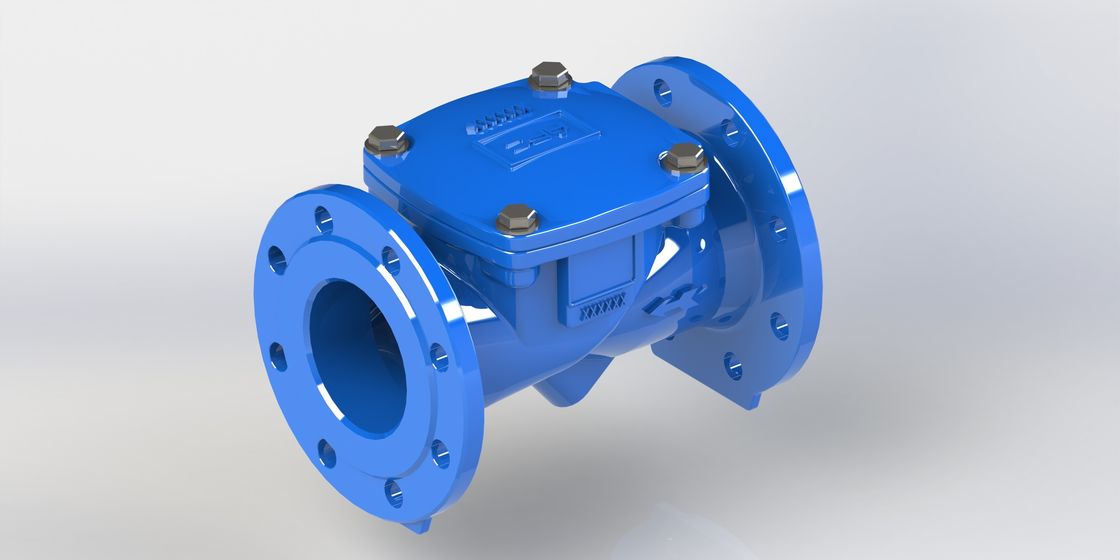

Water Control Valve For Back Flow Swing Flex Check Valve Nylon Reinforcement Disc With EPDM
How do we ensure finished product quality (FQC inspection)
1. Visual Inspection
2. Material Grade Measurement
3. Dimension Inspection
4. Roughness Detection
5. Roughness Detection
6. Leakage Test
Features:
Simple design disc w/o movable components
Over 50,000 cycles operations
No rusting-long service
40 degree incline angle-lower stroke and reduce water hammer and slamming.
Almost half stroke of traditional check valve.
Keep 100% full flow area, reduce head loss.
Technical Data:
| Size | DN50-DN600 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Water and Waste Water |
Description:
RDCV, Rubber Disc Check Valve, is a fully encapsulated resilient disc seat, double flange swing check valve for reliable reverse flow prevention, good for both clean water/sewage applications. It is a 40 degree angle declined seat which can help quick closure and minimize the water hammer and slamming.
General Applications:
For general water supply, fire fighting,HVAC/ cooling & sewage system.
| Quality System | |
| IQC | Check call incoming parts |
| IPQC | Check the production process is qualified |
| FQC | All valves are pressure tested |
| OQC | Check the valve ourlook and packing |
Material:
