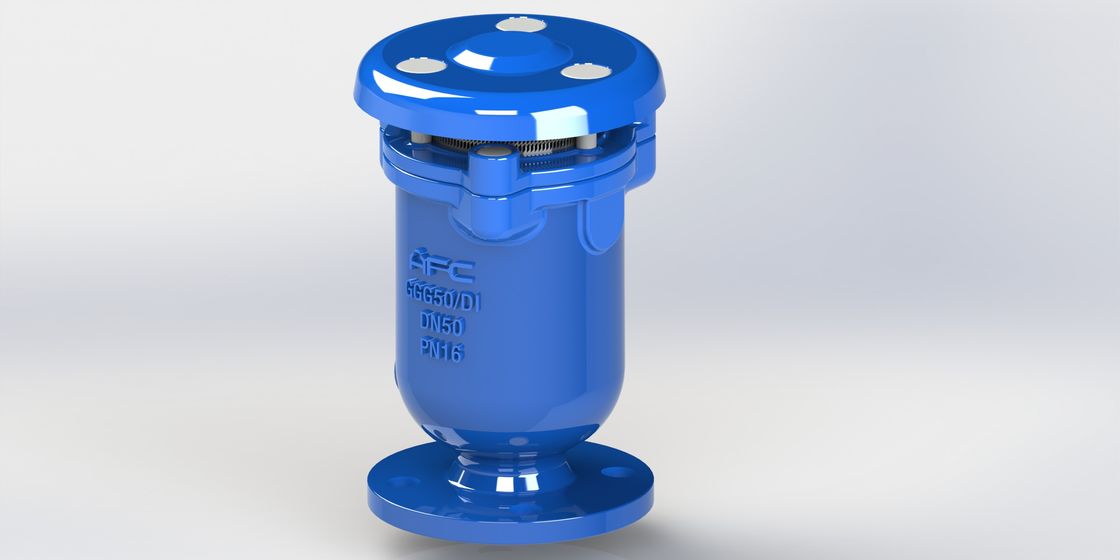

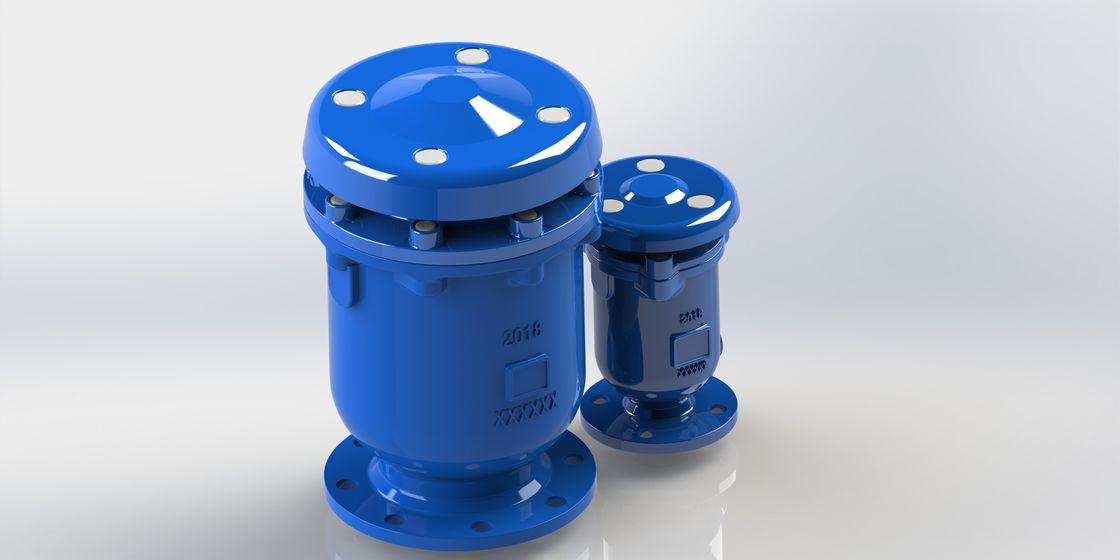

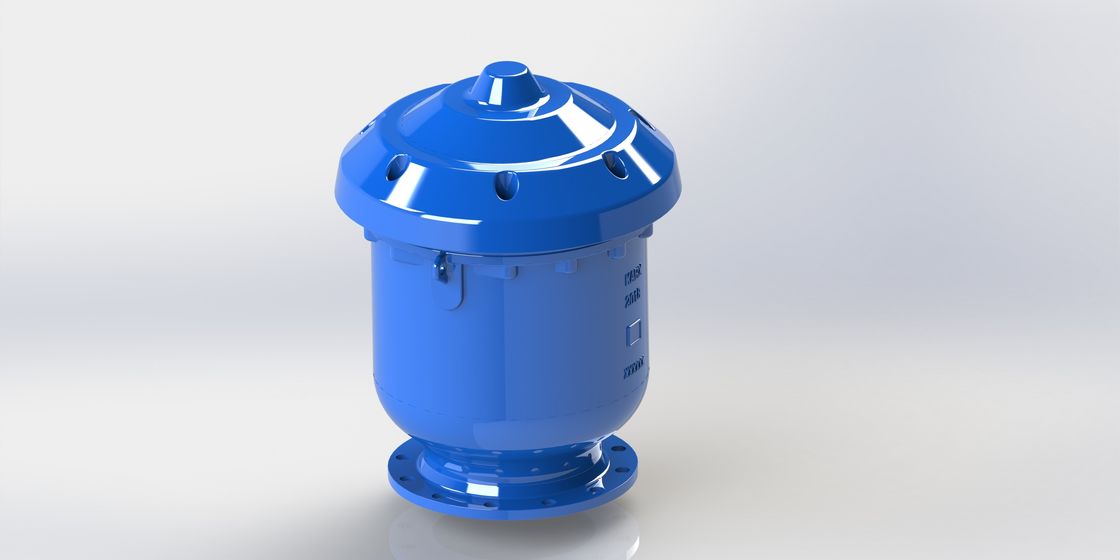

SS304 Internal Parts Comnination Triple Function Air Release Valve



Forming Machine Process



1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly



Technical Data:

Size range:DN 25-300MM
Pressure ratings:1.0Mpa, 1.6Mpa(Thread)
1.0Mpa,1.6Mp,2.5 Mpa(Flange)
Working temperature: -10°-80°C.
Flow media: clean water



Features:

. Advanced design with simple mechanism, strong float to prevent cracking during sudden water hammer& quick closure.
. Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
. No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
. Smooth cage outside of the float, keep float moving in specified guide rail.
. Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
. Outside stanless steel screen will be an option for safety and prevent insects or birds in.
. Fully epoxy coated inside and outside for long term services.
. Manufacturing standard meets BS EN1074-4, AWWA C512
. Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.

Service Fields:

For water system, fire fighting, irrigation system.


Size Selection Table:



Water flow rate range Max CMH	760	1360	4160	8500	19100	33400	76300
Main pipeline size mm	80-300	200-400	400-700	750-1000	1050-1500	1500-2000	2100-3000
Inlet size of KARX mm	25	50	80	100	150	200	300
bore of outlet mm	50	75	95	130	170	230	330
small orifice size mm	1.6	1.6	2	2.5	3	4	4





Material List:



KARS ( Thread Type DN25-DN50)



No.	Part Name	Material	Standard
1	Body	Ductile Iron	EN GJS500-7
2	Float	Stainless Steel	ANSI304
3	Sealing Arc	Stainless Steel	ANSI304
4	Hex Bolt	Carbon Steel/ Stainless Steel	Zinc Coated/AISI304
5	Cover	Carbon Steel	Epoxy Coated
6	Screen	Stainless Steel	ANSI304
7	Buffer	Rubber	NBR/EPDM
8	Guide Barrel	Stainless Steel	ANSI304
9	Nozzel Seat	Rubber	NBR/EPDM
10	Seat	Rubber	NBR/EPDM
11	O-ring	Rubber	NBR/EPDM
12	Bonnet	Ductile Iron	EN GJS500-7
13	Pillar	Aluminium	Commercial
14	Hex Bolt	Carbon Steel/ Stainless Steel	Zinc Coated/AISI304
15	Washer	Stainless Steel	ANSI304
16	Small Nozzle	Stainless Steel	ANSI304





KARX ( Flange Type DN50-DN300)



No.	Part Name	Material	Standard
1	Body	Ductile Iron	EN GJS500-7
2	Float	Stainless Steel	ANSI304
3	Sealing Arc	Stainless Steel	ANSI304
4	In Hex Bolt	Carbon Steel/ Stainless Steel	G.I/AISI304
5	Bonnet	Ductile Iron	EN GJS500-7
6	Cover	Carbon Steel	ANSI304
7	Screen	Stainless Steel	ANSI304
8	Hex Bolt	Carbon Steel/ Stainless Steel	G.I/AISI304
9	Washer	Stainless Steel	ANSI304
10	Pillar	Aluminium	Commercial
11	O-ring	Rubber	NBR/EPDM
12	Seat	Rubber	NBR/EPDM
13	Nozzel Seat	Rubber	NBR/EPDM
14	Guide Barrel	Stainless Steel	ANSI304
15	Buffer	Rubber	NBR/EPDM
16	Small Nozzle	Stainless Steel	ANSI304







Dimension:



KARS ( Thread Type DN25-DN50)







KARX ( Flange Type DN50-DN300)







Air Flow Characteristic



Large Air Exhausting



Air Intake





Small air venting
