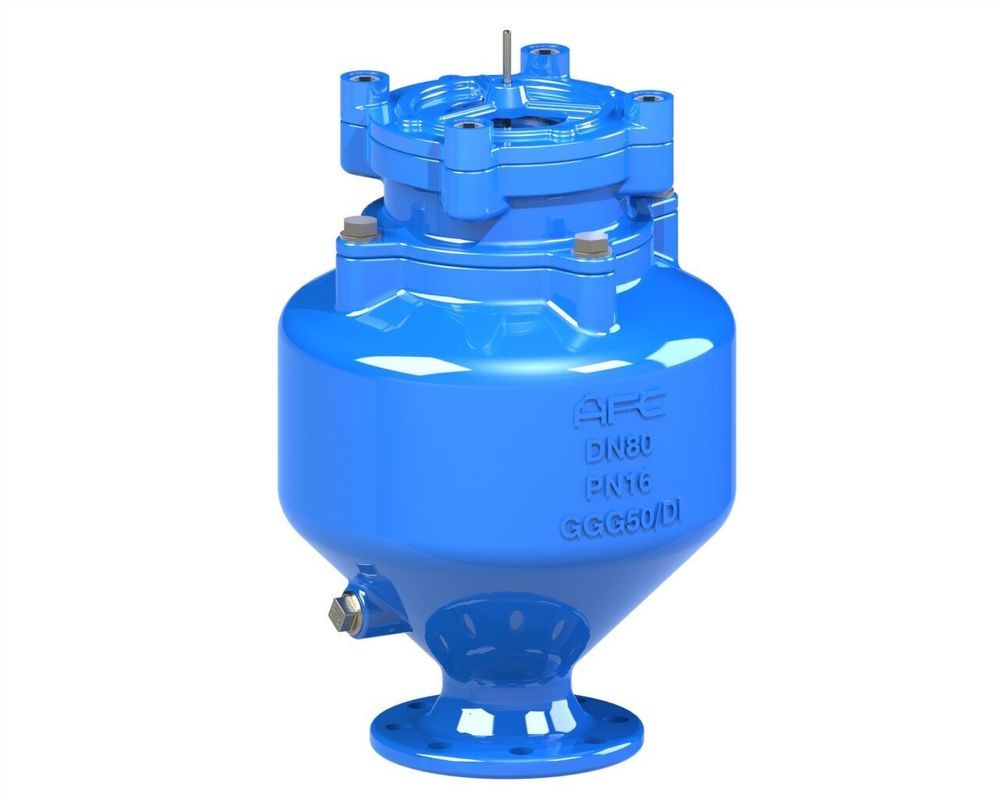

Full Flow Area EN1074-4 Combination Sewage Air release valve Single Body Triple Function Flange Type
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
Technical Data:

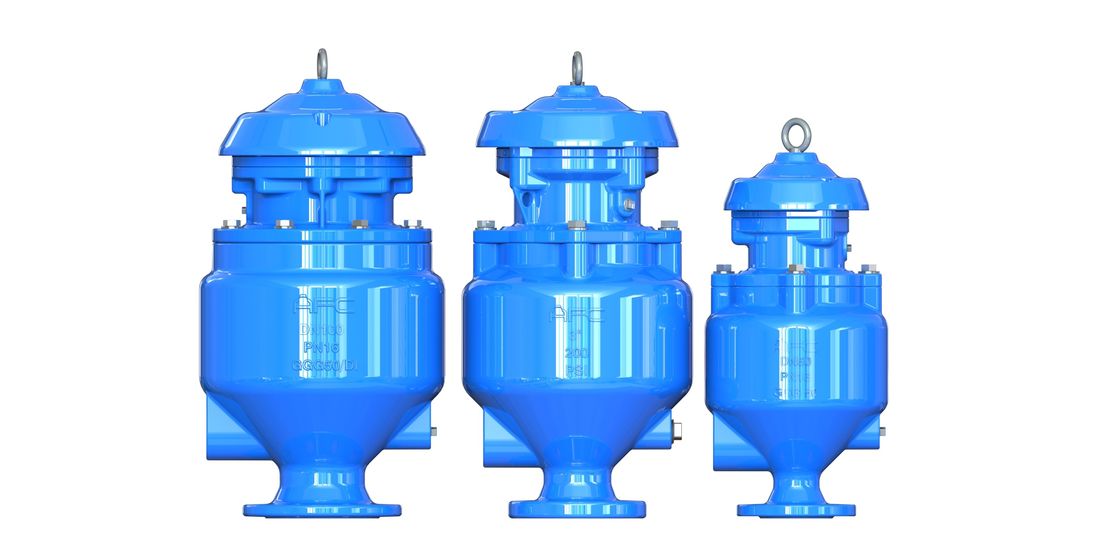

Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.

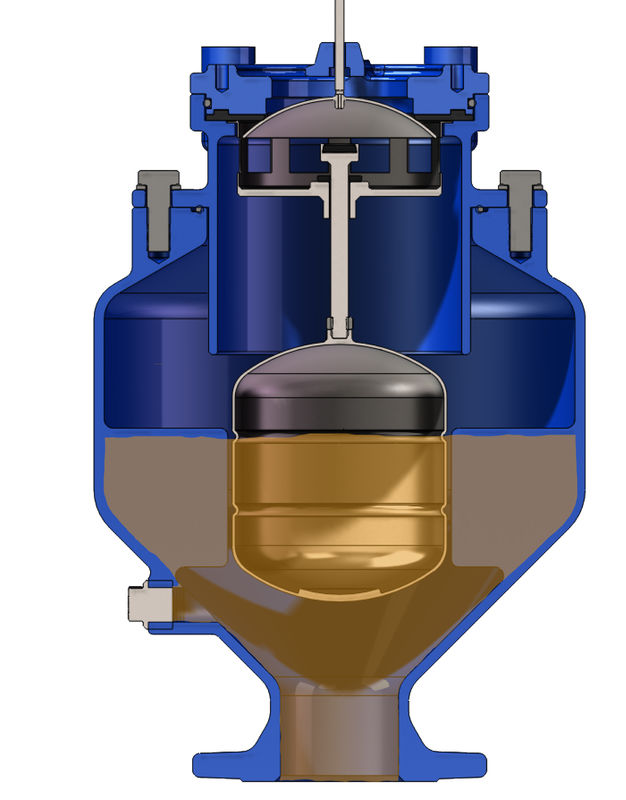

. Advanced design with simple mechanism, strong float to prevent cracking during sudden water hammer & quick closure.
. Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
. With special fat body design to lower the sewage water flow speed, and let the air out but keep sewage water underneath.
. Keep dirty or corrosive liquid inside the body for safety during operation and no harm to human & surrounding environment
. Internal body guide and upper round wall keep float moving on its rail and keep liquid turbulence flow within this area.
. Much bigger air flow through the nozzle even for higher viscosity liquid.
. Outside screen will be an option for safety and prevent insects or birds in.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard meets BS EN 1074-4, AWWA C512. Flange drilling and dimension meets BS EN 1092 and ANSI flange.
Service Fields:
For sewage water system.
| Quick Selection Table | |||||
| Water Flow Rate CMH |
1360 | 4160 | 8500 | 19100 | 33400 |
| Main pipe size MM |
80-400 | 400-700 | 750-1000 | 1050-1500 | 1500-2000 |
| Size of SKAR MM |
50 | 80 | 100 | 150 | 200 |
Material:
Dimension:
