Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer

Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer

Products - Sewage Air Release Valve
  • Highlight

    water supply valve

  • Material
    Ductile Iron GJS500-7
  • Internal Parts
    SS316
  • Coating
    Fushion Bonded Epoxy
  • Flow Area
    Full Flow Area
  • Color
    RAL5010
  • Specialty
    Spill Free
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO9001-2015
  • Model Number
    SKAR
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

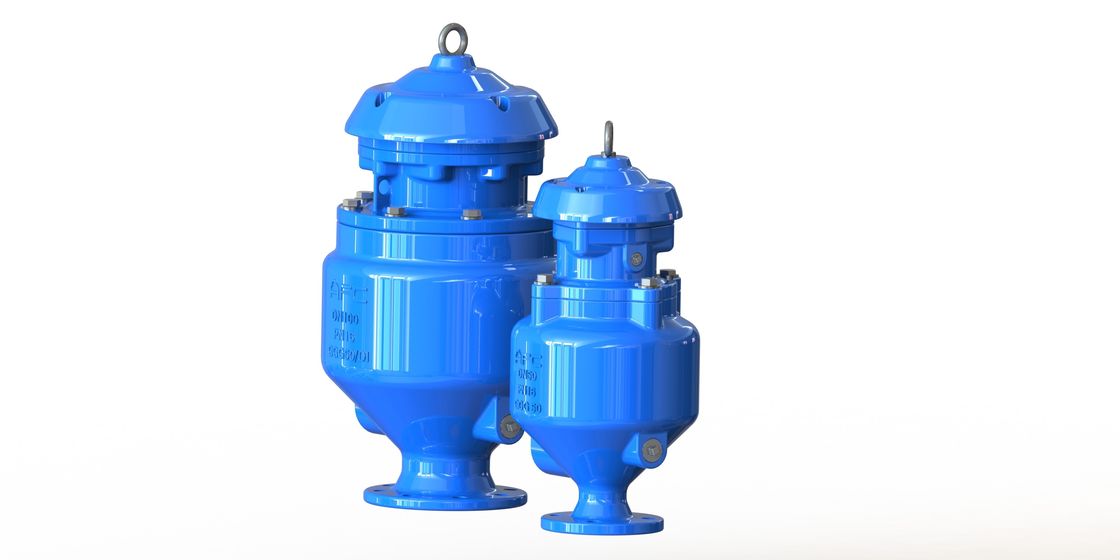

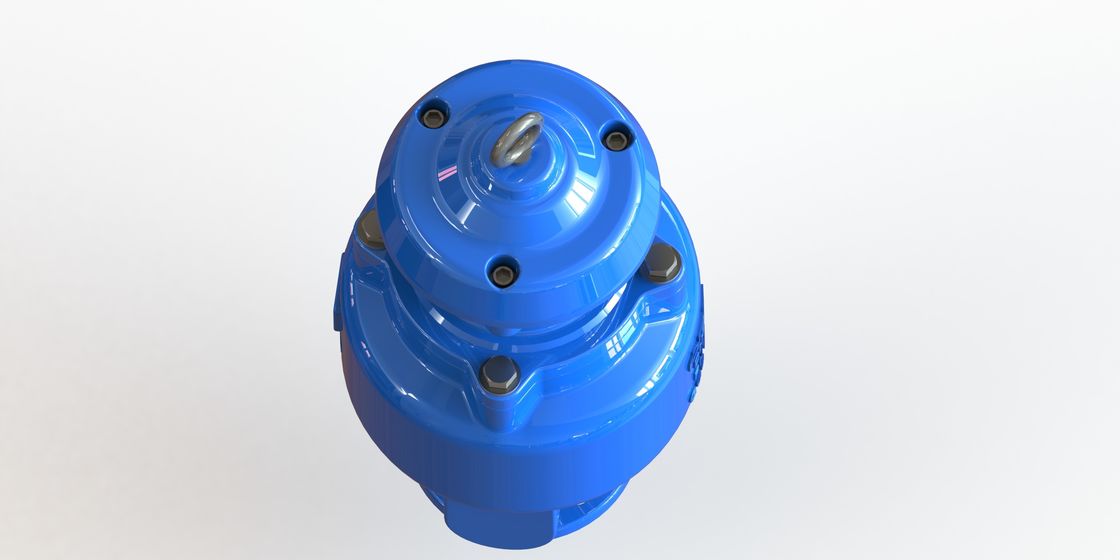

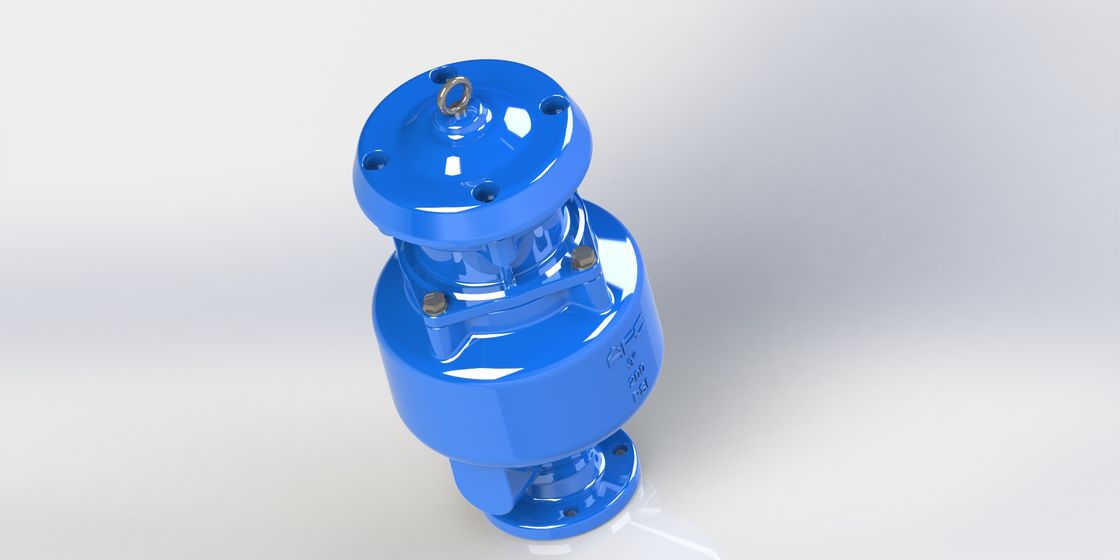

Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer

  • Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer
  • Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer
  • Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer
Get Price Contact Now

Waste Water Triple Function Full Flow Area SS316 Internals Single Chamber Sewage Combination Air Release Valve

​​





How do we ensure finished product quality (FQC inspection)



1. Visual Inspection

2. Material Grade Measurement

3. Dimension Inspection

4. Roughness Detection

5. Roughness Detection

6. Leakage Test



Description:



In sewage water, additional gas will accumulate because of all kinds of gas or air  to ventilate the waste water. In case to protect the transmission efficiency, SKAR - sweage air release valve is necessary to install for venting the air in pipeline. Air release takes place at high points, on long ascending and descending pipe sections, downstream of pumps, upstream of restrictions.



Technical Data:


Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.



Features:



. Manufacturing standard : BS EN1074-4, AWWA C512
. Flange drilling and dimension : BS EN 1092 and BS EN 558 and ANSI flange.

• 100% -full flow area thru the valve internal.
• Can blow off the water on top of the sealing arc thru small orifice and keep it dry to prevent polluted water coming into pipeline during vacuum.
• Most parts of valves can be recycled.
• All internal parts are 316SS material without rusting.
• Float with a rubber sealing on top, provide better sealing ( larger buoyancy ) effect on small orifice.
• Float with a rubber sealing can be as an absorber to prohibit water hammer direct acting on the sealing arc and seat impact.

. Spill Free.
. Advanced design: Simple mechanism and strong float to prevent cracking during sudden water hammer& quick closure.

. Float movement support by both cage and body guide
. Fast water rising on the back of middle part, prevent direct flushing up to top and out of main body.

. No arms or levers to prevent vibrating, bending, direct closure of the float.
. Fully fusion epoxy coated inside and outside of valve body for long term services.

.  Wider middle body, shorter in height.
.  Slow down the flow velocity, keep sewage in the body.

.  Drain boss at the top & bottom for cleaning.



Service Fields:


For sewage water system.





Quick Selection Table
Water Flow Rate
CMH		 1360 4160 8500 19100 33400
Main pipe size
MM		 80-400 400-700 750-1000 1050-1500 1500-2000
Size of SKAR
MM		 50 80 100 150 200



Material:

Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer 0



Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer 1





Dimension:

Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer 2

Corrosion Resistant Wastewater Air Release Valve For Prohibiting Water Hammer 3
