Highlight
float valve for water storage tank
-
MaterialDuctile Iron GJS500-7
-
Pilot MaterialSS304
-
TubingSS304
-
CoatingEPOXY
-
DiaphragmNylon Reinforcement With EPDM
-
RubberEPDM
-
Place of OriginChina
-
Brand NameOEM
-
CertificationEN1074-5
-
Model NumberA100
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order

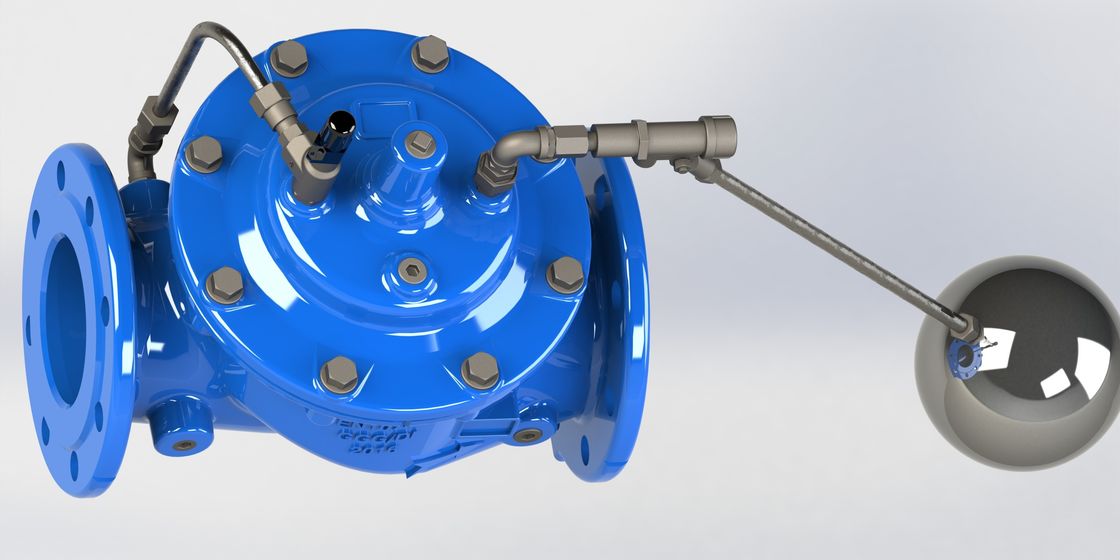

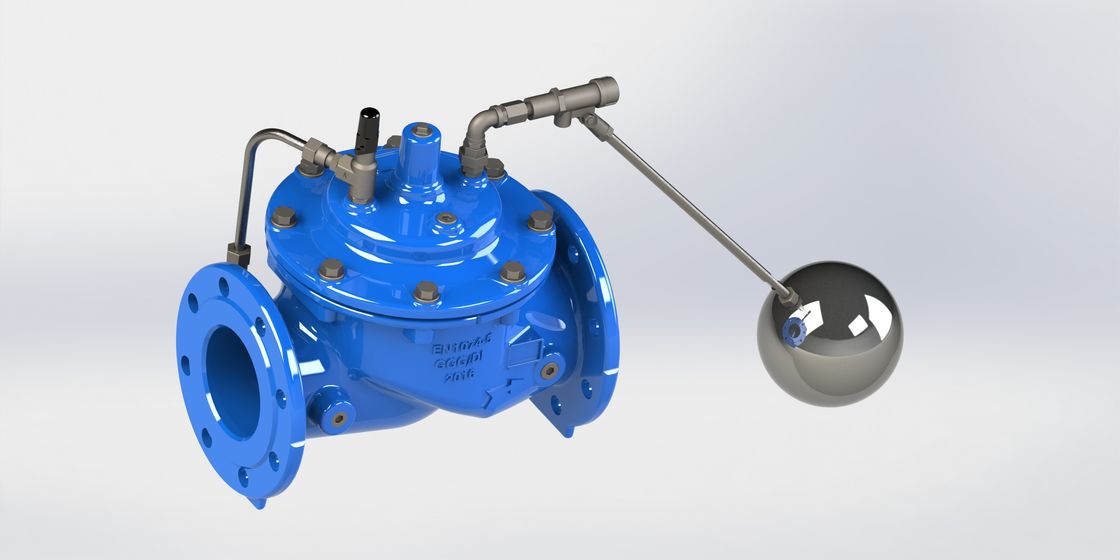

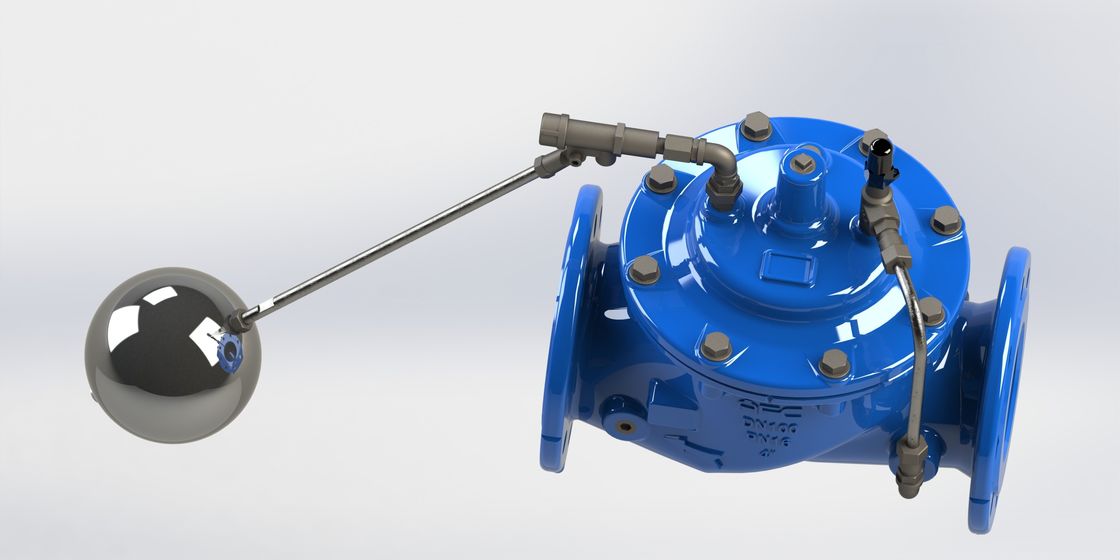

On - Off Control Float Control Valve With Stainless Steel 304 Pilot
A100 Modulating Float Control Valve EPOXY Coated Ductile Iron Main Valve SS304 Pilot
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
A100 is a remote float control valve which consists of
1. Main valve
2. Plus a float control pilot-P100
3. Installed the complete valve set on the top of tank or main valve and pilot separate- remote control
4. On - off control
5. When water level decrease the float drop , main valve open, water start to flow in
6. When float reaches high water level, close the main valve
Service Fields:
For water system, irrigation system.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
