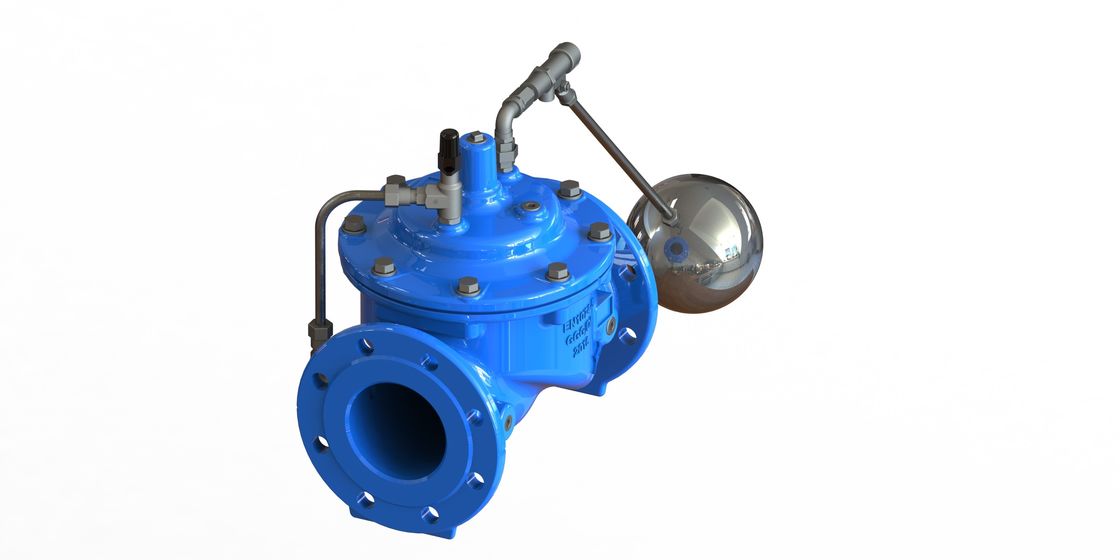

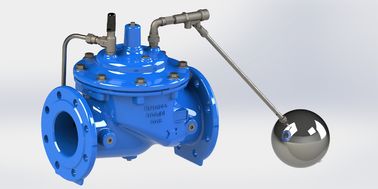

Ductile Iron Main Valve A100 Modulating Float Control Valve EPOXY Coated SS304 Pilot
Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Float Valve maintains a relatively constant level in storage tanks and reservoirs by admitting flow into the tank in direct proportion to the flow out of the tank. It is a hydraulically operated, pilot controlled, diaphragm valve. The float operated pilot control is installed at the high liquid level in the reservoir and is connected via tubing or pipe to the main valve. As the liquid level changes, the float control proportionally opens or closes the main valve, keeping the liquid level nearly constant.
Service Fields:
For water system, irrigation system.
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
