SS 316L Sanitary Butterfly Valve , Pneumatic Operated Tri Clamp Butterfly Valve
-
Highlight
hygienic butterfly valves
-
ActuatorAluminium Pneumatc Actuator
-
Material304 Or 316L Stainless Steel & EPDM Or PTFE
-
Connection EndTri Clamp
-
Size1” - 12”, DN25-DN300
-
Clamp Standardking PressureDIN11864, DIN11853, DIN32676, ISO2852, SMS3017, ASME BPE, BS4825
-
Used ForFlow Control On Food, Pharmacy, Water, Diary, Beverage, Wine, Chemical Fluid
-
Place of OriginChina
-
Brand NameOEM
-
CertificationCE, 3A, ISO9001, FDA
-
Model NumberCX-SBTY-008
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order

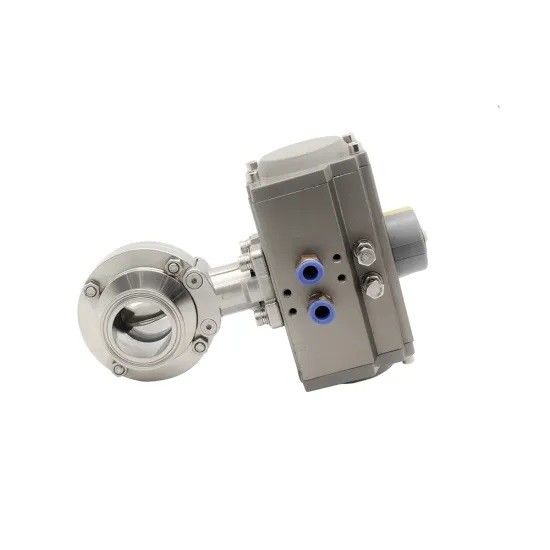

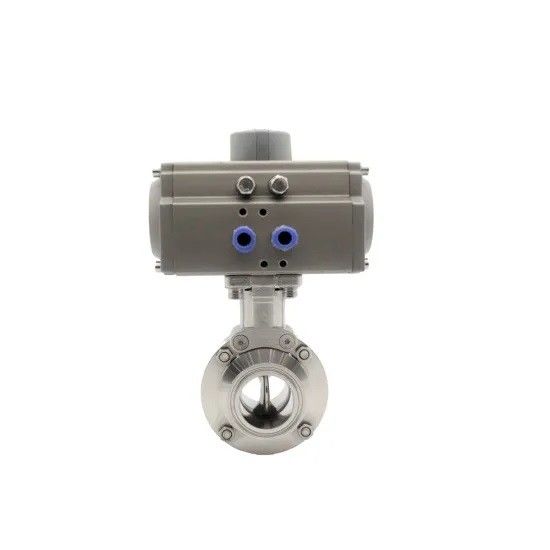

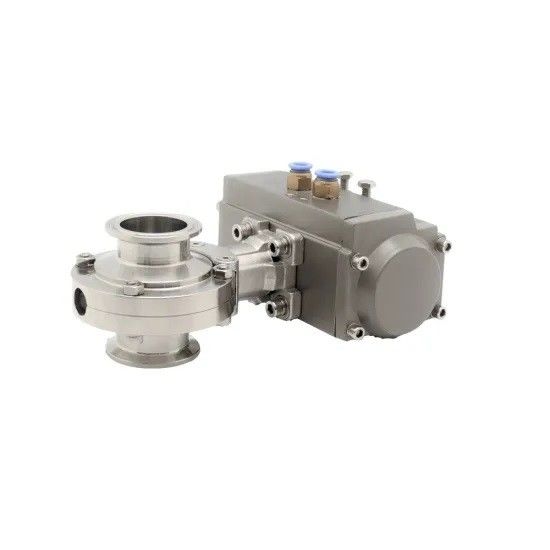

SS 316L Sanitary Butterfly Valve , Pneumatic Operated Tri Clamp Butterfly Valve
Stainless Steel 316L Sanitary Hygienic Pneumatic Actuator Tri Clamped Butterfly Valve
1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Technical Parameters
Technical Parameters
| Standard | 3A,SMS,DIN,ISO,RJT,IDF | |
| Product wetted steel parts | AISI304/AISI316L | Provided with material inspection report |
| Other steel parts | AISI304 | |
| Size | 1/2"~8",DN15~DN200 | |
| Seal material | EPDM/VMQ/FPM | All seals material comply with FDA21CFR117.2600 |
| Working pressure | ≤10bar(145psi) | |
| Supply pressure for air actuator | 5~8(0~116psi) | |
| Working temperature | EPDM:-14~248ºF(-10~120ºC) | |
| VMQ:-58~356ºF(-50~180ºC) | ||
| FPM:22~446ºF(-30~230ºC) | ||
| Other materials are avaible upon request | ||
| Sterilization temperature | 302ºF(150ºC,max 20min) | |
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | |
| Inside surface treatment | Ra32~64uin(o.8~1.6um) | |
| Connetion ends | butt-weld,clamped ends,male ends, flange ends | |
| Pneumatic head | Normally closed(NC)-Air to open,spring to close | |
| Normally open(NO)-Air to close,spring to open | ||
| Air to air(AA)-Air to open,air to close | ||
Options
1. The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3. Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4. Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5. Control: position sensor, C-top controller, C-top controller (AS-I)
Design Features
1. Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2. Available in sizes from DN25 / 1" to DN300 / 12"
3. Multiposition handles can be used for valves up to DN100 / 4";
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5. pneumatic actuator and electric actuator are interchangeable.
6. Seals comply with FDA 21CFR 177. 2600.
7. The valve body can be customized with a wide selection of different connections.
