Male Threaded Hygienic Butterfly Valve For Food And Beverage Pipeline System

Male Threaded Hygienic Butterfly Valve For Food And Beverage Pipeline System

Products - Sanitary Butterfly Valve
  • Highlight

    stainless steel butterfly valve

  • Material
    Stainless Steel 316L
  • Hygienic Grade
    Food Grade
  • End Connection
    Weld, Clamp, Male, Female, Flange,
  • Medium
    Food, Beverage, Water, Dairy, Pharmacy, Chemical, Pharmaceutical Industry, Etc
  • Name
    Hygienic Butterfly Valve
  • Usage
    Stainless Steel Pipeline System
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    DIN, 3A, SMS, ISO/IDF,etc...
  • Model Number
    CX-S3WBTY-001
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

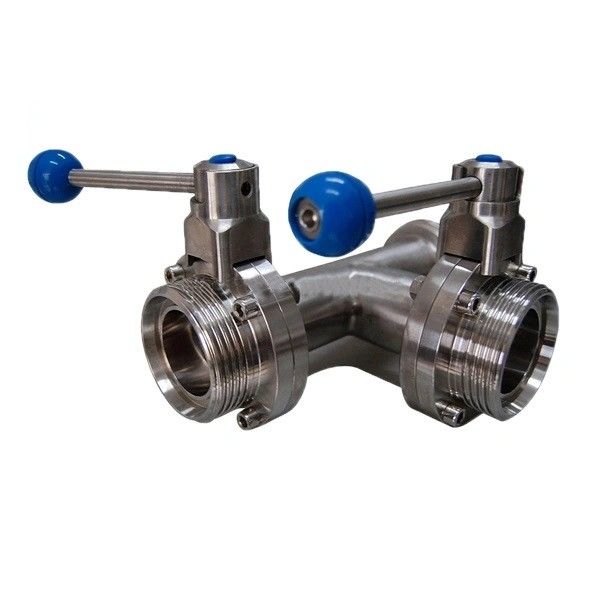

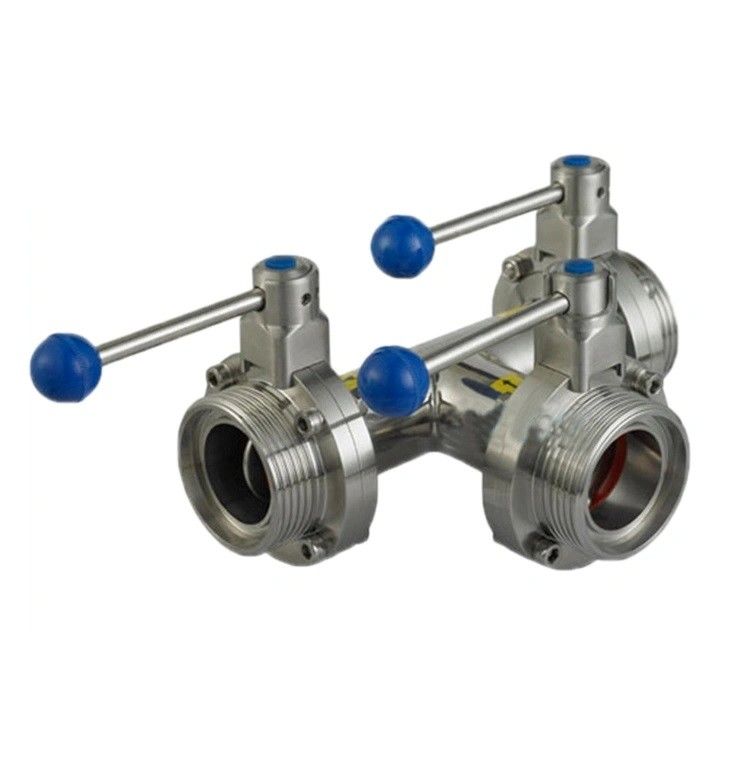

Male Threaded Hygienic Butterfly Valve For Food And Beverage Pipeline System

  • Male Threaded Hygienic Butterfly Valve For Food And Beverage Pipeline System
  • Male Threaded Hygienic Butterfly Valve For Food And Beverage Pipeline System
  • Male Threaded Hygienic Butterfly Valve For Food And Beverage Pipeline System
Get Price Contact Now

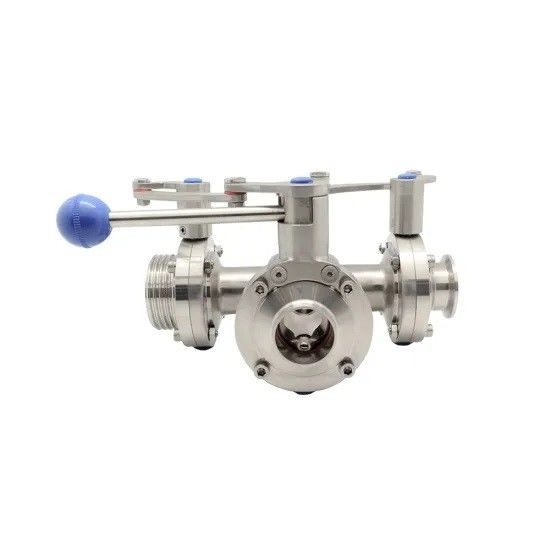

Sanitary Hygienic Butterfly Valve Stainless Steel Food Grade Male Thread 3 Way


How do we ensure finished product quality (FQC inspection)



1. Visual Inspection

2. Material Grade Measurement

3. Dimension Inspection

4. Roughness Detection

5. Roughness Detection

6. Leakage Test



Technical Parameters

SPECIFICATIONS
Product Name:

Hygienic Sanitary Stainless Steel Food Grade Male Thread 3 Way Butterfly Valve with Pulling Handle
Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN15-DN300, 1/2"-12"
Availably connection: Clamp / weld / thread/ weld thread/ flange
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual,Pneumatic, E lectric
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Packaging Details: Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery d etails:

Usually within 20 days after receiving T/T down payment.





Application:


The series of this valve is a kind of sanitary manual which are widely used in stainless steel pipeline system to control and regulate medium flow.

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.


Design Features

1. Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2. Available in sizes from DN25 / 1" to DN300 / 12"
3. Multiposition handles can be used for valves up to DN100 / 4";
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5. pneumatic actuator and electric actuator are interchangeable.
