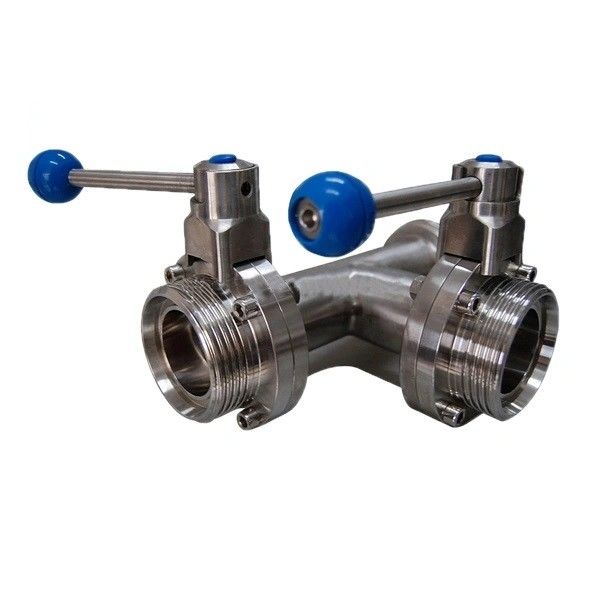

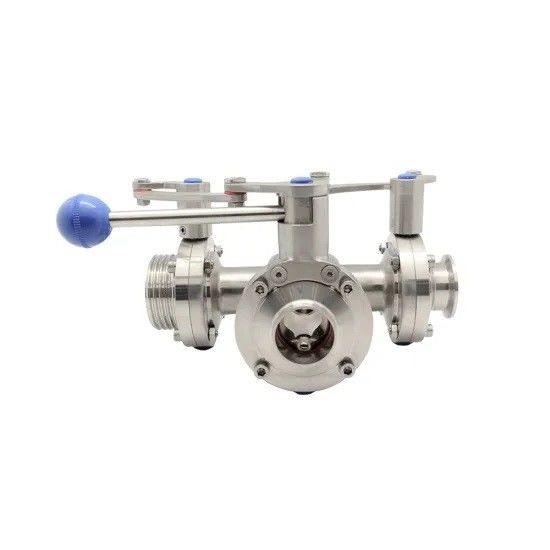

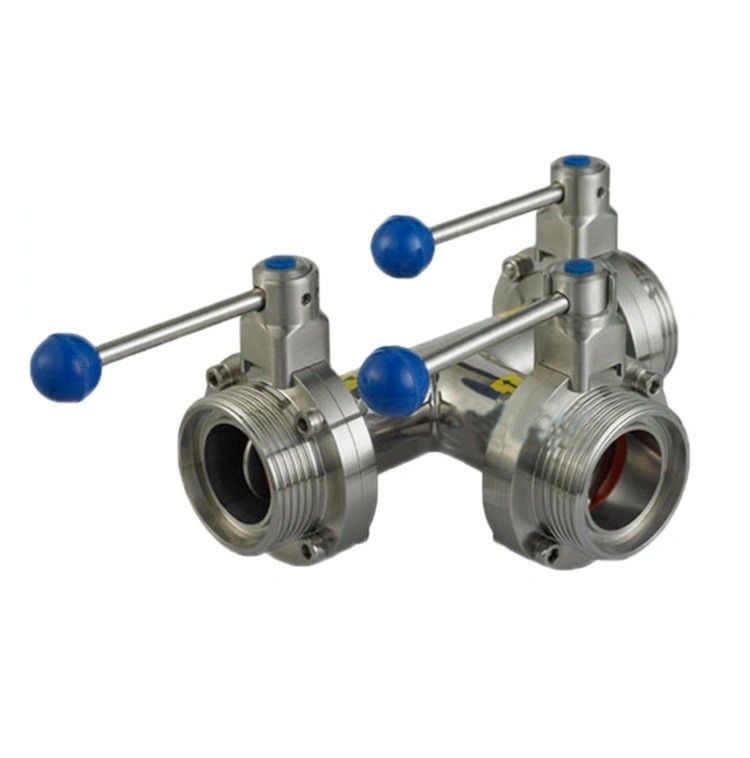

Sanitary Stainless Steel 304/316L Three-Way Thread Three Pulling Handle Butterfly Valve
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Design Features
1. Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2. Available in sizes from DN25 / 1" to DN300 / 12"
3. Multiposition handles can be used for valves up to DN100 / 4";
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5. pneumatic actuator and electric actuator are interchangeable.
6. Seals comply with FDA 21CFR 177. 2600.
7. The valve body can be customized with a wide selection of different connections.
Service
1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
Technical Parameters
| Product Name: |
Hygienic Sanitary Stainless Steel Food Grade Male Thread 3 Way Butterfly Valve with Pulling Handle
|
| Valve Body Material: |
1.4404/1.4301, SS304/SS316L |
| Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: |
10Bar |
| Max. Working Temperature: |
120 degree C |
| Availably size: |
DN15-DN300, 1/2"-12" |
| Availably connection: |
Clamp / weld / thread/ weld thread/ flange |
| Availably standard: |
3A/DIN/SMS/RJT/ISO/IDF |
| Operated: |
Manual,Pneumatic, E lectric |
| Control: |
Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: |
ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
| Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
| Packaging Details: |
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery d etails: |
Usually within 20 days after receiving T/T down payment. |
Options
1. The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3. Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4. Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5. Control: position sensor, C-top controller, C-top controller (AS-I)
