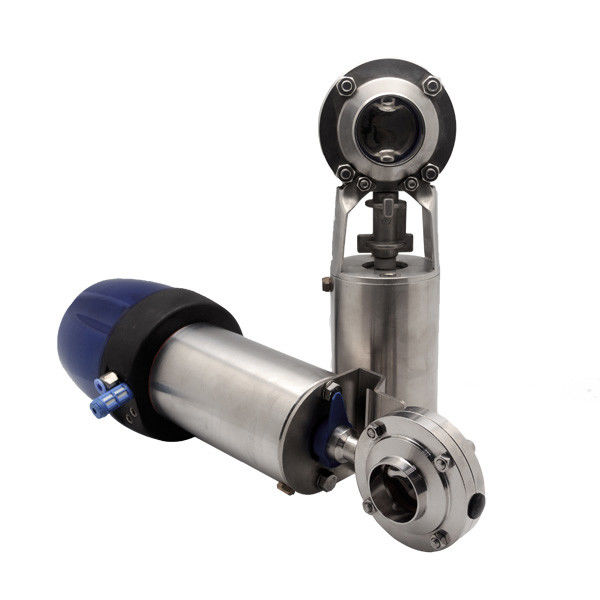

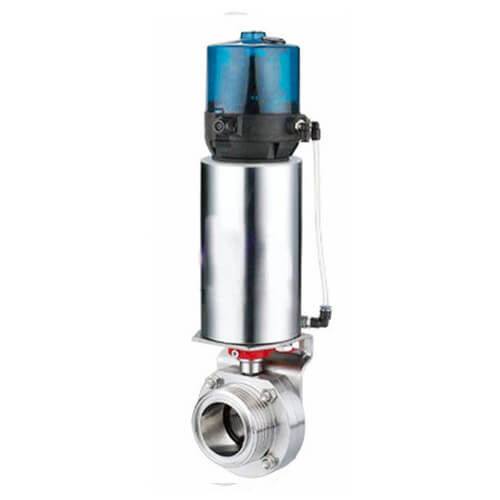

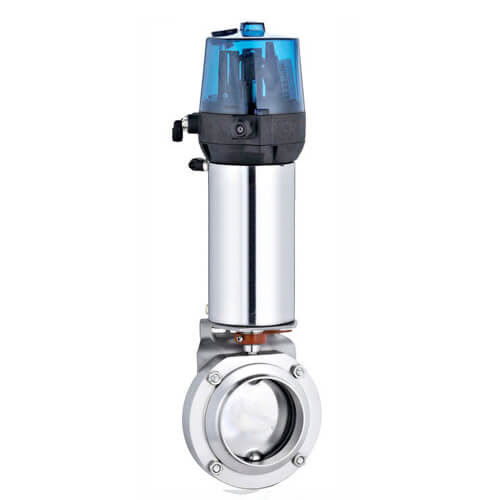

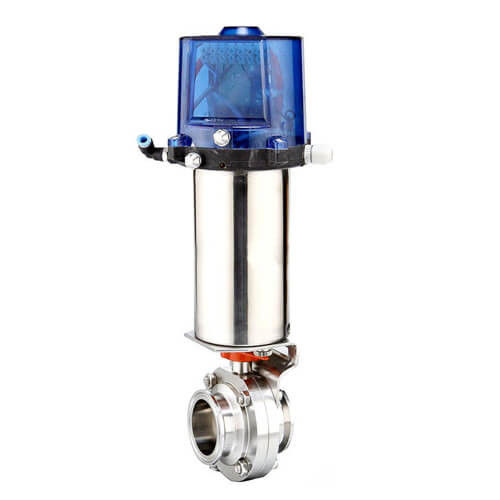

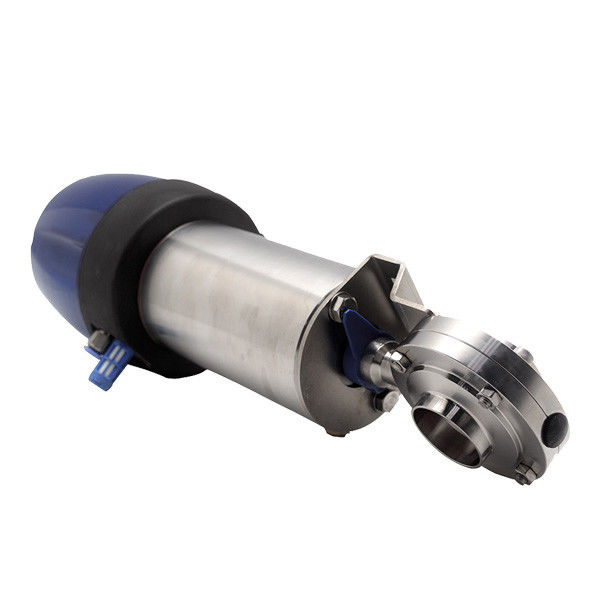

Hygienic Sanitary Stainless Steel SS304/SS316L Manual &Pneumatic Welded / Tri Clamped / Threaded Butterfly Valves
Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.
Characteristis:
-
A higher class pneumatically actuated butterfly valve
-
Hygienic design for food, beverage, pharmacy and biotechnology industries
-
Automatically controlled by an intelligent control unit
-
Easy installation and self-configuration
-
Can be easily switched from normally open to normally closed mode
-
7 / 24 visible indication
-
Convenient for daily maintenance and repair
Main Parts:
1. Intelligent Automation Control Unit: precise surveillance, remote control
2. Pneumatic Actuator: made of stainless steel, strong and easy setup
3. Hanger: stainless steel, to hold actuator and control unit
4. Butterfly Valve: 304 or 316L material, simple and compact configuration design
Working Principle:
1. Push the button of blue automation control unit, and run the pneumatic actuator
2. The pneumatic actuator can be spring return design or double air acting design
3. The operation of pneumatic actuator moves its piston to rotate the valve stem by 90 degrees
4. Valve is opened or closed accordingly to control medium flow rate of the pipeline
Specifications:
|
Valve Body Material:
|
SS304 or SS316L, forged, material inspection report available
|
|
Seal Material:
|
Optional from Silicon, EPDM, PTFE,Viton, NBR
|
|
Size:
|
1"-8" or DN25-DN200
|
|
Operating Type:
|
Pneumatic actuator with double acting (NO or NC) or spring return
|
|
Control Mode:
|
Precise automation control unit
|
|
Connection ends:
|
Weld, Clamp, Male or Female thread, Flange
|
|
Inside SurfaceTreatment:
|
Ra≥0.4-0.8 um
|
|
SurfaceTreatment:
|
Ra≥0.8-1.6 um
|
|
Working Temperature:
|
-20 degree to +120 degree (EPDM)
|
|
Working Pressure:
|
Max. 10 Bar
|
|
Air Supply Pressure:
|
5 - 8 Bar
|
