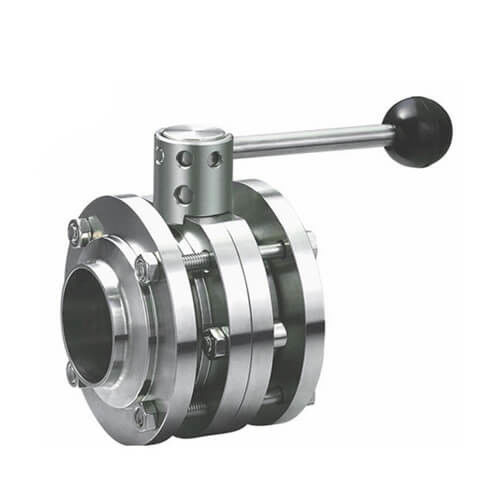

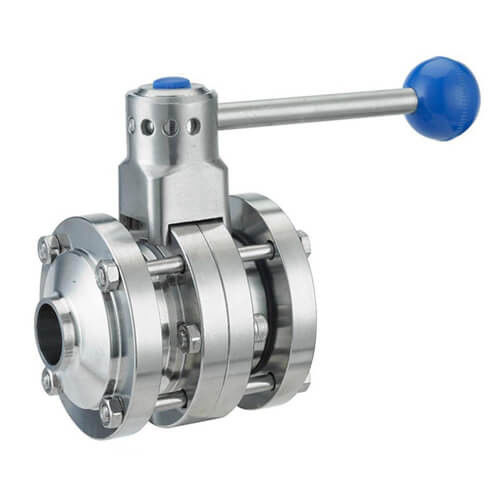

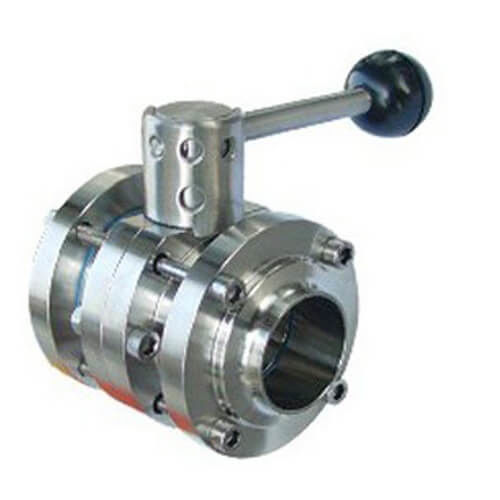

Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed

Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed

Products - Sanitary Butterfly Valve
  • Highlight

    hygienic butterfly valves

  • Material
    Forged SS304 And 316L Stainless Steel
  • Diameter
    1/2" - 6"; DN15-DN150
  • Configuration Design
    Three Detachable Valve Covers
  • Connection Ends
    Butt Weld, Weldind,Tri Clamped,threaded
  • Sealing Mode
    Ball Core Completely Encapsulated
  • Manual Handle
    4 Gear Pull Handle Or 12 Gear Gripper Handle
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    CE ISO,FDA
  • Model Number
    CX-S3PBV-04
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed

  • Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed
  • Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed
  • Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed
  • Welding Type Stainless Butterfly Valve For Dairy Food / Fruit Juice Filed
Get Price Contact Now

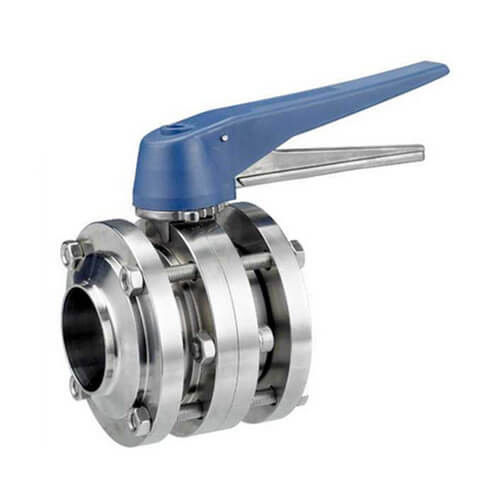

Sanitary Stainless Steel 3PCS Butterfly Valve welding type with Plastic Gripper Handle
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Design Features

1. Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2. Available in sizes from DN25 / 1" to DN300 / 12"
3. Multiposition handles can be used for valves up to DN100 / 4";
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5. pneumatic actuator and electric actuator are interchangeable.
6. Seals comply with FDA 21CFR 177. 2600.
7. The valve body can be customized with a wide selection of different connections.



Technical Parameters

Standard
3A,SMS,DIN,ISO,RJT,IDF
Product wetted steel parts
AISI304/AISI316L
Provided with material inspection report
Other steel parts
AISI304
Size
3/4"~6",DN20~DN150,19mm~152.4mm
Seal material
EPDM/VMQ/FPM
All seals material comply with FDA21CFR117.2600
Working pressure
≤10bar(145psi)
Supply pressure for air actuator
5~8(0~116psi)
Working temperature
EPDM:-14~248ºF(-10~120ºC)
VMQ:-58~356ºF(-50~180ºC)
FPM:22~446ºF(-30~230ºC)
Other materials are avaible upon request
Sterilization temperature
302ºF(150ºC,max 20min)
Outside surface treatment
Ra16~32uin(o.4~0.8um)
Inside surface treatment
Ra32~64uin(o.8~1.6um)
Connetion ends
butt-weld,clamped ends,male ends, flange ends
Pneumatic head
Normally closed(NC)-Air to open,spring to close
Normally open(NO)-Air to close,spring to open
Air to air(AA)-Air to open,air to close

Options

1. The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3. Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4. Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5. Control: position sensor, C-top controller, C-top controller (AS-I)

Products Show:

Three Pieces Welded Hygienic Butterfly Valves , Stainless Butterfly Valve
