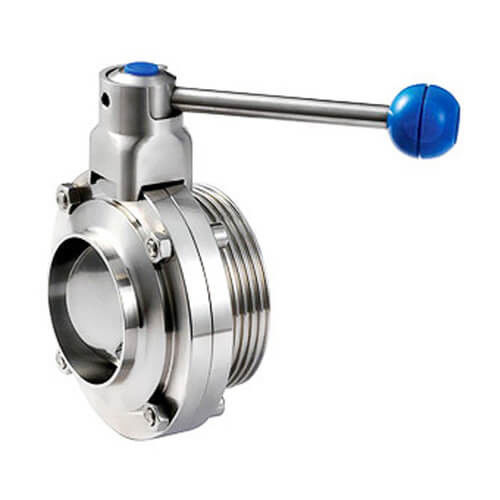

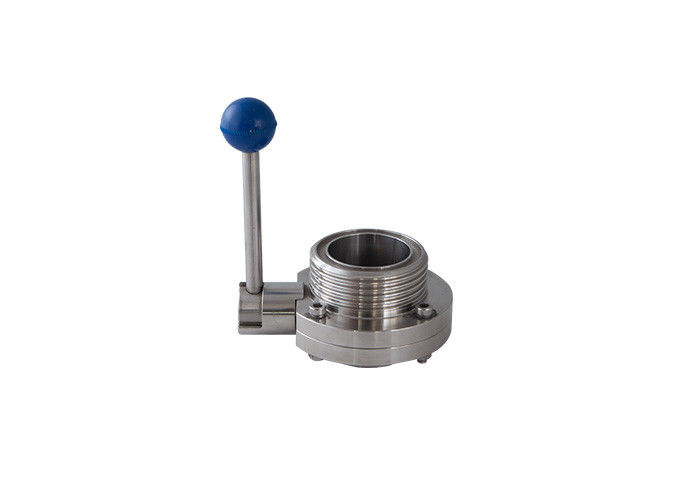

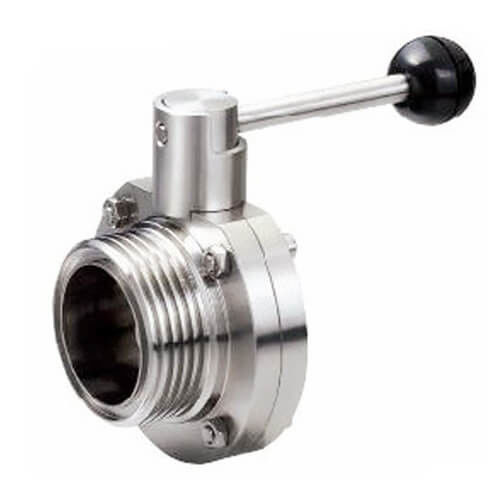

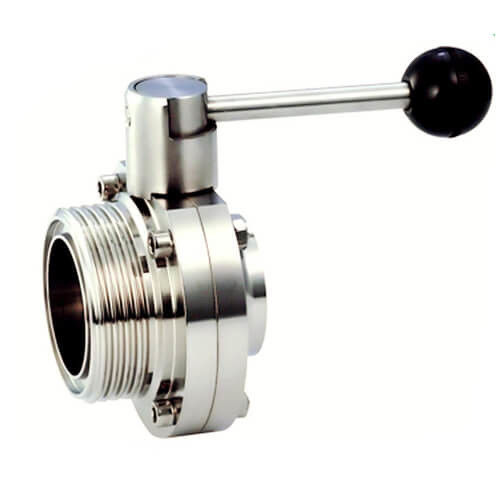

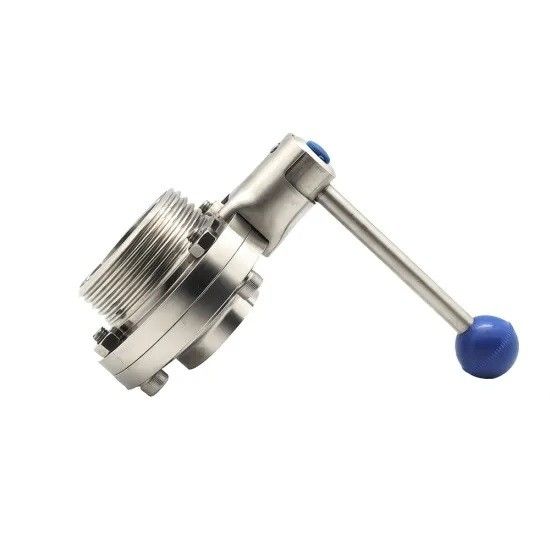

Sanitary stainless steel 304 316L butterfly valves With Thread And Weld Connection
Specifications:
| Port Size | DN15 - DN150 (DIN) , Ф19 - Ф108 (ISO) or custom on request |
| Operation Mode | 4 gear pull handle, or 12 gear gripper handle |
| Valve Body Material | SUS304, SUS316L, machined by advanced CNC equipment |
| Sealing Gasket | Silicone for size Ф63.5-Ф108, EPDM for all sizes |
| Working Temperature | -10 to +100 degrees centigrade |
| Working Pressure | Up to 10 bar |
| Connection Ends | One side weld, the other side thread |
| Dimension Standard | ISO, DIN, IDF, 3A, SMS etc. |
| Medium | Beer, red Wine |
| Surface Treatment | Mirror Polished for medium contact surface |
| Packing: | Carton or plywood case |
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
Features:
Hygienic grade for food, beverage, beer, pharmacy, biotechnology industries
Rotate manual by 90 degrees to close or open the valve
Simple structure, small rotation torque with good flow adjustion and sealing function
Very low resistance when valve is completely open
Fast action on flow control when valve is opened by 15 to 70 degrees
Very competitive application in big sized pipe systems
Our Competitive Advantages:
We use best quality EPDM gasket to ensure anti-aging, anti-corrosion functions
We use advanced CNC machine imported from Japan to ensure accurate valve dimension
Manual handle grooved with nylon ball or sleeve for easier opening and close
The valve diameter is equal to pipe size to ensure as large flow ability as possible
We design manual handle position adjustable by every 15 degrees
We perform strict mechanical property test and sealing test on each valve
We do sampling lifetime cycling test out of each batch, to ensure lifetime
Applications:
For hygienic and sanitary pipelines in below industries:
Beverage - Water - Food
Fine Chemical- Biotechnology - Pharmacy
Dairy - Wine - Beer
