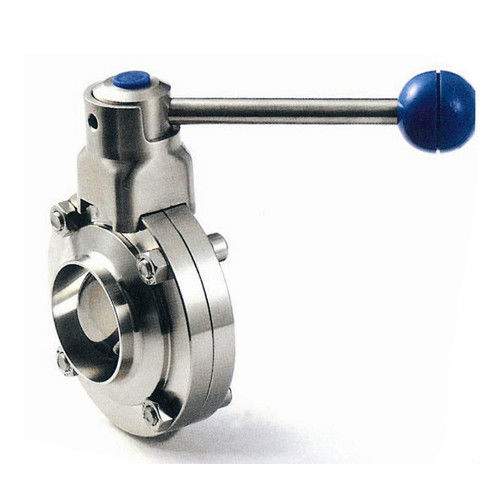

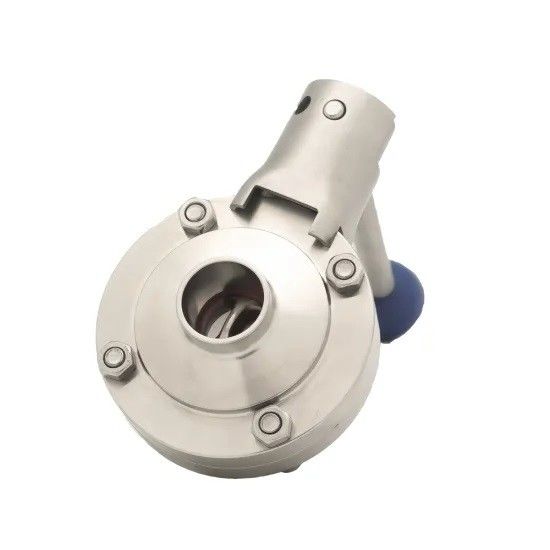

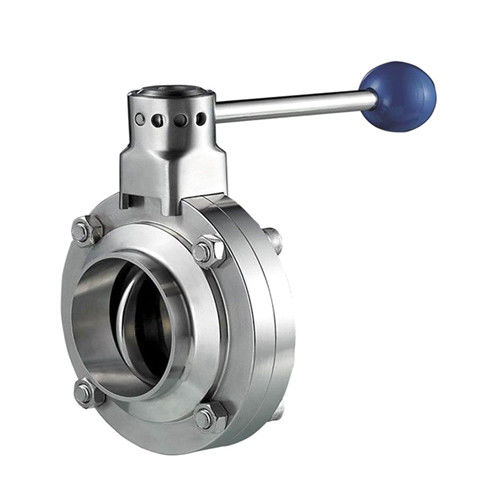

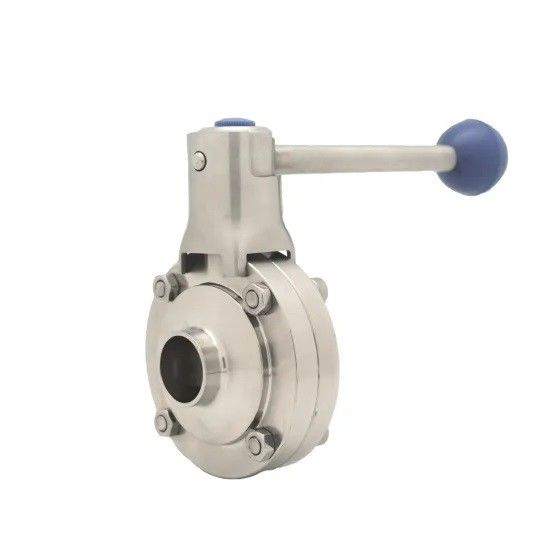

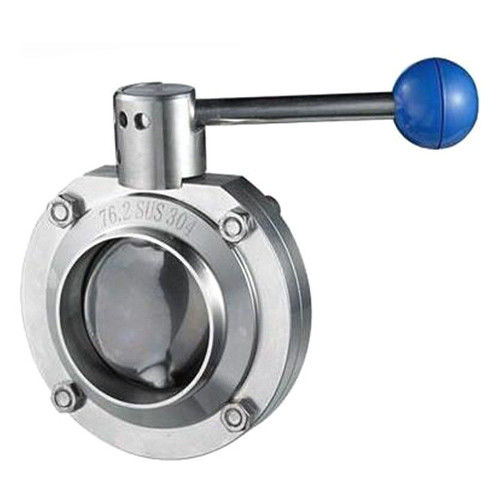

Pull Rod Manual Handle Sanitary Stainless Steel Butt Weld / Welded Butterfly Valves
Specifications:
| Driving Mode: |
4 Gear pull rod handle |
| Connection End: |
Butt weld |
| Size: |
DN15 ~ DN200 , 1/2" ~ 8", Φ19 ~ Φ102, all other sizes can be customized |
| Material: |
SUS304, or SUS316L |
| Gasket: |
Free choice among EPDM, PTF E, FPM or NBR |
| Working Pressure: |
Low Pressure (Pn<1.6mpa) |
| Working Temperature: |
-10℃ ~ +95℃ |
| Surface Process: |
MP, EP, BA |
| Connection Standard: |
3A, DIN, ISO, SMS, RJT, IDF |
Quick Details:
-
Quick and simple open / close function
-
Large flow ability suitable for big sized pipeline >DN50
-
Pull rod manual handle, simple operation and cost saving
-
All valve parts are mounted firmly by standard bolts and nuts
-
Consists of two symmetrical valve covers, flat round valve disc, pull rod handle, sealing gasket, and mounting kits
-
Weld ends allow the valve to be connected to pipe lines by the way butt weld
-
Pulling handle can be positioned at 4 gears to control valve opening
Highlights of Weld Connection End:
1. Firmly welded to pipeline to eliminate leakage problem
2. Safe and reliable, while saving cost
3. Suitable for high temperature and high pressure pipe system
Weld End Dimension Standards:
1. ISO 1127 Stainless steel tubes
2. ISO 2037 Stainless steel tubes for food industry
3. DIN 11850 Stainless steel tubes for the food and chemical industries
4. DIN 11866 Pharmaceutical tubes, Metric
5. EN 10357 Welded stainless steel tubes for the food and chemical industires
Packaging Details:
Strong and firm packing protective against air and seashipment:
1. Single valve is packed with bubble bag
2. Put valves in layers and a sponge between layers
3. Put all valves into a carton or a plywood case
4. A 20ft container can carry around 24 plywood cases
5. Any custom-made package is available upon your request
