Work principle:
This kind of valve are handled by manual. CX FLUID offers three types handle, such as stainless steel multi-position handle, plastic multi-position handle, and pulling handle.
Multi-position handle regulates the valve by 13 seats achiening control of medium flow purpose.
Pulling handle regulates the valve through four multi-function positioning, in its open or close four position, also achieves control of medium flow purpose.
This kind of valve also can be handled by a pneumatic actuator. Pneumatic actuator is to covert the axial movement of piston to be 90 degree rotation of valve shaft, so that the valve can be open or close to achieve the requirment of control and open /close for the pipeline system. They have three type of actator: normally open (NO), normally closed (NC), air/air(A/A)
How do we ensure finished product quality (FQC inspection)
1. Visual Inspection
2. Material Grade Measurement
3. Dimension Inspection
4. Roughness Detection
5. Roughness Detection
6. Leakage Test
Application:
The series of this valve is a kind of sanitary pneumatic valve which are widely used in stainless steel pipeline system to control and regulate medium flow.
Material:
Steel parts: Stainless steel 304, stainless steel 316L
Seal: Silicone(VMQ), Fluoroelastomer(FPM), EPDM
Specification:
| Product name: |

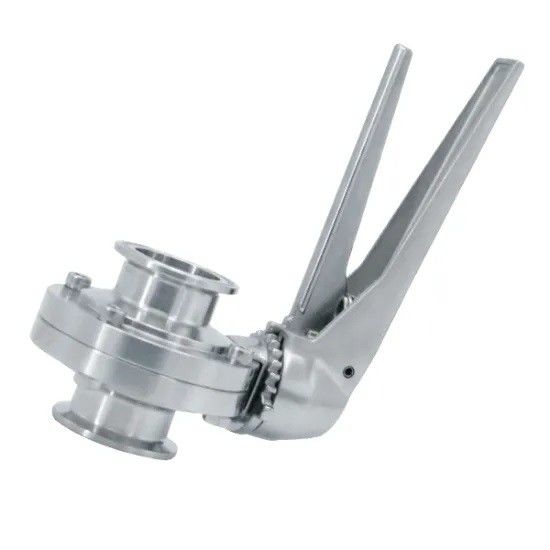

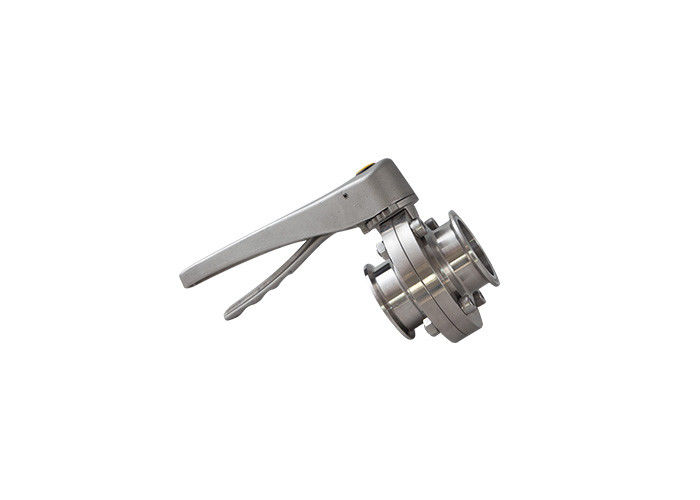

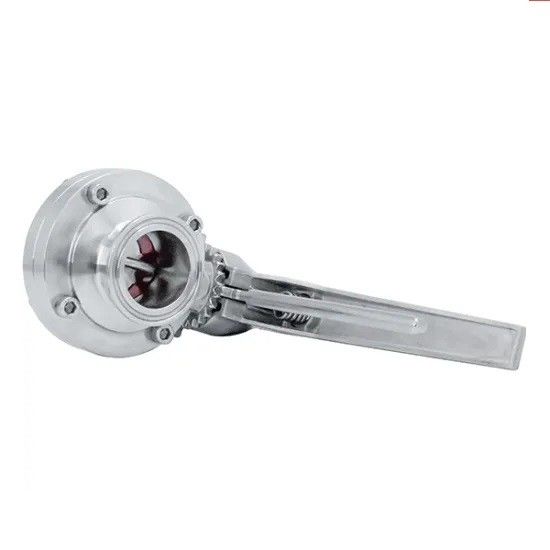

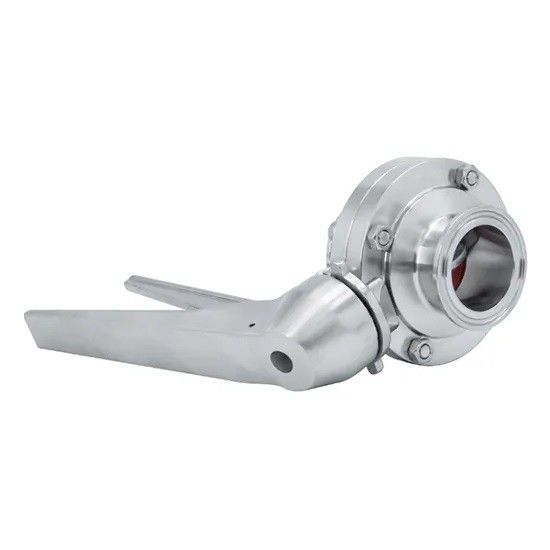

Sanitary SS Food Grade Tri-Clamp Butterfly Valve with Ss Muti-Position Handle |
| Valve Body: | SS 304. SS 316L material out from precision CNC milling machined. |
| Feature: | Body can be changeable. And low torque. |
| Standard: | BS. SMS. DIN 3A weld and male/male end. Clamp end. |
| Artwork: | Electro polished ad PTFE coating can be Required. |
| Handle: | Different nylon re-force and stainless steel handle gripper, pull, Press type. |
| Operation: | From 2 Position-12 Position, Design for your width range and beautiful choice. |
| Size: | DN15-DN300&1/2"-12" |
| Design: | Remote-controlled operation by the driving gear or manual operation by the handle |
| Drive forms: | Normally closed, normally opened and opened & closed by two air flues separately. |
| Medium: |
Beer,Food, beverage, dairy, pharmacy, chemical or any food processing industries |
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton
