DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End

DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End

Products - Sanitary Butterfly Valve
  • Highlight

    hygienic butterfly valves

  • Material
    Casting SS304 And 316L Stainless Steel
  • Diameter
    DN25 - 200, 1"~ 8"
  • Working Principle
    Remote-controlled By Manual Handle
  • Connection End Dimension
    One Side Square Or Round Flange, The Other Side Thread Or Clamp
  • Valve Structure
    Butterfly Type
  • Application
    Installed Onto The Wine Tanks Especially
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    CE, ISO9001, 3A
  • Model Number
    CX-FSTBV-02
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

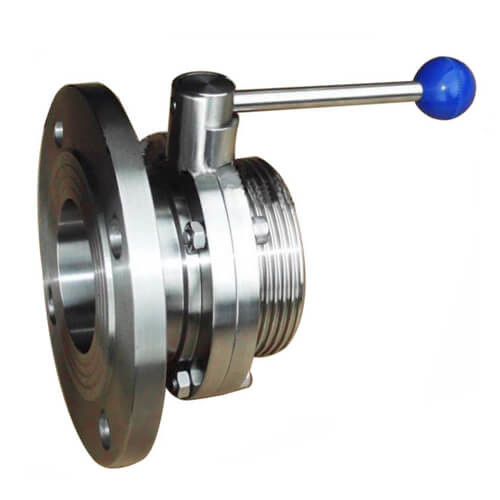

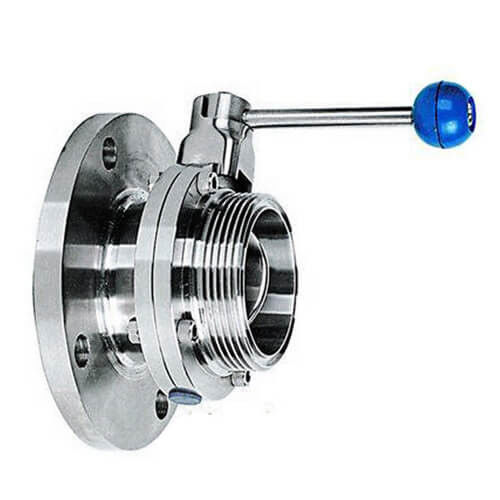

DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End

  • DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End
  • DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End
  • DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End
  • DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End
Get Price Contact Now

Sanitary Hygienic Stainless Steel Square or Round Flange Manual Butterfly Valves



Quick Details:

  • Butterfly instructure, body flange forged
  • One connection end to be square or round flange
  • The other connection end can be optional from clamp, thread, union or butt weld
  • Designed with thorough flow channel
  • Manual Handle can be pull-rod or multi-position



Competitive Strength:

  • Valve body is made of SS304 or 316L material
  • Fabricated by precision CNC milling machine
  • Valve body can be changeable
  • Very easy to pull manual handle with low torque
  • Flange end meets BS, SMS, DIN, 3A and so on
  • Valve disk surface roughness can be less than 0.6
  • Wide range of manual handle type from nylon re-force or stainless steel handle gripper
  • 2 - 12 pull position design for wider adjustion range on flow control

How do we control the quality of machining



1. High-precision CNC lathe processing parts.

2. Advanced Milling Machines

3. UT Inspection to ensure welding quality

4. Weld Polishing

5. 100% Appearance & Size Inspection online (thickness, roundness, etc.)

6. Size & Appearance Shaping



Specifications



Port Size DN25-DN200 , 1" - 8", or custom on request
Operation Mode Manual handle
Raw Material

Body: SUS304, SUS316L etc.

Gasket: EPDM, PTFE, etc.
Working Temperature -10 to +100 degrees centigrade
Working Pressure Up to 10 bar
Connection Flange at one side, the other side male thread, clamp, union or weld
Dimension Standard ISO, DIN, IDF, 3A, SMS etc.
Medium Beer, red Wine
Surface Treatment Mirror Polish





Valve Types:



We have different types of hygienic wine tank flanged butterfly valves with different connection ends as below:

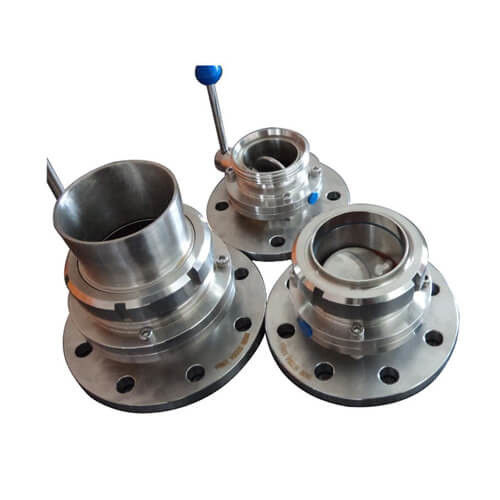

Sanitary hygienic flange - clamp butterfly valves & flange - thread butterfly valves

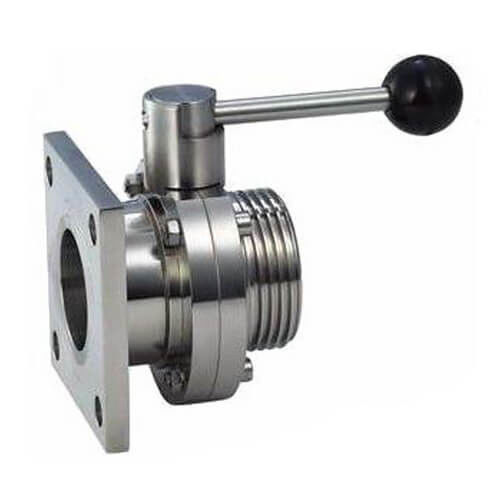

Manual Sanitary Butterfly Valves Square Or Round Flange For Wine Tanks



DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End 1



DN25 - 200 Manual Butterfly Valve With Square / Round Flange Connection End 2











Hygienic Sanitary SS304,SS316L,3PC Threaded,Tri Clamp Ball Valve with Pneumatic Actuator
