Name: Manual Sanitary Butterfly Valve , Stainless Steel 304 316L Tri Clamp Butterfly Valve
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
SKU: CX-SBTY-012
Availability: InStock

Beijing Silk Road Enterprise Management Services Co.,LTD 86-755-29455975 miclecleanmo@gmail.com

Manual Sanitary Butterfly Valve , Stainless Steel 304 316L Tri Clamp Butterfly Valve

Products - Sanitary Butterfly Valve

Highlight

hygienic butterfly valves
Material

304 Or 316L Stainless Steel
Hygienic Grade

Food Grade
Structure

Butterfly Type
Medium

Fluid, Gas, Steam, Water
Used To

Adjust Flow Rate Of Piping System
Applications

All Kinds Of Piping Systems Of Food Industry
Place of Origin

China
Brand Name

OEM
Certification

3A, CE, ISO, FDA
Model Number

CX-SBTY-012
Document

Product Brochure PDF
Minimum Order Quantity

1
Price

Negotiable
Packaging Details

Plywood Cases
Delivery Time

15-60 Days
Payment Terms

L/C, T/T
Supply Ability

Based On Order

Manual Sanitary Butterfly Valve , Stainless Steel 304 316L Tri Clamp Butterfly Valve

button button

Get Price Contact Now

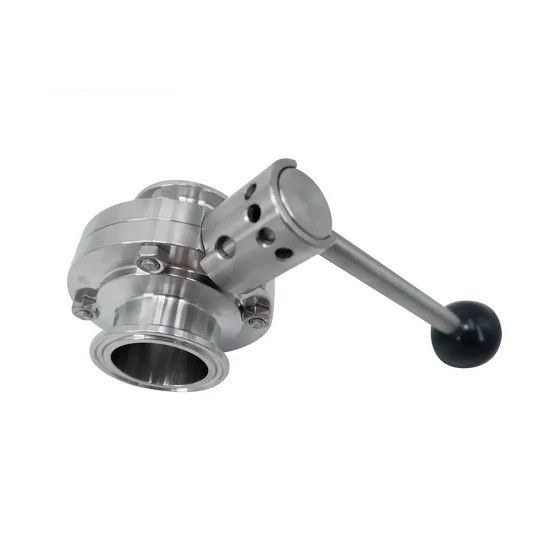

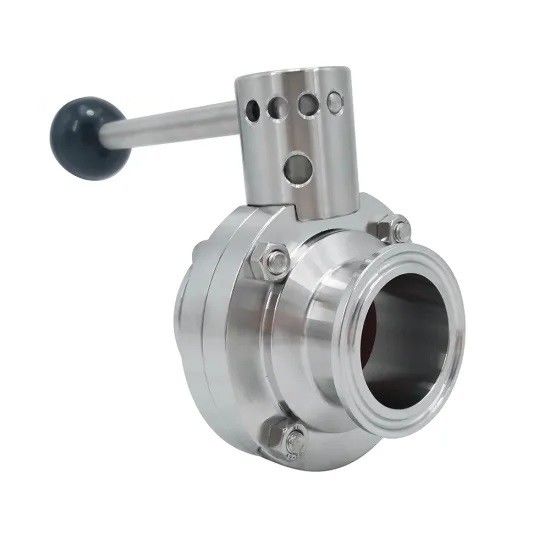

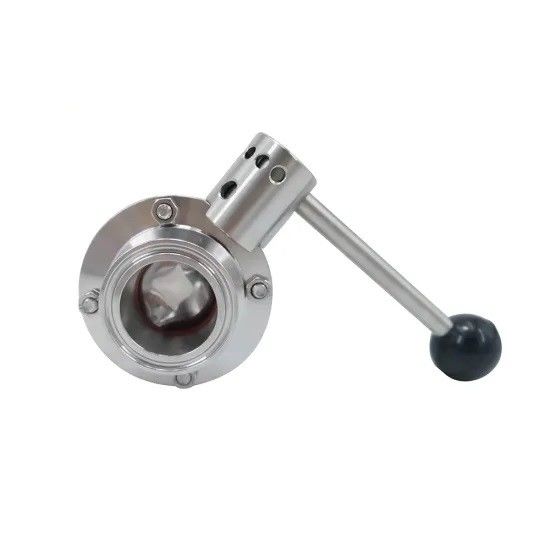

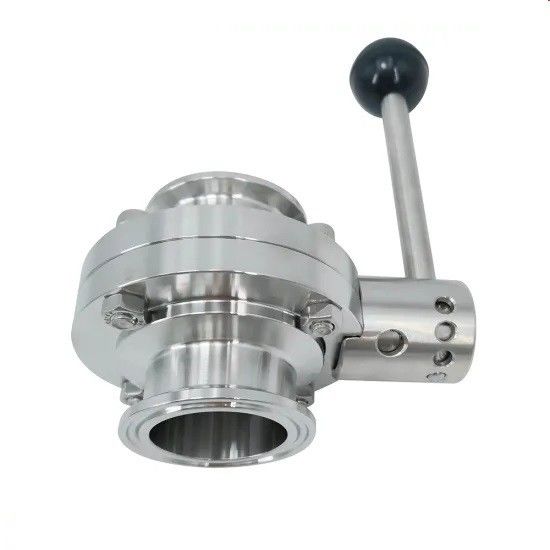

Hygienic Stainless Steel 304 316L Sanitary Tri Clamp Butterfly Valve Manual

Surface Treatment

We offer the following processes to choose:

1. Mechanical Polishing (MP) to improve brightness (gloss, matte)

2. Acid Cleaning for Anti-corrosion

3. Electrolysis Polish (EP) to improve surface smoothness

4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness

Forming Machine Process

1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Technical Parameters

Standard	3A,SMS,DIN,ISO,RJT,IDF
Product wetted steel parts	AISI304/AISI316L	Provided with material inspection report
Other steel parts	AISI304
Size	3/4"~6",DN20~DN150,19mm~152.4mm
Seal material	EPDM/VMQ/FPM	All seals material comply with FDA21CFR117.2600
Working pressure	≤10bar(145psi)
Supply pressure for air actuator	5~8(0~116psi)
Working temperature	EPDM:-14~248ºF(-10~120ºC)
	VMQ:-58~356ºF(-50~180ºC)
	FPM:22~446ºF(-30~230ºC)
	Other materials are avaible upon request
Sterilization temperature	302ºF(150ºC,max 20min)
Outside surface treatment	Ra16~32uin(o.4~0.8um)
Inside surface treatment	Ra32~64uin(o.8~1.6um)
Connetion ends	butt-weld,clamped ends,male ends, flange ends
Pneumatic head	Normally closed(NC)-Air to open,spring to close
	Normally open(NO)-Air to close,spring to open
	Air to air(AA)-Air to open,air to close

Options

1. The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3. Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4. Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5. Control: position sensor, C-top controller, C-top controller (AS-I)

Design Features

1. Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2. Available in sizes from DN25 / 1" to DN300 / 12"
3. Multiposition handles can be used for valves up to DN100 / 4";
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5. pneumatic actuator and electric actuator are interchangeable.
6. Seals comply with FDA 21CFR 177. 2600.
7. The valve body can be customized with a wide selection of different connections.
