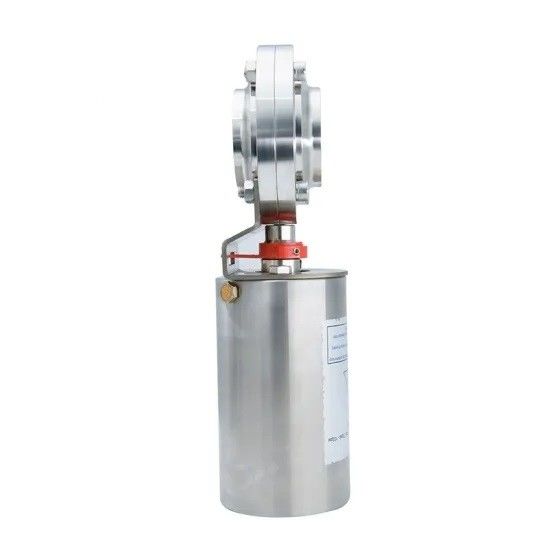

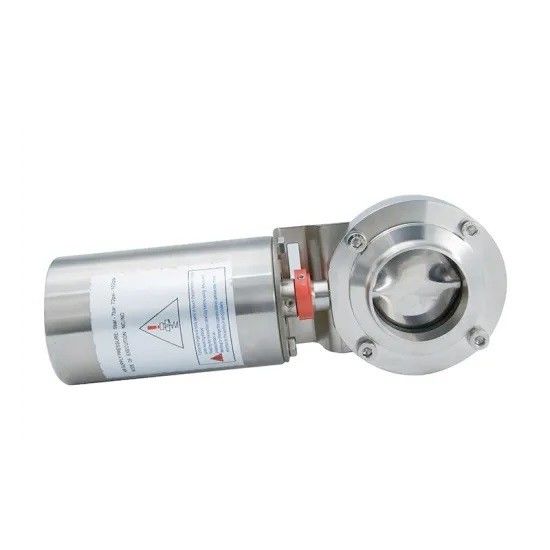

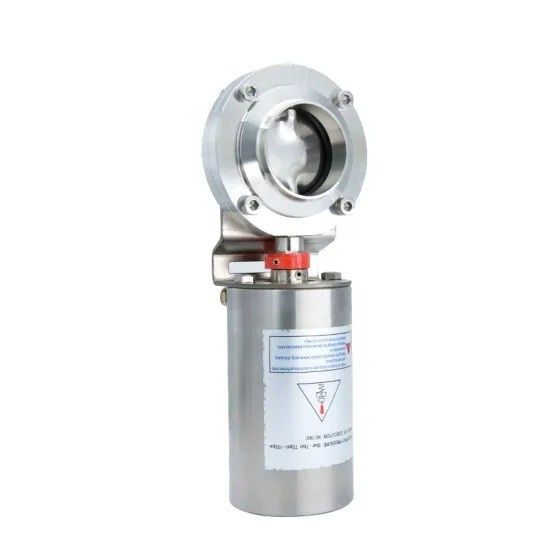

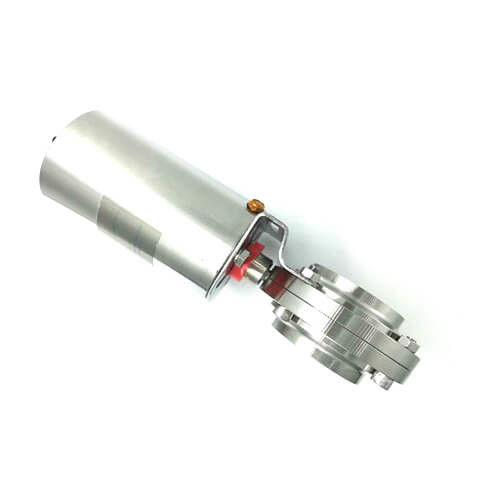

Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator

Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator

Products - Sanitary Butterfly Valve
  • Highlight

    stainless steel butterfly valve

  • Pressure
    Low Pressure
  • Temperature Of Media
    Medium Temperature
  • Application
    General
  • Shape
    Round
  • Structure
    Butterfly
  • Material
    Stainless Steel3304/316L
  • Port Size
    Standard
  • Type
    Butterfly Valves
  • Power
    Pneumatic Actuator,Handle Operated
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    CE, ISO9001
  • Model Number
    CX-SBTY-001
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator

  • Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator
  • Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator
  • Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator
  • Low Pressure Hygienic Stainless Butterfly Valve With Pneumatic Actuator
Get Price Contact Now

Hygienic Sanitary Stainless Steel 304,316L welding type Butterfly Valve with Pneumatic Actuator


About us

Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.

Technical Specifications

Valve Body Material:
1.4404/1.4301, SS304/SS316L
Seal Material:
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure:
10Bar
Max. Working Temperature:
-10 ºC to120 ºC(EPDM Seal)
Availably size:
DN25-DN100, 1"-4"
Availably connection:
Clamp / weld / thread/ weld thread/ flange
Availably standard:
3A/DIN/SMS/RJT/ISO/IDF
Operated:
Manual,Pneumatic, Electric
Control:
Sensor, C-TOP, C-top controller(AS-I)
Certificate:
ISO, PED/97/23/EC, FDA.177.2600
Handle application:
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Application scope:
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Packaging Details:
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:
Usually within 20 days after receiving T/T down payment.

Operating principles

The butterfly valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open" or "closed" position, certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls butterfly vavle.

For more detail information or catalog pls don't hesitate to contact us. We can also produce according to your drawings and specifictions.
