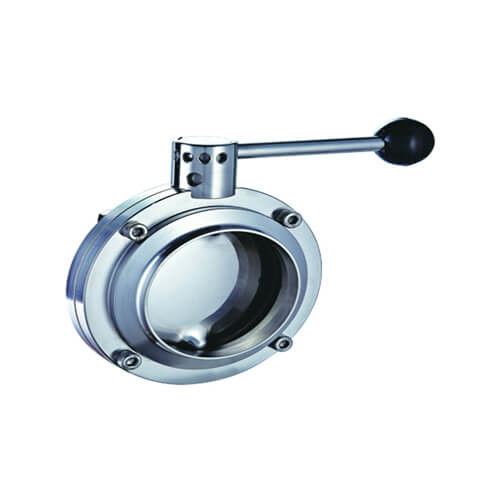

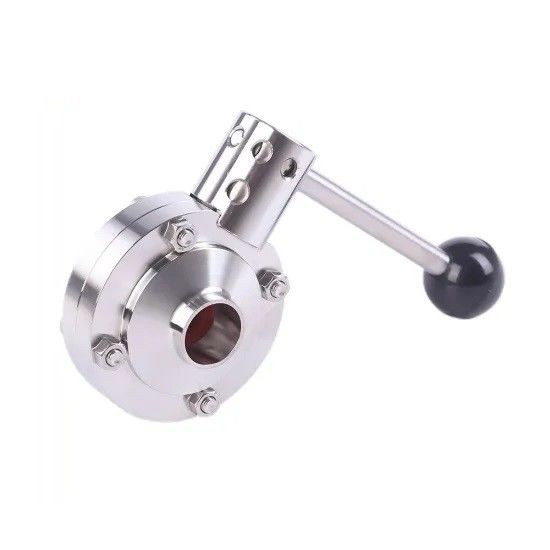

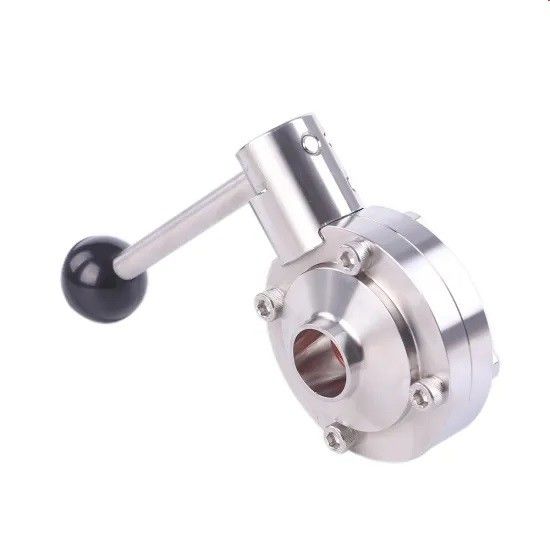

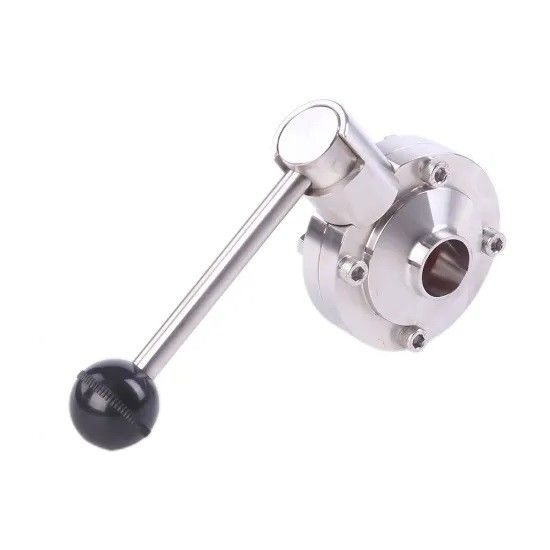

SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry

SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry

Products - Sanitary Butterfly Valve
  • Highlight

    hygienic butterfly valves

  • Standard Or Nonstandard
    Standard
  • Structure
    Butterfly
  • Pressure
    Medium Pressure
  • Material
    Stainless Steel
  • Temperature Of Media
    Medium Temperature
  • Media
    Water
  • Port Size
    DN15~DN300 (1/2"~12")
  • Model Number
    SMS-CD31016,3A-NO.CD21010
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    CE, ISO9001,FDA
  • Model Number
    CX-SBTY-008
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry

  • SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry
  • SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry
  • SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry
  • SS304 SS316L Manual Sanitary Butterfly Valve For Brewing Industry
Get Price Contact Now

Sanitary Stainless Steel SS304/SS316L manual Welded Butterfly Valve



Our service



1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service



Technical specification

· Max pressure : 10bar (145psi) DN25~ 100,8bar (120ps) DN125~ 150

· Temperature range: 14~ 248^F (-10~ 120*C),EPDM

· Surface treatment: Ra16~32uin(0.4~0.8um)

· supply pressure for air actuator.70~ 115psi


  • Product Description

1. Selling Units: Single item

2. Single package size: 50X50X30 cm

3. Package Type:Shrink Wrapped-Carton-Pallet or In Seaworthy Wooden Cased

4. Lead Time :7~25 days deliever from warehouse.

5. Application:Butterfly valve is a type of flow control device,used to make a fluid start or stop flowing

through a section of pipe .It is well applied to stainless steel pipe systems for

food,beverage.dairy,brewing,phamaceuatical,bio-pharmaceuatical and chemical industries.

6. Materials

· Body Materials: AIS1-304 or AISl-316L


· Gasket Material : Silicon,EPDM,VTON,NBR


· Valve seat and gasket complywith FDA21CFR177 2600

7. Standard Design

· Standard Avaliable: DIN,3A,SMS,ISO /IDF,BS /RJT,and ASME /BPE.

· Available in sizes from DN15 to DN300(1/2"~12")

· Endconnection: Butt-weld,Clamp,Male.Nut,Liner or Flange or other supon request.

· Handle: plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions)

· Actuator. pneumatic stainless steel actuator (vertical type).pneumatic aluminum actuator (horizontal

type).electric actuator.

· Control: position sensor,C-top controller,C-top C ontroller (AS-)

Manual handle,pneumatic actuator and electic actuator are interchangeable.

  • Technical data:
Steel material
Contact with the product components
304,304L,316L (1.4301,1.4306,1.4307,1.4404) Forging
Can provide material inspection report
Materal No contact with the product components
304,(1.4301)
seal material
Standard
Silicone
Adopt import sealing materisls,with all the seal material the FDA 117.2600
Option
EPDM,FPM
Pressure
Pressure of work
0-10bar
Control air pressure
5-8bar
Temperature
Working temperature
Silicone:(-50 - +180°C)EPDM:(-20 - +135°C)
Sterilization temperature
150°C(MAX 20Min)
Surface qualities
Lnside surface wualities
Ra≥ 0.4-0.8μm
Outer Surface qualities
Ra≥ 0.8-1.6μm
Connection mode
The diameter welding
Welding mouth DIN11850-1 and DIN11851-2,SMS,3A,ISO Series etc
Connection mode:Welding,fast loading,male and female,flange,etc
Optional driven
Intelligent control
Pneumatic control
Pneumatic head and fixed bracket
Butterly valve volune flow:flow through the butterfly valve per unit time of a cross-sectional of the fluid volume
Volume flow:cubic meters/hour(㎡/h)


Manual Sanitary Stainless Steel Butterfly Valves , Ss Dairy Fittings By Welded End Pull Handle 3 - 4 Position


A. Round pull rod handle:3-4 gear,lock valve inevery 25 degree angle to control flow rate

B. Square pull rod handle:3-4 gear,lock valve every 25degree angle to control flow rate

C. Plastic multiple position gripper handle:12gear,lock valve in every 15 degree angle position,increases flow control accuracy

D. Stainless steel multiple position gripper handle:12 gear,lock valve in every 15 degree angle position,increases flow control accuracy
  • Ordering specifications:

Specify: .Standard


.Size


.Steel material


.Seal material


.Surface quality


.Quantity

  • Example
Standard
Size
Steel material
Seal material
Surface quality
Quantity
3A
1.5"
304
/
1(Ra≤ 1.6)
200





Manual Sanitary Stainless Steel Butterfly Valves , Ss Dairy Fittings By Welded End Pull Handle 3 - 4 Position

SMS-NO.CD31016 Welded Butterfly Valve
Size
A
B
K*K
D
L
T
19
78
19.05
10*10
50
136
1.5
25
78
25.4
10*10
50
136
1.5
32
78
31.8
10*10
50
136
1.5
38
80
38.1
10*10
50
136
1.5
51
100
50.8
10*10
50
136
1.5
63
115
63.5
10*10
56
136
1.5
76
125
76.2
10*10
56
163
2
102
154
101.6
10*10
64
163
2
Manual Sanitary Stainless Steel Butterfly Valves , Ss Dairy Fittings By Welded End Pull Handle 3 - 4 Position
3A-NO.CD21010 Welded Butterfly Valve
Size
A
B
K*K
D
L
T
3/4"
78
19.05
10*10
50
136
1.65
1"
78
25.4
10*10
50
136
1.65
1 1/4"
78
31.8
10*10
50
136
1.65
1 1/2"
80
38.1
10*10
50
136
1.65
2"
100
50.8
10*10
50
136
1.65
2 1/2"
115
63.5
10*10
56
136
1.65
3"
125
76.2
10*10
56
163
1.65
4"
154
101.6
10*10
64
163
2.1
Manual Sanitary Stainless Steel Butterfly Valves , Ss Dairy Fittings By Welded End Pull Handle 3 - 4 Position
DIN-NO.CD11001 Welded Butterfly Valve(DIN11851-1)
Size
A
B
K*K
D
L
T
DN10
78
12
10*10
50
136
1.5
DN15
78
18
10*10
50
136
1.5
DN20
78
22
10*10
50
136
1.5
DN25
78
28
10*10
50
136
1.5
DN32
80
34
10*10
50
136
1.5
DN40
90
40
10*10
50
136
1.5
DN50
106
52
10*10
52
136
1.5
DN65
124
70
10*10
56
136
2
DN80
139
85
10*10
58
163
2
DN100
156
104
10*10
64
163
2
DN125
185
129
14*14
75
185
2
DN150
225
154
14*14
80
185
2







DIN-NO.CD11002 Welded Butterfly Valve(DIN11851-2)
Size
A
B
K*K
D
L
T
DN10
78
13
10*10
50
136
1.5
DN15
78
19
10*10
50
136
1.5
DN20
78
23
10*10
50
136
1.5
DN25
78
29
10*10
50
136
1.5
DN32
80
35
10*10
50
136
1.5
DN40
90
41
10*10
50
136
1.5
DN50
106
53
10*10
52
136
1.5
DN65
124
70
10*10
56
136
2
DN80
139
85
10*10
58
163
2
DN100
156
104
10*10
64
163
2
DN125
185
129
14*14
75
185
2
DN150
225
154
14*14
80
185
2







Sanitary Stainless Steel 3PCS Butterfly Valve welding type with Plastic Gripper Handle
