304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available

304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available

Products - Sanitary Butterfly Valve
  • Highlight

    hygienic butterfly valves

  • Categories
    Butterfly Valves
  • Certification
    3A, ISO,CE
  • Price
    Negotiation
  • Payment Terms
    T/T,L/C, Credit Card
  • Packaging Details
    Carton, Wooden Case
  • Materials
    304 / 316L
  • Port
    DN15 - DN100, 1/2" - 12"
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    3A , ISO,FDA
  • Model Number
    CX-3SBTV-02
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

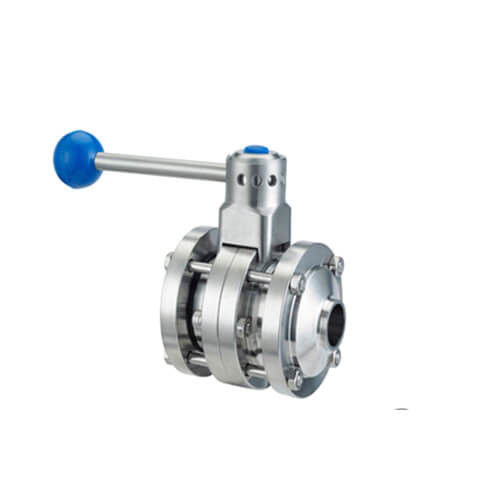

304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available

  • 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available
  • 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available
  • 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available
  • 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available
Get Price Contact Now

Sanitary Stainless Steel 304 316L Three Pieces 3PCS Welding Type Butterfly Valve



Forming Machine Process



1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly

  • Technical Specifications:

​

Max.Pressure 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)
Min. Pressure 0.2 Bar
Working Temperature -10C° To +120 Degree( EPDM)
Valve Body Material SS304/316L
Seal Material EPDM (Standard) FPM/SILICON/NBR, FDA177.2600
Max Working   0~10 Bar
Max.Working Temperature 120 Degree C
Availably Size DN15-DN300, 1/2"-12"
Availably Connection Clamp/Welding/Thread/Special Connection
Availably Standard 3A/DIN/SMS/RJT/ISO/IDF
Operated Manual,Pneumatic, Electric
Handle Application Two-Position Handle, Three-Position Handle, Four-Position Pull Handle, Multi-Position Plastic Handle And Multi-Position Stainless Steel Handle
Control Smart Valve Positioner / C-TOP Control / Position Sensor
Application Scope Dairy,Food, Beverage, Pharmacy, Cosmetic, Etc



  • Operating Torque(N.M)



DN25/1” DN40/1.5” DN5082” 2.5” DN65 3” DN80 DN100/4” DN125 DN150
3 4 5 10 12 14 18 25 40 55





  • Various handles

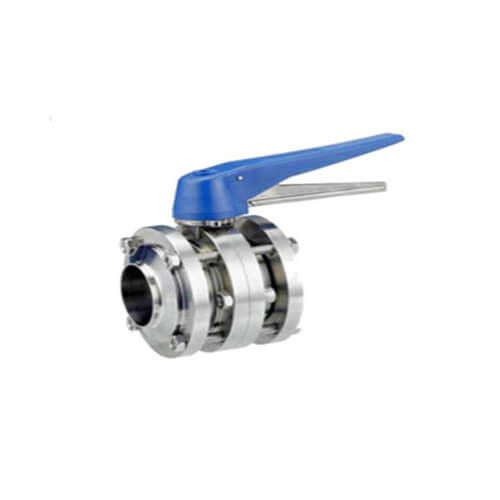

1. Pull Handle





Size L1 L2 B 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available 0
DN10-DN40 0.5-1.5” 126 20.2 8
DN50 2” 133 22.2 10
DN65 2.5-3” 144 22.2 10
DN80-DN100 3.5-4” 160 22.2 11
DN125-DN150 5-6” 220 30.2 14
DN200-DN300 8-12” 284 30.2 14

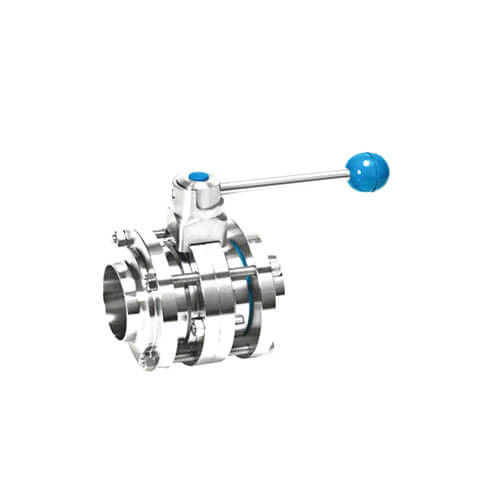

2, Multi-Position Handle(Blue Plastic)





Size L1 L2 B 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available 1
DN10-DN40 0.5-1.5” 164 20.2 8
DN50-DN65 2”-3” 164 22.2 10
DN80-DN100 3.5-4” 164 22.2 11

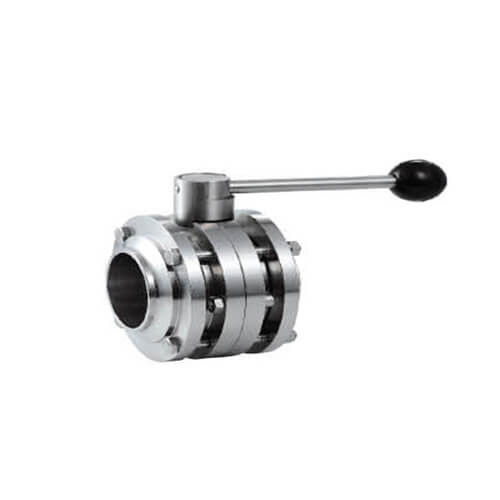

3. Multi-Position Handle (Stianless Steel) Lockable





Size L1 L2 B 304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available 2
DN10-DN40 0.5-1.5” 166 20.2 8
DN50-DN65 2”-3” 166 22.2 10
DN80-DN100 3.5-4” 166 22.2 11
DN125-DN150 5”-6” 166 30.2 14



304 / 316L Stainless Steel Dairy Butterfly Valve Various Handles Available 3

3A-NO.CD21013 Three Piece Butterfly Valve
Size A B K*K D L T
3/4" 78 19.05 10*10 100 136 1.65
1" 78 25.4 10*10 100 136 1.65
1 1/4" 78 31.8 10*10 100 136 1.65
1 1/2" 80 38.1 10*10 100 136 1.65
2" 100 50.8 10*10 102 136 1.65
2 1/2" 115 63.5 10*10 106 136 1.65
3" 125 76.2 10*10 108 163 1.65
4" 154 101.6 10*10 114 163 2.1

SMS-NO.CD31019 Three Piece Butterfly Valve
Size A B K*K D L T
19 78 19.05 10*10 100 136 1.5
25 78 25.4 10*10 100 136 1.5
32 78 31.8 10*10 100 136 1.5
38 80 38.1 10*10 100 136 1.5
51 100 50.8 10*10 102 136 1.5
63 115 63.5 10*10 106 136 1.5
76 125 76.2 10*10 108 163 2
102 154 101.6 10*10 114 163 2

DIN-NO.CD11007 Three Piece Butterfly Valve
Size A B K*K D L T
DN10 78 12 10*10 100 136 1.5
DN15 78 18 10*10 100 136 1.5
DN20 78 22 10*10 100 136 1.5
DN25 78 28 10*10 100 136 1.5
DN32 86 34 10*10 100 136 1.5
DN40 90 40 10*10 100 136 1.5
DN50 106 52 10*10 102 163 1.5
DN65 124 70 10*10 106 163 2
DN80 139 85 10*10 108 163 2
DN100 159 104 10*10 114 163 2
DN125 185 129 14*14 125 185 2
DN150 225 154 14*14 130 185 2

DIN-NO.CD11008 Three Piece Butterfly Valve
Size A B K*K D L T
DN10 78 13 10*10 100 136 1.5
DN15 78 19 10*10 100 136 1.5
DN20 78 23 10*10 100 136 1.5
DN25 78 29 10*10 100 136 1.5
DN32 86 35 10*10 100 136 1.5
DN40 90 41 10*10 100 136 1.5
DN50 106 53 10*10 102 163 1.5
DN65 124 70 10*10 106 163 2
DN80 139 85 10*10 108 163 2
DN100 159 104 10*10 114 163 2
DN125 185 129 14*14 125 185 2
DN150 225 154 14*14 130 185 2
