Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
How do we ensure finished product quality (FQC inspection)
1. Visual Inspection
2. Material Grade Measurement
3. Dimension Inspection
4. Roughness Detection
5. Roughness Detection
6. Leakage Test

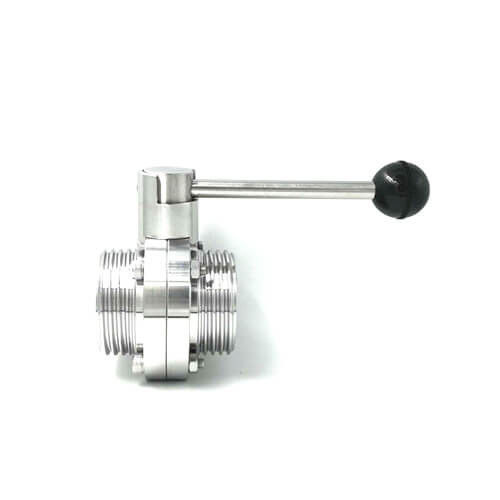

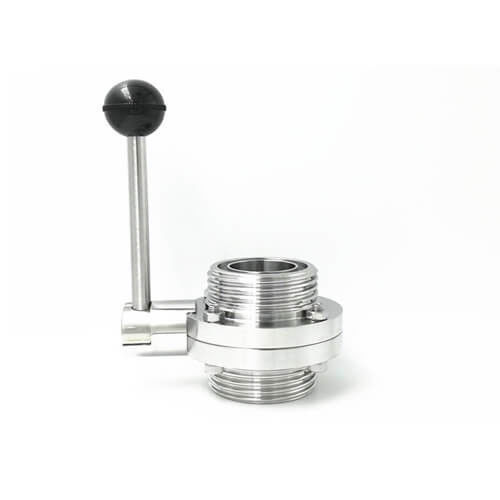

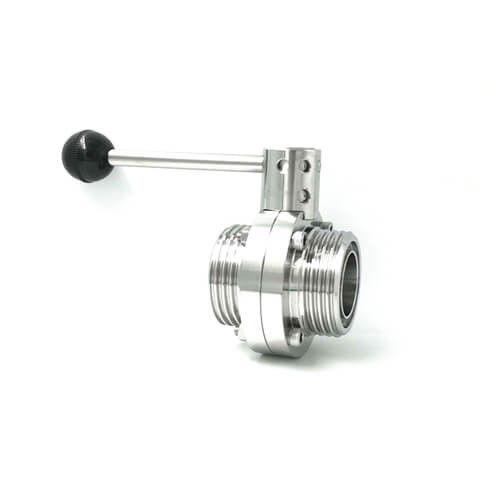

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
|
Standard
|
3A,SMS,DIN,ISO,RJT,IDF
|
|
|
Product wetted steel parts
|
AISI304/AISI316L
|
Provided with material inspection report
|
|
Other steel parts
|
AISI304
|
|
|
Size
|
3/4"~6",DN20~DN150,19mm~152.4mm
|
|
|
Seal material
|
EPDM/VMQ/FPM
|
All seals material comply with FDA21CFR117.2600
|
|
Working pressure
|
≤10bar(145psi)
|
|
|
Supply pressure for air actuator
|
5~8(0~116psi)
|
|
|
Working temperature
|
EPDM:-14~248ºF(-10~120ºC)
|
|
|
VMQ:-58~356ºF(-50~180ºC)
|
||
|
FPM:22~446ºF(-30~230ºC)
|
||
|
Other materials are avaible upon request
|
||
|
Sterilization temperature
|
302ºF(150ºC,max 20min)
|
|
|
Outside surface treatment
|
Ra16~32uin(o.4~0.8um)
|
|
|
Inside surface treatment
|
Ra32~64uin(o.8~1.6um)
|
|
|
Connetion ends
|
butt-weld,clamped ends,male ends, flange ends
|
|
|
Pneumatic head
|
Normally closed(NC)-Air to open,spring to close
|
|
|
Normally open(NO)-Air to close,spring to open
|
||
|
Air to air(AA)-Air to open,air to close
|
||
