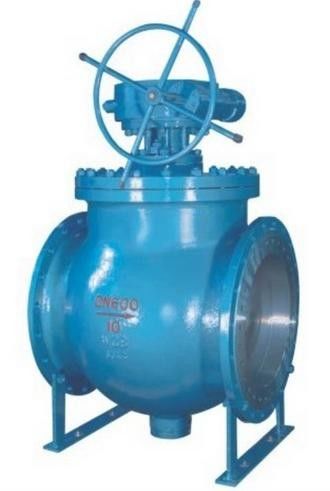

Top entry trunnion ball valve of 2"-24" CL150-2500 with casting or forging body
Applicable Standards:
DESIGN & MANUFACTURE CONFORM WITH: API 6D/ISO 14313,ASME B16.34
CONNECTION DIMENSION CONFORMS WTIH:ASME B16.5,DN EN 1092
FIRE RESISTANCE DESIGN CONFORMS WITH:API 607/ISO 10497
INSPECTION & TEST CONFORMS WITH:API 6D,ISO 5208,API 598
MATERIAL CONFORMS WITH:ISO 15156
Features and Application:
This product is a new type top entry combination ball valve,the seat can be installed and move around the body. Through the thread, the outer margin of the seat connected to the retainer ring. There is spring on the support cover, which installed on the valve body, and the retainer ring can compress spring. The fabrication holes are on the outer margin of the seat and the retainer ring. This new type product adopts total body design, the compensation can be automatically, the possibility of leakage is small, safety in use, vibrate resistance, and double seal. The ball is installed from the top part, so can finsish the maintenance without removing the pipe, it is very convenient.
| Size | NPS 2″~24 |
|---|---|
| Pressure Rating | Class 150~2500 |
| Material | WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L |
| Design & Manufacturing Standard | API 608,API 6D,BS 5351,ASME B 16.34 |
| Face to Face | ASME B 16.10,API 6D |
| End Connection | ASME B16.5,ASME B 16.47,ASME B 16.25 |
| Test and Inspection | ISO5208,API 6D |
| Operation Method | Manual,Worm Gear,Electric Actuator,Pneumatic Actuator |
Materials of parts
| Body Lid Ball Seat Stem Seat ring O-ring Bolt Support cover Spring Bearing Gasket |
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 PTFE/MYLON/PEEK/TEFLON VITON/NBR B7M/B8M/L7M/B16M A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 17-4PH/17-7PH/Inconel 304+PTFE/316+PTFE Flexible graphite+PTF |
