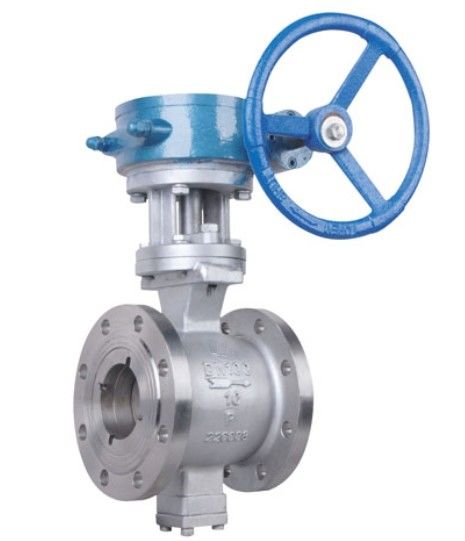

trunnion type ball valve

V type ball valve, 1/2"-20"CL150-600, good V notch, light weight

Surface Treatment

We offer the following processes to choose:

1. Mechanical Polishing (MP) to improve brightness (gloss, matte)

2. Acid Cleaning for Anti-corrosion

3. Electrolysis Polish (EP) to improve surface smoothness

4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness

Forming Machine Process

1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly

Our V-Ball, V-Port and V-Notch ball valves are made in CNC center. The V-ball, V "notch" is an exclusive design that allows precise flow with the ability to modulate and control the flow with 30°, 60°, or 90° degree V "notches". The V-Ball valve is a low maintenance valve with a tight bubble shut off feature. All valves have high manageability with the ability to work in high temperature (up to 1000°F) and in pressures as high as 500PSI (liquids) and 150PSI in steam. V-Ball valves are low cost comparable to valves of similar pressure drops and Cv's with low flow control (as low as 0.07). Our V-Ball valves can come in manual configuration or actuated for automated processing and control. These valves are available in ANSI flanged, NTP (threaded) and socket weld.
