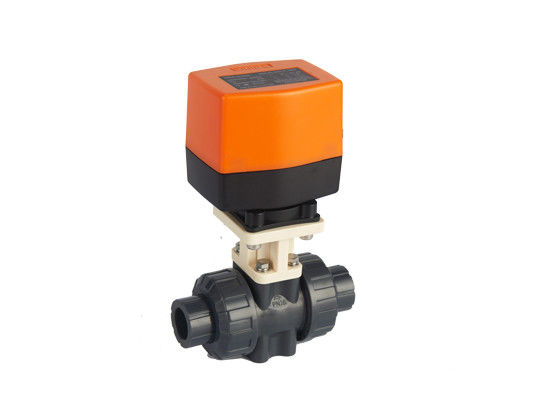

220VAC Electric PVC Plastic Ball Valve DN15-DN25
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
Material
Valve body: U-PVC, C-PVC, PP Stem: U-PVC, C-PVC, PP Stem O-Ring: EPDM, FPM
Ball: U-PVC, C-PVC, PP Carrier O-Ring: EPDM, FPM
Union: U-PVC, C-PVC, PP End Connector: U-PVC, C-PVC, PP End Connestor O-Ring: EPDm, FPM
Dampener Seal: EPDM, FPM Mounting Clamp: PVC-M, SUS304 Bolt: SUS304
| Model No. | Inner Dia. | Inch | Kvs(m3/h) | △Pmax(KPa) |
Ps(KPa) |
|
| WUPBV215 |
2-way |
13mm | 1/2” | 6.15 | 1000 | 1400 |
| WUPBV220 | 18mm | 3/4” | 10.5 | 1000 | 1400 | |
| WUPBV225 | 23mm | 1” | 16.1 | 1000 | 1400 |
Actuator
WRA-63… AC230/110/24V, 50/60Hz, 3-point
WRA-63…A AC230/110/24V, 50/60Hz, on/off
Output torque: >3.5N.m Angle of rotation: 90°
Protect rank: IP55/IP54 On/off time: 16S
Function (3-point or on/off type)
The actuator is controlled by a modulating on/off or 3-point control signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.
WRA-63… 3-point type
Black wire is power on Valve closed
Brown wire is power on Valve open
Black or brown wire is power off Valve keep the current position
Blue wire is connected to the null wire. Also can be used as on/off type.
WRA-63…A on/off type
Black wire is the control wire. Power on: valve open, power off: valve close
Brown wire is connected to the power wire.
Blue wire is connected to the com. Only can be used as on/off type.
| Model No. | Working Voltage | Actuator type | Output torque | Consumption | On/off time | Valve body |
| WRA-6320 |
230VAC±15% 50/60Hz |
3-point or on/off | 3.5N.m | 7W |
50Hz:16S
60Hz:12S |
WUPBV215 WUPBV220 WUPBV225
|
| WRA-6320A |
On/off |
|||||
| WRA-6310 |
110VAC±15% 50/60Hz |
3-point or on/off | ||||
| WRA-6310A | On/off | |||||
| WRA-6302 |
24VAC±15% 50/60Hz |
3-point or on/off | ||||
| WRA-6302A |
On/off |
Service
1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
Our services cover all industries and reach all parts of the world.
