Electric Water Flow Control Valve , Proportional Control Plastic Ball Valve

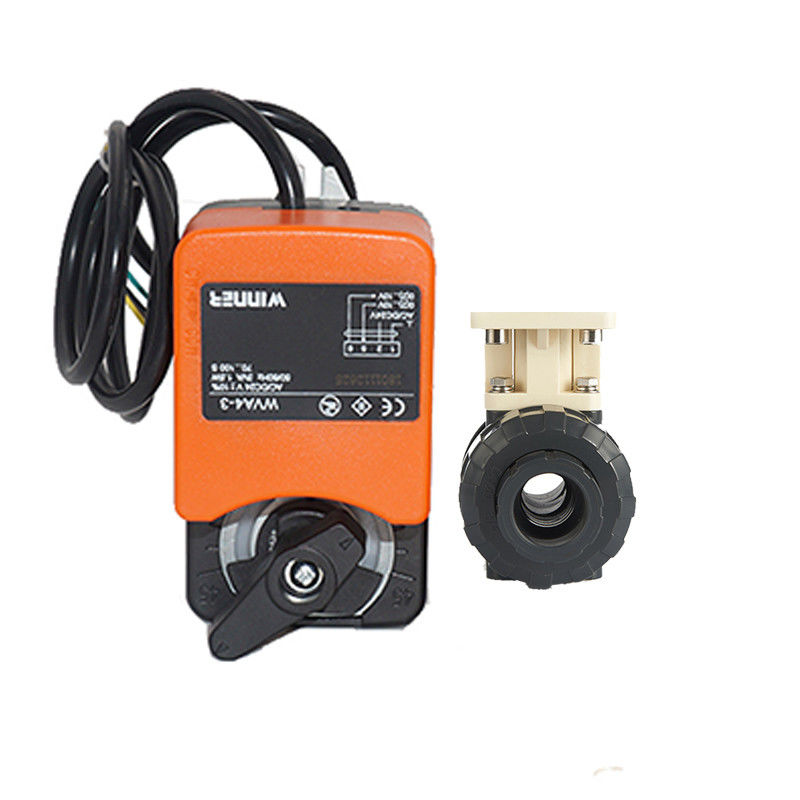

Actuator
WVA4-3… 24VAC/DC±15%, proportional (0-10VDC/0-20mA, 2-10VDC/4-20mA)
| Output torque | 4N.m, 6N.m , 10N.m | |
| Angle of rotation | 90° | |
| Protect rank | IP54 | |
| Manual handle Automatic overload protection system | ||
|
Black wire and brown wire are the power wire. Yellow wire accept 0-10V control signal to control the valve’s open angle |
||
|
Input 0-10VDC control signal Flow characteristic: equal percentage Flow range: 0%-100% |
| SIZE |
DN15 1/2'' |
DN20 3/4'' |
DN25 1'' |
DN32 1-1/4'' |
DN40 1-1/2'' |
DN50 2'' |
||
| d | 13 | 18 | 23 | 30 | 38 | 49 | ||
| DIN dl | 20 | 25 | 32 | 40 | 50 | 63 | ||
| JISdl | 22 | 26 | 32 | 38 | 48 | 60 | ||
| ANSIdl | 21.34 | 26.67 | 33.4 | 42.16 | 48.26 | 60.28 | ||
| BSdl | 21.2 | 26.6 | 33.4 | 42.1 | 48.1 | 60.2 | ||
| D | 56 | 64 | 73 | 88 | 103 | 122 | ||
| Dl | 31 | 36 | 47 | 56 | 65 | 80 | ||
| L | 120 | 128 | 144 | 158 | 182 | 209 | ||
| Ll | 23 | 25 | 28 | 32 | 37 | 42 | ||
| H | 95 | 101 | 133 | 128 | 151 | 171 | ||
| H3 | 29.5 | 33.5 | 39 | 47 | 54 | 65 | ||
| H4 | 28 | 30 | 34 | 41 | 49 | 58 | ||
| H5 | 151 | 153 | 159 | 166 | 182 | 191 | ||
| H6 | 166 | 168 | 174 | 181 | 197 | 206 |
| NO. | Part | Material | QTY | |
| 1 | Body | U-PVC,C-PVC,PP | 1 | |
| 2 | Ball | U-PVC,C-PVC,PP | 1 | |
| 3 | Carrier O-Ring | EPDM,FPM | 1 | |
| 4 | Seal Carrier | U-PVC,C-PVC,PP | 1 | |
| 5 | Union | U-PVC,C-PVC,PP | 2 | |
| 6 | End Connector | U-PVC,C-PVC,PP | 2 | |
| 7 | Seal Seat | PTFE | 2 | |
| 8 | Dampener Seal | EPDM,FPM | 2 | |
| 9 | End Connestor O-Ring | EPDM,FPM | 2 | |
| 10 | Stem O-Ring | EPDM,FPM | 2 | |
| 11 | Stem | U-PVC,C-PVC,PP | 1 | |
| 14 | Mounting Clamp | PVC-M,SUS304 | 1 | |
| 15 | Actuator Coupling Bush | PVC-M,SUS304 | 1 | |
| 16 | Bolt | SUS 304 | 4 |
Product Description

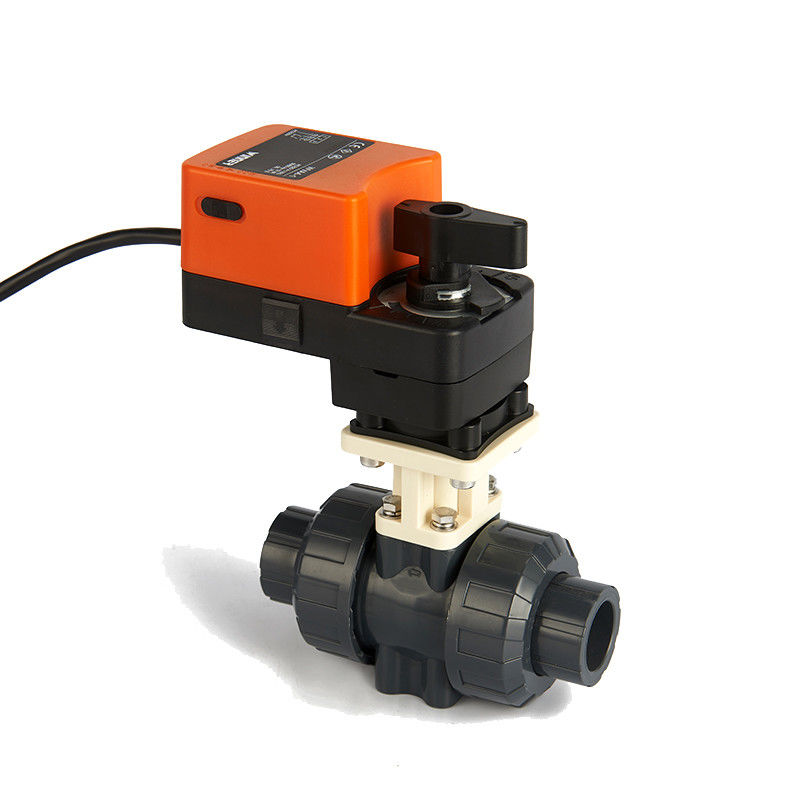

control ball valve consists of WAV4-… series rotary actuator and WCBS…/WCBS… series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Technical Parameter
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Adissable pressure:2.0Mpa
Rated pressure: PN20
Cable Length: 0.5m or 1.5m
Environment Temperature:-20~65 Celsius
Protect rank: IP54/IP55
Package Include:
1x ball valve
1x Actuator Motor
1x Instruction manual
Application
1. HVAC system
2.Water treatment system
3. Heating system
4. Industrial equipments
5. Chemical process
6. Agricultural irrigation
7. Replacing solenoid valve, particularly when solenoid cannot work reliably .It can be installed at any angle and direction,and can work in moist conditions.
8. Regular watering the flowers, Timing humidification ,Air compressor drain at regular time.
