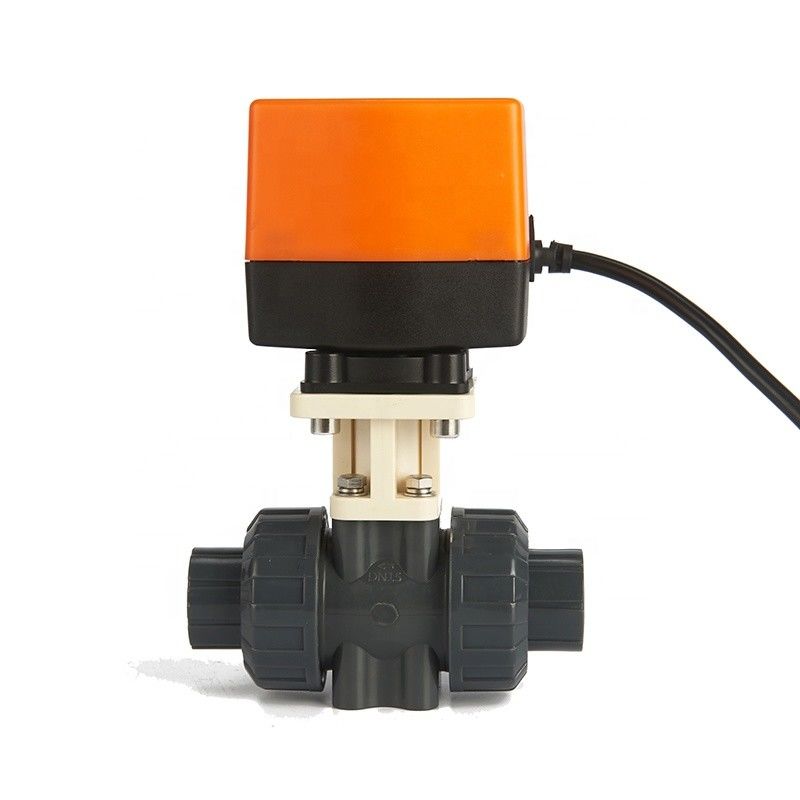

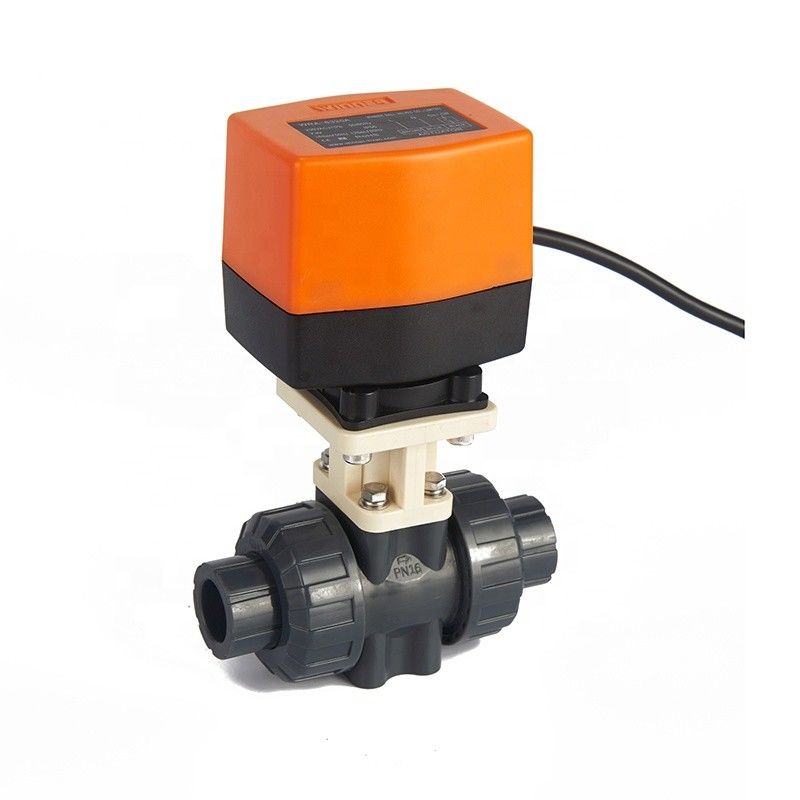

DN15 1/2 inch 2 Way 220VAC Electric Actuated PVC Plastic Motorized Ball Valve Water Control
Technical Parameter
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Adissable pressure:2.0Mpa
Cable Length: 0.5m or 1.5m
Environment Temperature:-20~65 Celsius
Protect rank: IP54/IP55
Package Include:
1x ball valve
1x Actuator Motor
1x Instruction manual
Application
1. HVAC system
2. Water treatment system
3. Heating syste
4. Industrial equipments
5. Chemical process
6. Agricultural irrigation
7. Replacing solenoid valve, particularly when solenoid cannot work reliably .It can be installed at any angle and direction,and can work in moist conditions.
8. Regular watering the flowers, Timing humidification ,Air compressor drain at regular time.

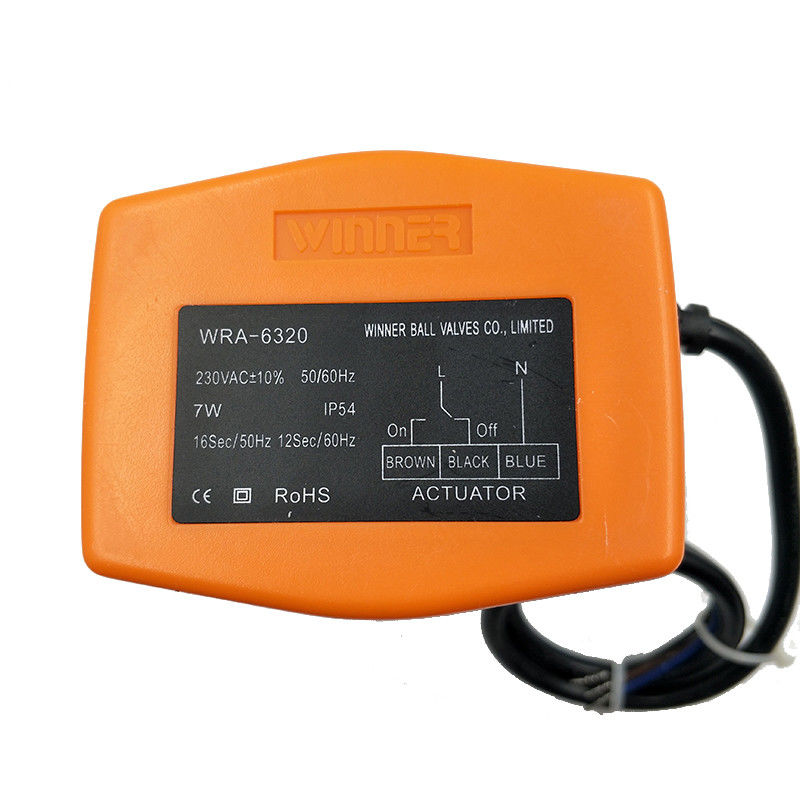

WRA-6320
AC230/110/24V, 50/60Hz, 3-point
| SIZE |
DN15 1/2'' |
DN20 3/4'' |
DN25 1'' |
|
 |
| d | 13 | 18 | 23 | ||
| DIN dl | 20 | 25 | 32 | ||
| JISdl | 22 | 26 | 32 | ||
| ANSIdl | 21.34 | 26.67 | 33.4 | ||
| BSdl | 21.2 | 26.6 | 33.4 | ||
| D | 56 | 64 | 73 | ||
| Dl | 31 | 36 | 47 | ||
| L | 120 | 128 | 144 | ||
| Ll | 23 | 25 | 28 | ||
| H | 95 | 101 | 133 | ||
| H3 | 29.5 | 33.5 | 39 | ||
| H4 | 28 | 30 | 34 | ||
| H5 | 151 | 153 | 159 | ||
| H6 | 166 | 168 | 174 |
| NO. | Part | Material | QTY | |
| 1 | Body | U-PVC,C-PVC,PP | 1 | |
| 2 | Ball | U-PVC,C-PVC,PP | 1 | |
| 3 | Carrier O-Ring | EPDM,FPM | 1 | |
| 4 | Seal Carrier | U-PVC,C-PVC,PP | 1 | |
| 5 | Union | U-PVC,C-PVC,PP | 2 | |
| 6 | End Connector | U-PVC,C-PVC,PP | 2 | |
| 7 | Seal Seat | PTFE | 2 | |
| 8 | Dampener Seal | EPDM,FPM | 2 | |
| 9 | End Connestor O-Ring | EPDM,FPM | 2 | |
| 10 | Stem O-Ring | EPDM,FPM | 2 | |
| 11 | Stem | U-PVC,C-PVC,PP | 1 | |
| 14 | Mounting Clamp | PVC-M,SUS304 | 1 | |
| 15 | Actuator Coupling Bush | PVC-M,SUS304 | 1 | |
| 16 | Bolt | SUS 304 | 4 |
