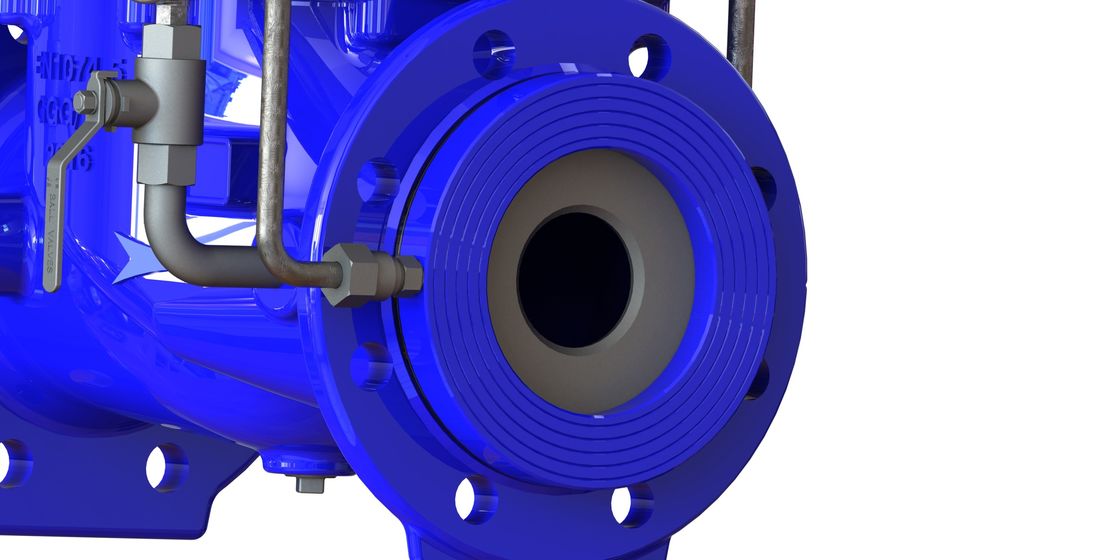

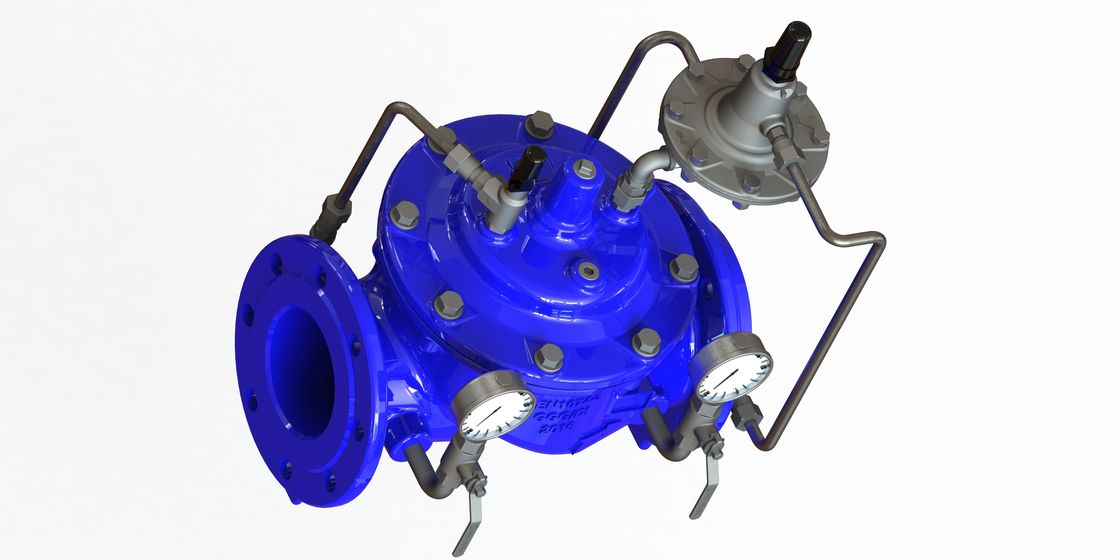

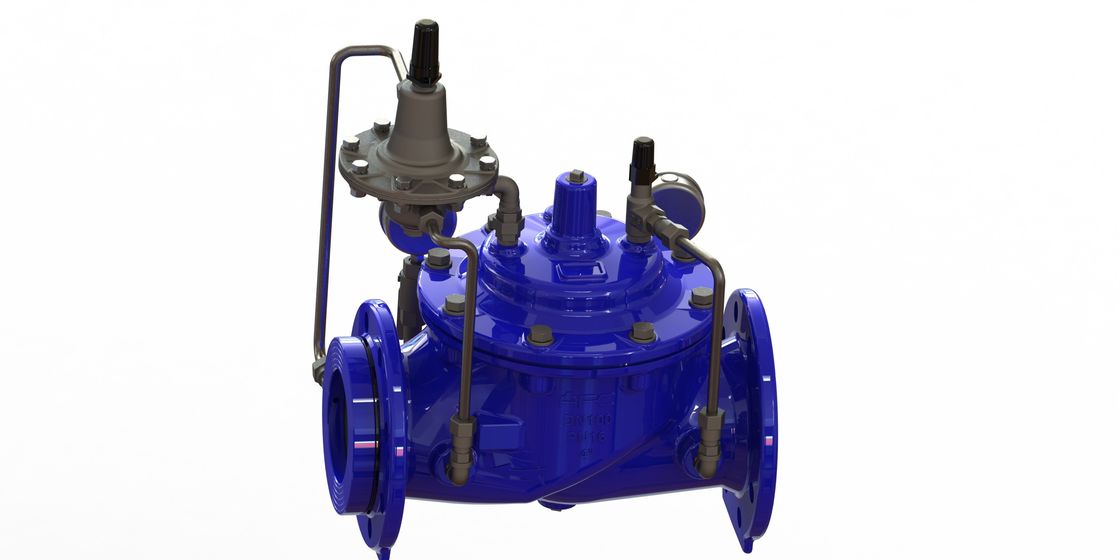

Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function

Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function

Products - Fluid Control Valve
  • Highlight

    constant flow valve

  • Material
    Ductile Iron - GJS500-7
  • Pilot Material
    SS304
  • Standard
    EN1074-5
  • Diaphragm
    Nylon Reinforcement With EPDM
  • Color
    Blue Ral5010
  • Control Pipe
    Stainless Steel 304
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    EN1074-5
  • Model Number
    A400
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function

  • Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function
  • Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function
  • Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function
Get Price Contact Now

Nylon Reinforcement Diaphragm Portable Water Control Flow control valve Ductile Iron Stainless Steel Pilot​





Surface Treatment



We offer the following processes to choose:



1. Mechanical Polishing (MP) to improve brightness (gloss, matte)

2. Acid Cleaning for Anti-corrosion

3. Electrolysis Polish (EP) to improve surface smoothness

4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness



A400 is easy to install and operate, malfunction is not easy to happen for no electric transmitting sensor in control system, pre-setting is very simple, after setting, it acts modulating function automatically, no need of manual operation or other power driving. All iron parts are powder fusion epoxy bonded against rusty,which makes valve long term service



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function 0Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function 1



Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function 2



DN400-DN800



Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function 3Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function 4

Anti Rust Portable Water Flow Control Valve With Automatic Modulating Function 5
