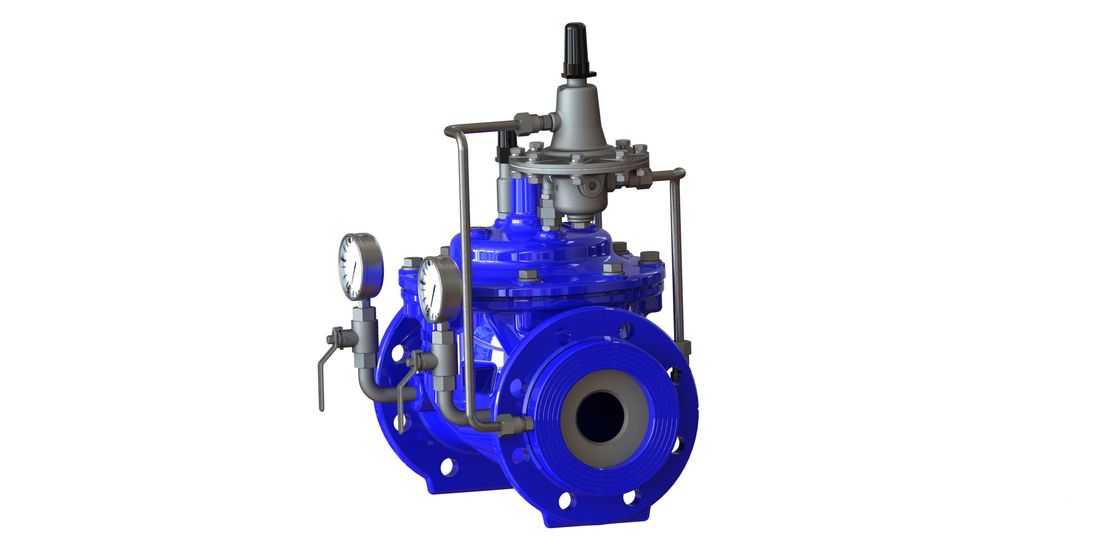

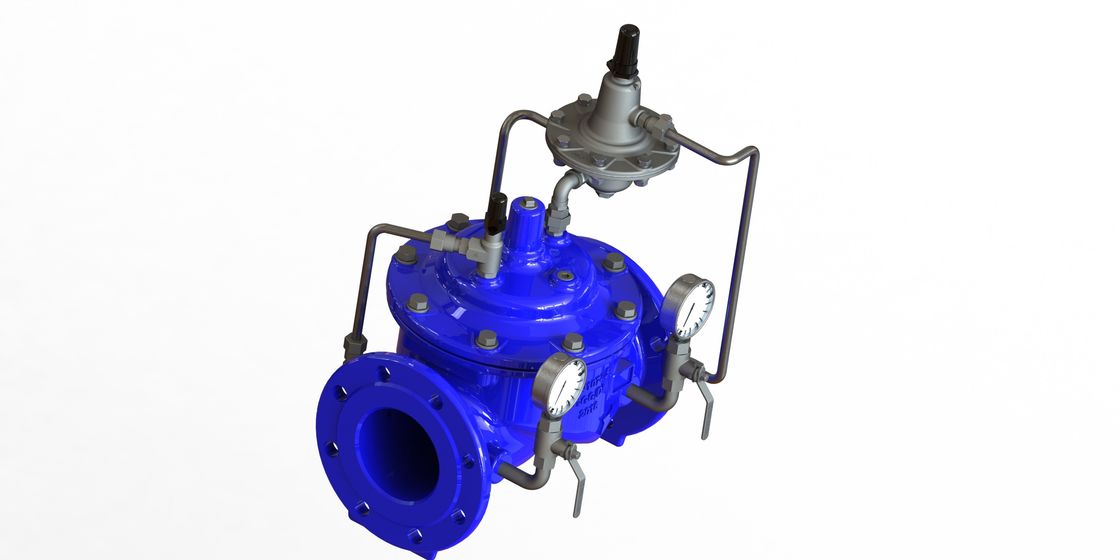

Stainless Steel Pilot Blue Colored Nylon Reinforcement Diaphragm Ductile Iron Flow Control valve​​​



Features:

• Accurate, stable control
• Simple and reliable design
• Low losses when the demand is lower than the set flow


Service Fields:
For water system, irrigation system.

Technical Data:




The A400 flow control valve are piloted hydraulic valves activated by line pressure. Normally the A400 is partly open to allow a preset constant flow rate. The flow rate through the A400 is determined indirectly using an orifice plate. The head loss across the orifice is proportional to the actual flow rate. On
rising head loss, the A400 is automatically piloted to close.
On the other case, the valve opens. Thus the flow rate is maintained constant, regardless of line pressure fluctuations or the downstream demand


Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800
