Stainless Steel Pilot Nylon Reinforcement Diaphragm Ductile Iron Flow Control valve Portable Water Control
How do we control the quality of machining
1. High-precision CNC lathe processing parts.
2. Advanced Milling Machines
3. UT Inspection to ensure welding quality
4. Weld Polishing
5. 100% Appearance & Size Inspection online (thickness, roundness, etc.)
6. Size & Appearance Shaping
Features:
1. Line pressure driven
2. No moving parts
3. No electronic components
4. In-line serviceable
Service Fields:
For water system, irrigation system.

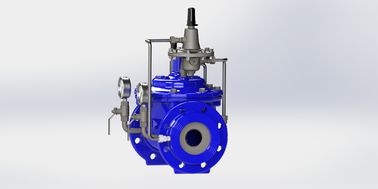

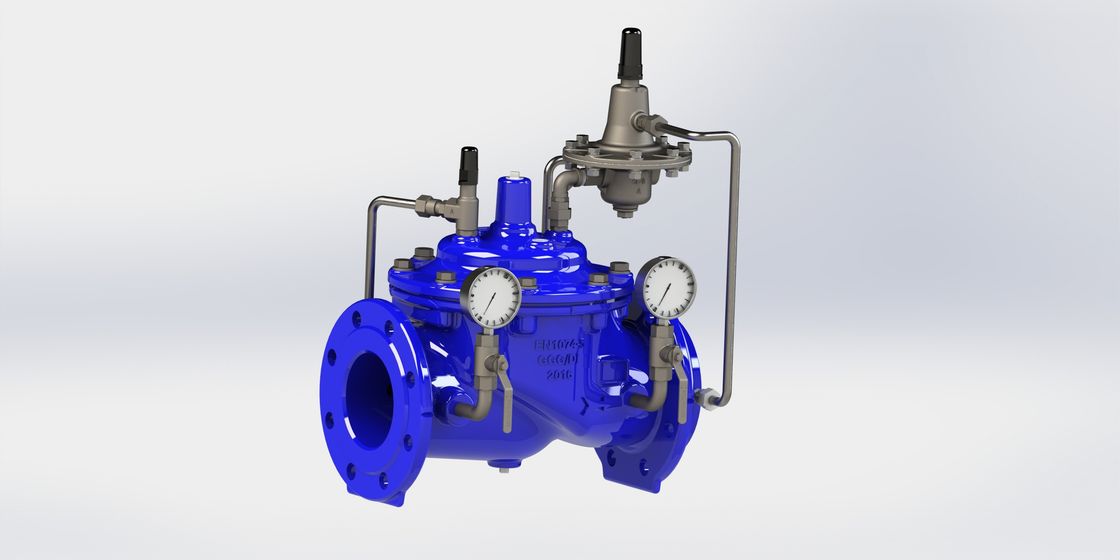

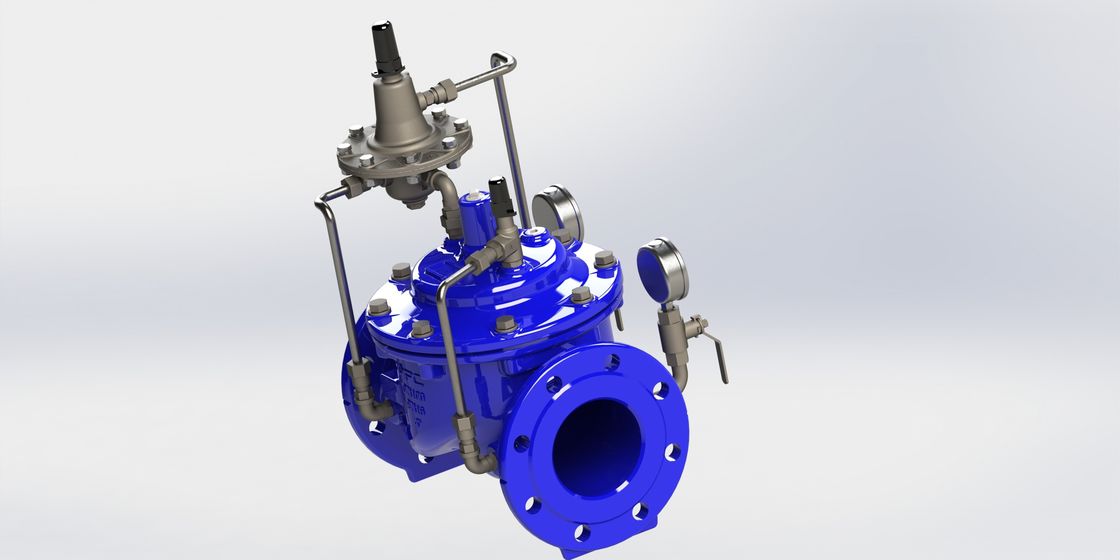

The A400 flow ocntrol valve is a hydraulically operated, diaphragm actuated control valve with two independent functions. It maintains pre-set maximum flow and reduces higher upstream
pressure, regardless of varying demand or upstream pressure.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
