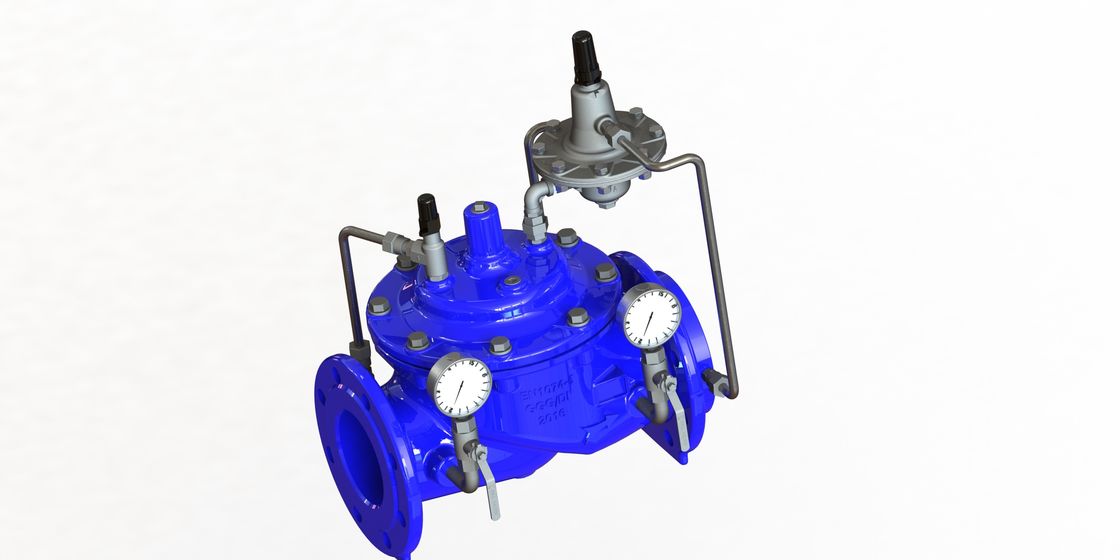

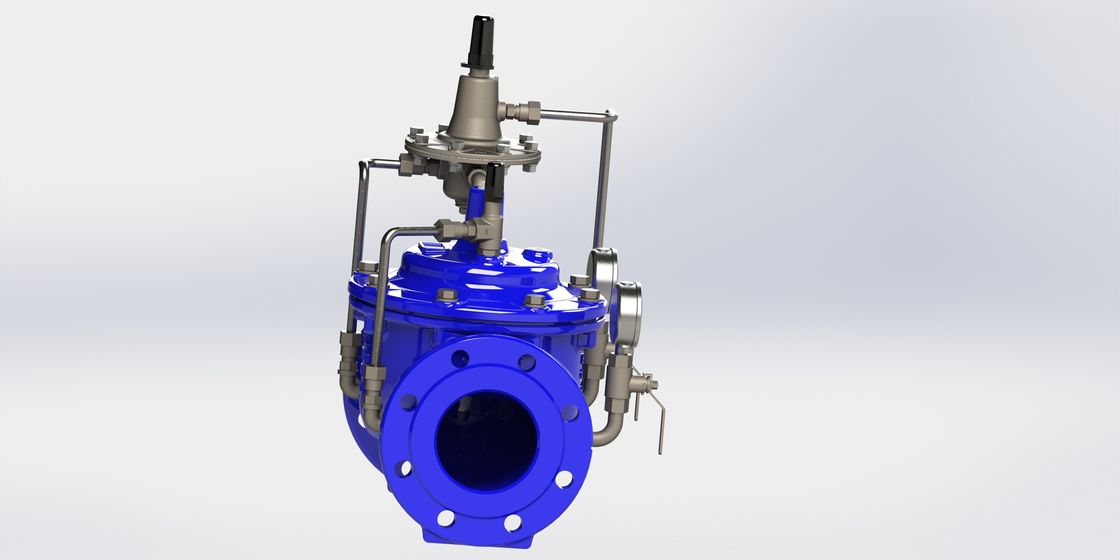

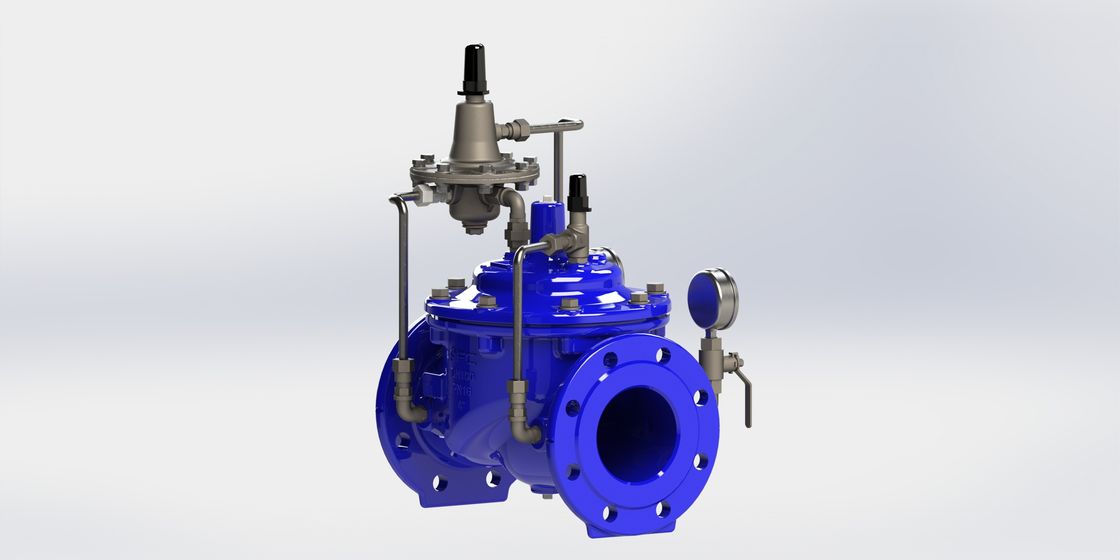

High Performance Fluid Control Valve EN1074-5 Standard With Long Life Time
-
Highlight
constant flow valve
-
MaterialDuctile Iron - GJS500-7
-
Pilot MaterialSS304
-
StandardEN1074-5
-
DiaphragmNylon Reinforcement With EPDM
-
ColorBlue Ral5010
-
Control PipeStainless Steel 304
-
Place of OriginChina
-
Brand NameOEM
-
CertificationEN1074-5
-
Model NumberA400
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order
High Performance Fluid Control Valve EN1074-5 Standard With Long Life Time
Constant Flow Rate Control Flow control valve Ductile Iron Portable Water Nylon Reinforcement Stainless Steel Pilot
A400 is a flow control valve which consists of
1. Main valve
2. Plus an orifice plate kit and flow pilot-P400
3. Pre-selected max. flow rate
4. Regardless of changing line pressure
5. Responds to the differential pressure across the orifice
6. Flow rate can be adjusted thru pilot screw
Service Fields:
For water system, irrigation system.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
| No. | Description | Material | Standard |
| 1 | Body | Ductile Iron | GJS500-7 |
| 2 | Seat | Stainless Steel | AISI304/316 |
| 3 | O-ring | Rubber | NBR |
| 4 | O-ring | Rubber | NBR |
| 5 | Bolt | Stainless Steel | A2/A4 |
| 6 | Washer | Stainless Steel | A2/A4 |
| 7 | Bonnet | Ductile Iron | GJS500-7 |
| 8 | Bush | Bronze | C61900 |
| 9 | Spring | Stainless Steel | AISI304/316 |
| 10 | Caulking Nut | Stainless Steel | A4 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
| 12 | Fixing holder | Ductile Iron | GJS500-7 |
| 13 | Disc holder | Ductile Iron | GJS500-7 |
| 14 | Seal | Rubber | EPDM |
| 15 | Seat Retainer | Stainless Steel | AISI304/316 |
| 16 | Stem | Stainless Steel | AISI304/316 |
| 17 | Plug | Stainless Steel | AISI304/316 |
| 18 | Screw | Stainless Steel | A2/A4 |
| 19 | Plug | Stainless Steel | A2/A4 |
| 20 | Washer | Stainless Steel | A2/A4 |
DN400-DN800
| No. | Description | Material | Standard |
| 1 | Body | Ductile Iron | GJS500-7 |
| 2 | Seat | Stainless Steel | AISI304/316 |
| 3 | Screw | Stainless Steel | A2/A4 |
| 4 | Screw | Stainless Steel | A2/A4 |
| 5 | Screw | Stainless Steel | A2/A4 |
| 6 | Spring | Stainless Steel | AISI304/316 |
| 7 | Bonnet | Ductile Iron | GJS500-7 |
| 8 | Bush | Bronze | C61900 |
| 9 | O-ring | Rubber | NBR |
| 10 | Fix Washer | Bronze | C61900 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
| 12 | Eye Bolts | Carbon Steel | 1040 |
| 13 | Fixing holder | Ductile Iron | GJS500-7 |
| 14 | Disc holder | Ductile Iron | GJS500-7 |
| 15 | Seal | Rubber | EPDM |
| 16 | Seat Retainer | Ductile Iron | GJS500-7 |
| 17 | Stem | Stainless Steel | AISI304/316 |
| 18 | Plug | Stainless Steel | AISI304/316 |
| 19 | O-ring | Rubber | NBR |
| 20 | Cap | Ductile Iron | GJS500-7 |
| 21 | Plug | Stainless Steel | AISI304/316 |
| 22 | Screw | Stainless Steel | A2/A4 |
| 23 | O-ring | Rubber | NBR |
| 24 | Screw | Stainless Steel | A2/A4 |
