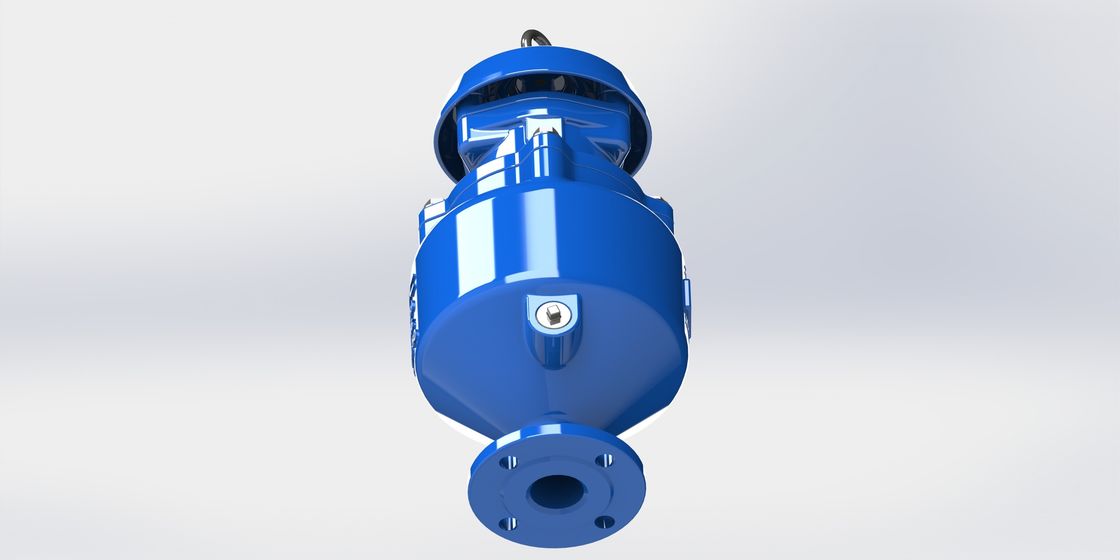

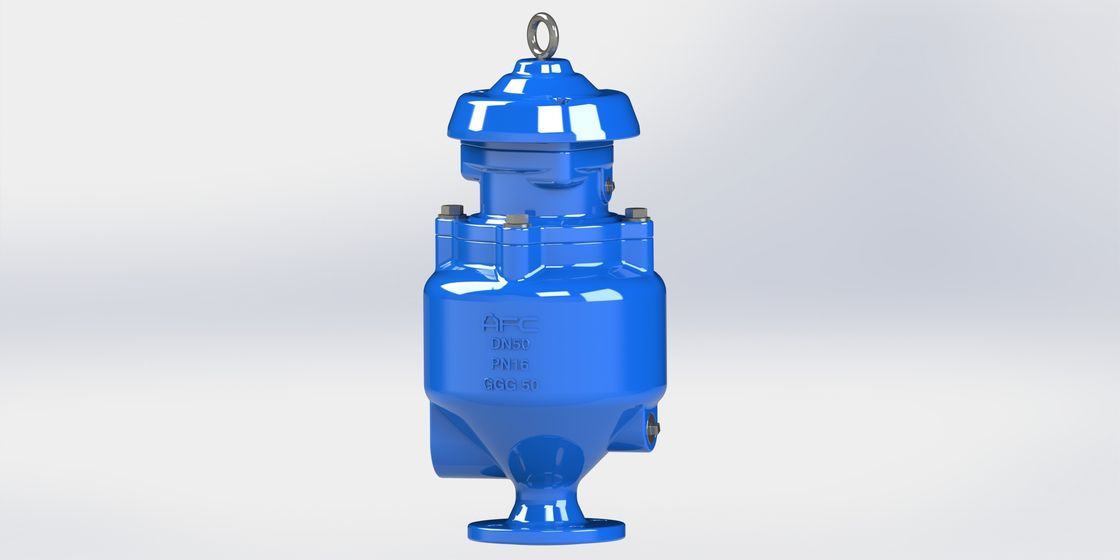

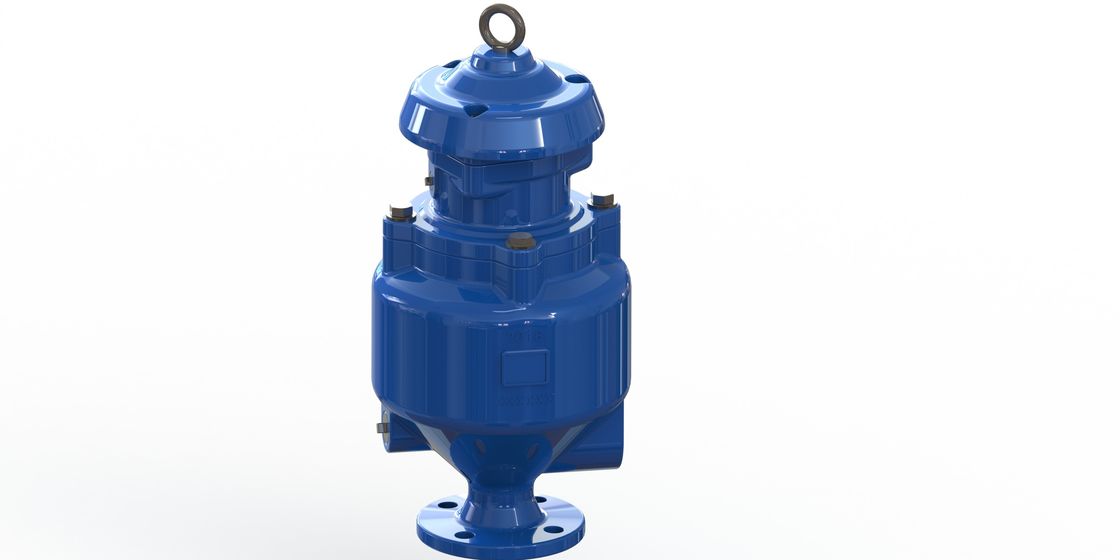

Sewage Combination Air Release Valve Single Chamber Triple Function Flange Type Full Flow Area​​







Forming Machine Process



1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly





How do we control the quality of machining



1. High-precision CNC lathe processing parts.

2. Advanced Milling Machines

3. UT Inspection to ensure welding quality

4. Weld Polishing

5. 100% Appearance & Size Inspection online (thickness, roundness, etc.)

6. Size & Appearance Shaping



Description:



Sewage Combination air release valve provide 3 functions:



1. Large air release

1-1. During water filling the pipeline, float will stay at its original position. (open)



1-2. Let large air out of valve thru big nozzle.



2. Small air release

2-1.When the water level comes up to the top, float will be up to its close position and close the sealing arc- big orifice and small orifice.



2-2.The air (2% of solved air in water ) are continuously coming out from water and gather at the top of the valve.



2-3.The float will be driven down and let small pocket out thru small orifice.



2-4.The sealing arc will still be in close position until empty of water



3. Large air intake during draining of the pipeline.

3-1.Float will drop down when empty of pipeline.



3-2.Large air will come into the pipeline thru valve.



3-3.Preventing from collapse of pipeline and break vacuum.



3-4.Protect the sealing o-ring from clogging in the pipeline.



Features:

. Advanced design: Simple mechanism and strong float to prevent cracking during sudden water hammer& quick closure.

.  Drain boss at the top & bottom for cleaning.

.  No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard : BS EN1074-4, AWWA C512
. Flange drilling and dimension : BS EN 1092 and BS EN 558 and ANSI flange.



Service Fields:

For sewage water system.

Technical Data:

Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.



Quick Selection Table
Water Flow Rate CMH	1360	4160	8500	19100	33400
Main pipe size MM	80-400	400-700	750-1000	1050-1500	1500-2000
Size of SKAR MM	50	80	100	150	200



Material:







Dimension:
