Triple Function Combination Sewage Air Release Valve Spill Free Full Flow Area Ductile Iron EPOXY Coated​​

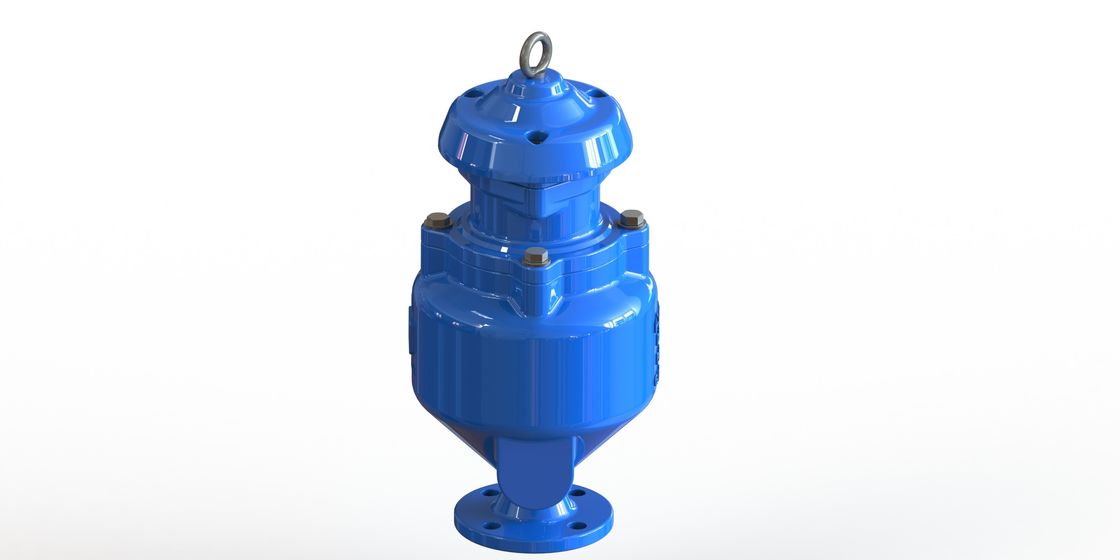

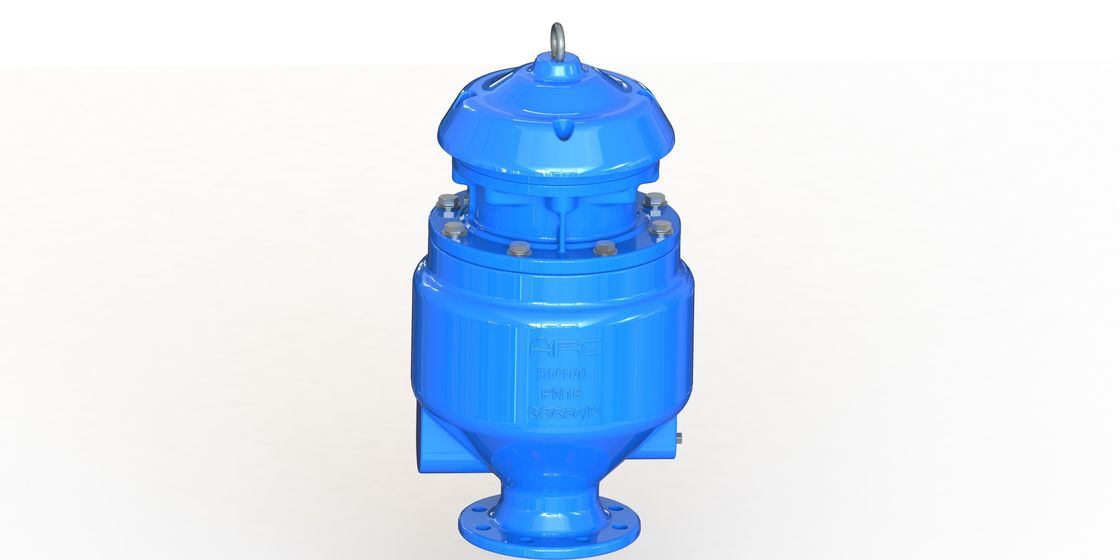

SKAR - Sewage Combination Air Release Valve



How do we ensure finished product quality (FQC inspection)



1. Visual Inspection

2. Material Grade Measurement

3. Dimension Inspection

4. Roughness Detection

5. Roughness Detection

6. Leakage Test





Surface Treatment



We offer the following processes to choose:



1. Mechanical Polishing (MP) to improve brightness (gloss, matte)

2. Acid Cleaning for Anti-corrosion

3. Electrolysis Polish (EP) to improve surface smoothness

4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness





Combination kinetic air release valve provide 3 functions:

1. Large air release during fi lling of the pipeline.

2. Small air release under pressurized pipeline.
3. Large air intake during draining of the pipeline.

. Advanced design with simple mechanism, strong fl oat to prevent cracking during sudden water hammer& quick closure.

.  Window cage for upper stablizing
. No arms or levers to prevent vibrating, bending, direct closure of the float.

. Drain boss at the top & bottom for cleaning
. Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard meets BS EN1074-4, AWWA C512
. Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.



Technical Data:

Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.



Quick Selection Table
Water Flow Rate CMH	1360	4160	8500	19100	33400
Main pipe size MM	80-400	400-700	750-1000	1050-1500	1500-2000
Size of SKAR MM	50	80	100	150	200



Material:

















































Dimension:
