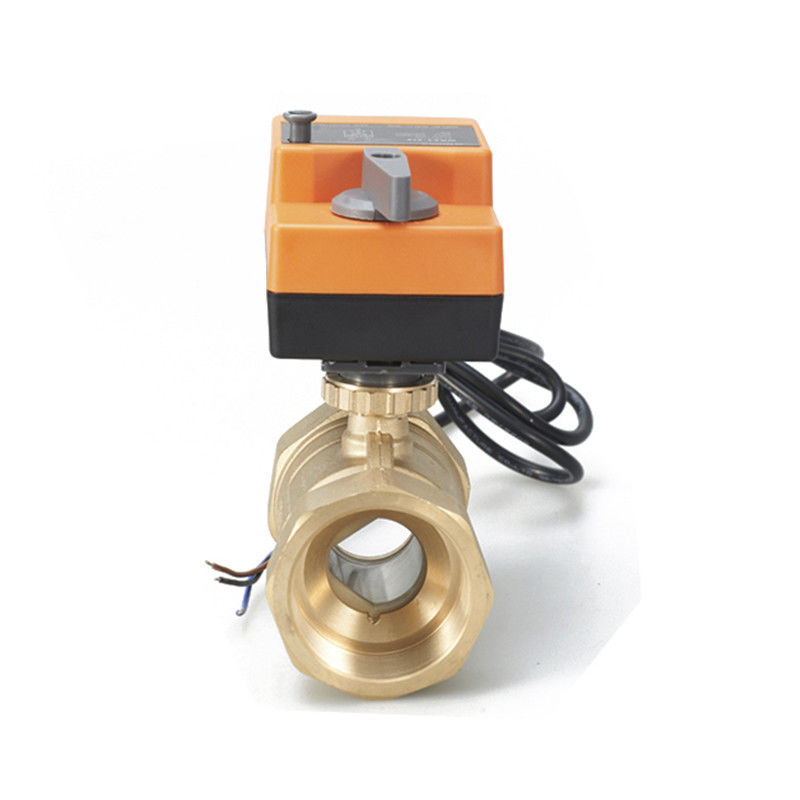

Electric Operated Ball Valve , 12V Motor Actuated Brass Ball Valve
-
Highlight
electrically operated valve
-
ApplicationGeneral
-
MaterialBrass
-
Temperature Of MediaMedium Temperature
-
PressureMedium Pressure
-
PowerOther
-
MediaWater, Water, 50% Glycol
-
Port Size1-1/4"
-
StructureBall
-
Product NameElectrical Motor Actuated Function Brass Water Ball Valve
-
Protect RankIP65
-
Pressure GradePN20
-
Running Time10~35s
-
Power Consumption<5W
-
Output Torque6N.m
-
Power SupplyDC12V
-
Actuator MotorDC Motor
-
CertificateCE, RoHS
-
PortChangsha, Shanghai, Shenzhen
-
Place of OriginChina
-
Brand NameOEM
-
CertificationCE
-
Model NumberWRA3-205D+W8BV232
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order
Electric Operated Ball Valve , 12V Motor Actuated Brass Ball Valve
12v Motorized Thread Electrical Motor Actuated Function Brass Water Ball Valve
Forming Machine Process
1. CNC Lathe Processing
2. High precision CNC machining center processing
3. General lathe processing
4. The machine punch the product parts
5. Cold Forming Molding
6. Welding Assembly
Actuator
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
On/off time |
Valve body |
|
WRA3-105D |
24VDC |
ON/OFF |
5N.m |
5W |
12~35s |
W8BV215 W8BV220 W8BV225 W8BV232 W8BV240 W8BV250 W8BV315 W8BV320 W8BV325 W8BV332 W8BV340 W8BV350 |
|
WRA3-205D |
12VDC | |||||
| WRA3-305D | 3VDC |
Ball Valve
|
Model No. |
|
Inner Dia. |
Inch |
Kvs(m3/h) |
Pmax(KPa) |
Ps(KPa) |
|
WBBV215 |
2-way |
12mm |
1/2” |
6.1 |
1000 |
1400 |
|
W8BV220 |
15mm |
3/4” |
21 |
|||
|
W8BV225 |
20mm |
1” |
26 |
|||
| W8BV232 | 28mm | 1-1/4" | 16 | |||
| W8BV240 | 35mm | 1-1/2" | 25 | |||
| W8BV250 | 38mm | 2" | 43 | |||
|

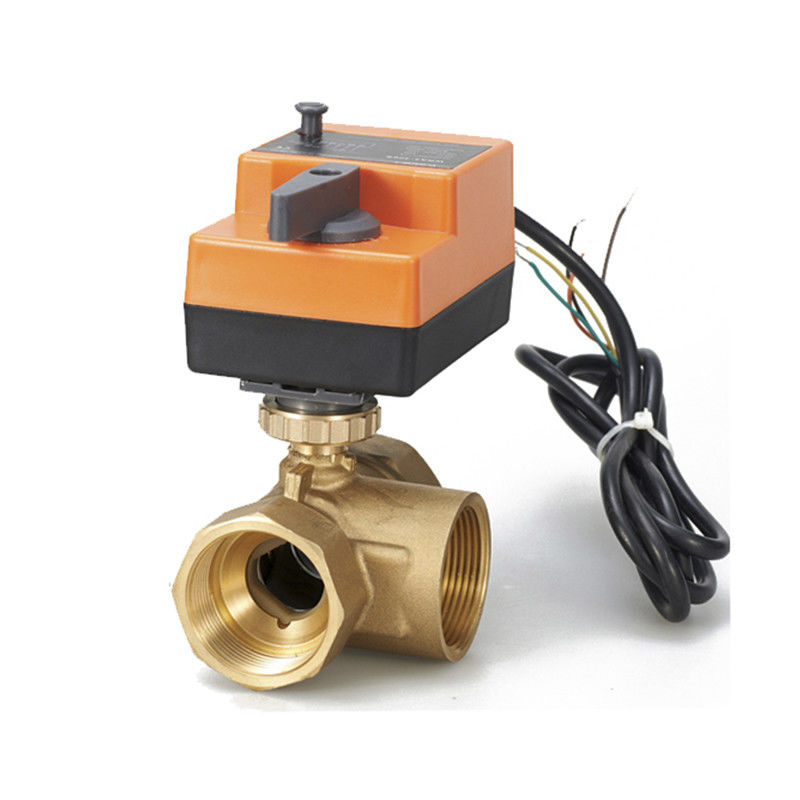

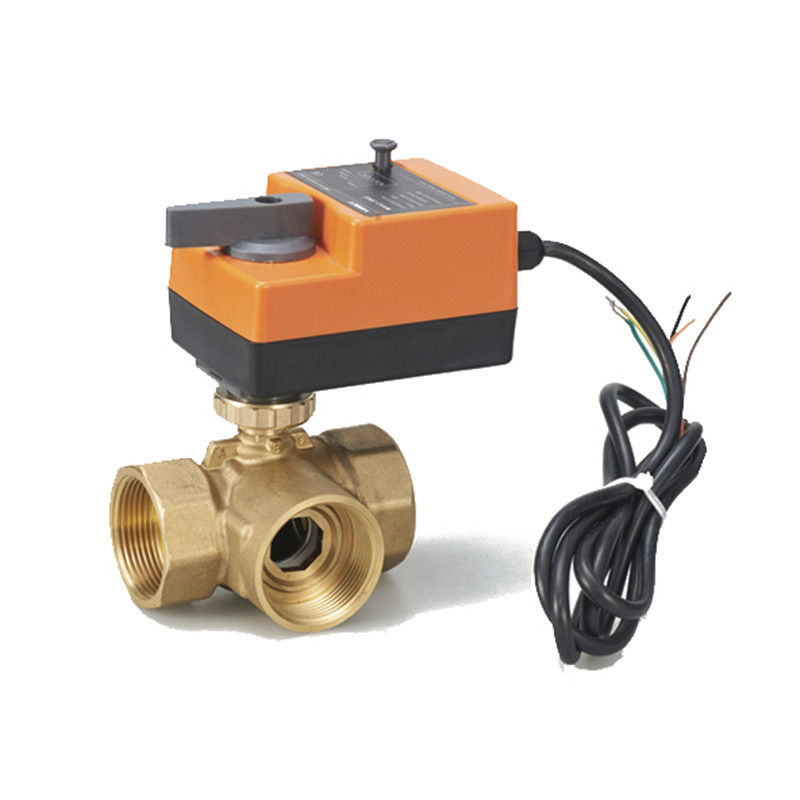

W8BV315 |
3-way |
10mm |
1/2” |
8.6 |
||
|
W8BV320 |
14mm |
3/4” |
21 |
|||
|
W8BV325 |
18mm |
1” |
22 |
|||
| W8BV332 | 28mm | 1-1/4" | 16 | |||
| W8BV340 | 35mm | 1-1/2" | 25 | |||
| W8BV350 | 38mm | 2" | 43 |
Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.
Our services cover all industries and reach all parts of the world.
