Description

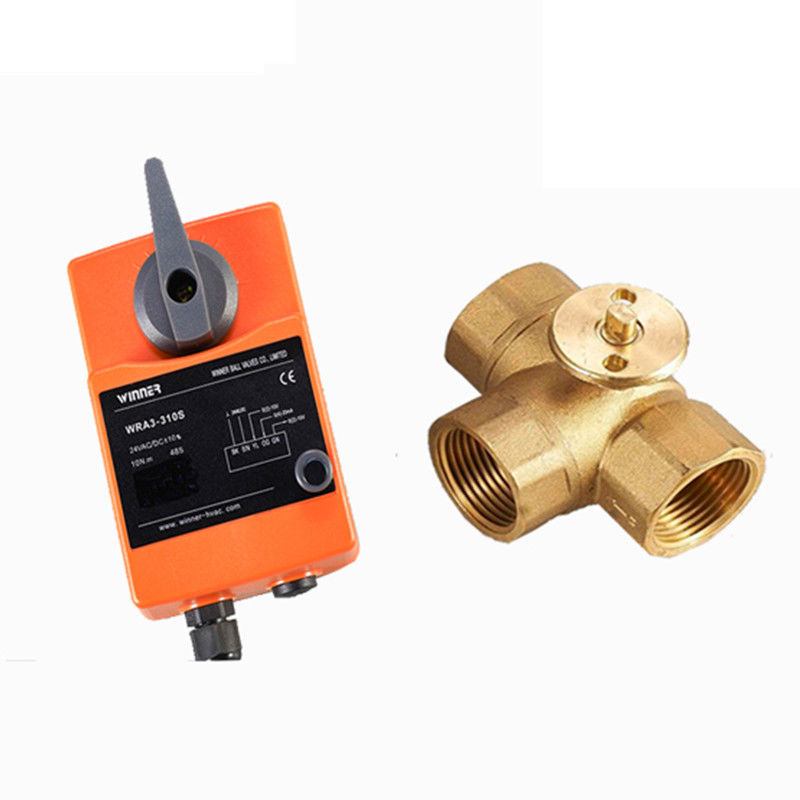

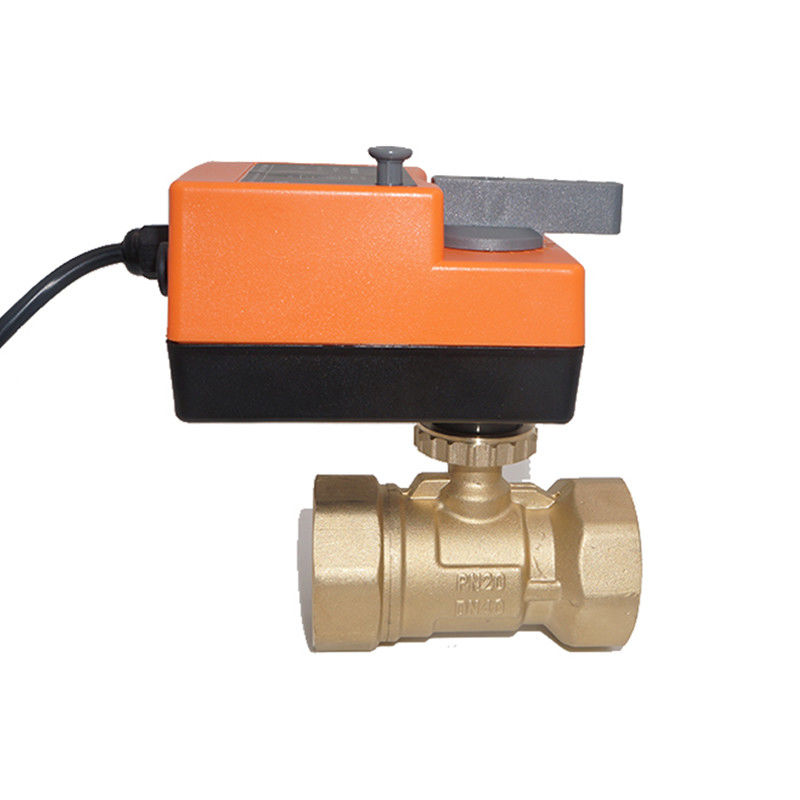

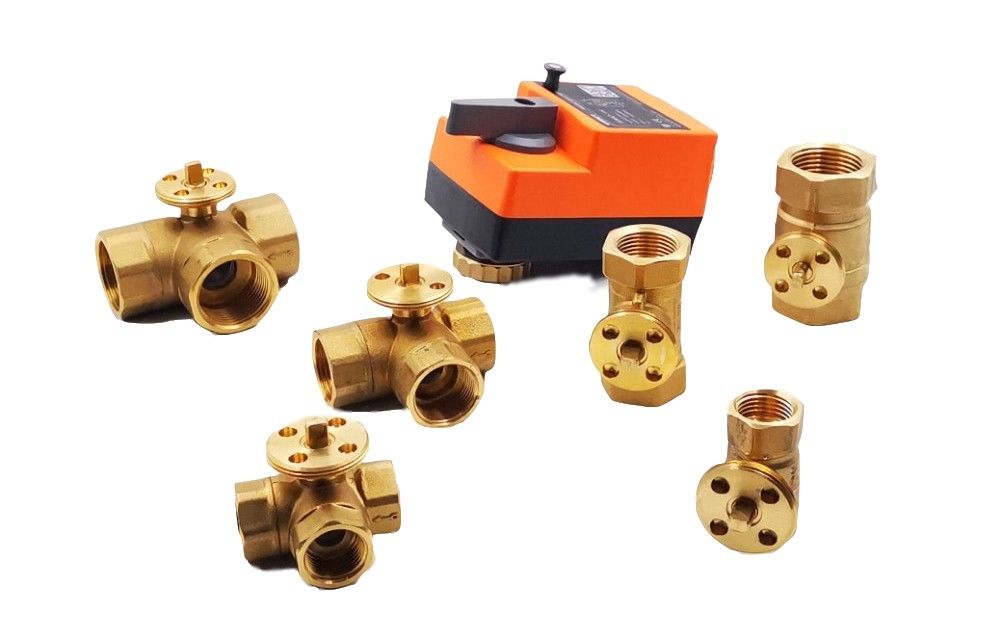

Fast running control ball valve consists of WRA3-...S series stepping motor actuator and W8BV... series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Stepping motor control ball valve. The characteristic of it is accurate,fast,strong anti-interference. It is a typical digital control mode.
About us
Our company is specialist in design and production of high quality water valve, and has grown to become one of the leading manufacturers for fluid control valve. We design and manufacture a wide range of fluid valve,, such as float control valve, trunnion ball valve, water pressure reducing valve, rotary airlock valve, sanitary butterfly valve, hydraulic check valve,sewage air release valve, etc. Our constant technical innovation combined with stringent quality control systems has enabled us to deliver high performance and outstanding value in industrial applications.
Application
HVAC system
Heating system
Water treatment system
Industrial equipment
Operational mode
control ball valve is motor-operated by a type of WRA3-S series actuator. The actuator is controlled by a modulating on/off , 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal. The standard product is 0-10VDC proportional control , on/off or flowing point but can be customized according to customer requirements quickly dc switch proportion,floating control products.
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH Size: G 1/2’’ - G 2’’
Valve type: 2-way and 3-way Flow characteristic: equal percentage, on/off
ACTUATOR:
Cover: PC Rotating shaft: POM & Stainless steel(Optional)
Power supply: 24VAC/DC( Support customize the driver of the power supply for 12 ~ 28 VDC)
On-Off time: 2N.m--8S; 6N.m--20S; 10 N.m--48S (On/off time can be set according to customer needs, set up, the value will be fixed.)
Angle of rotation: 90° Manual handle available
Protect rank: IP65
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

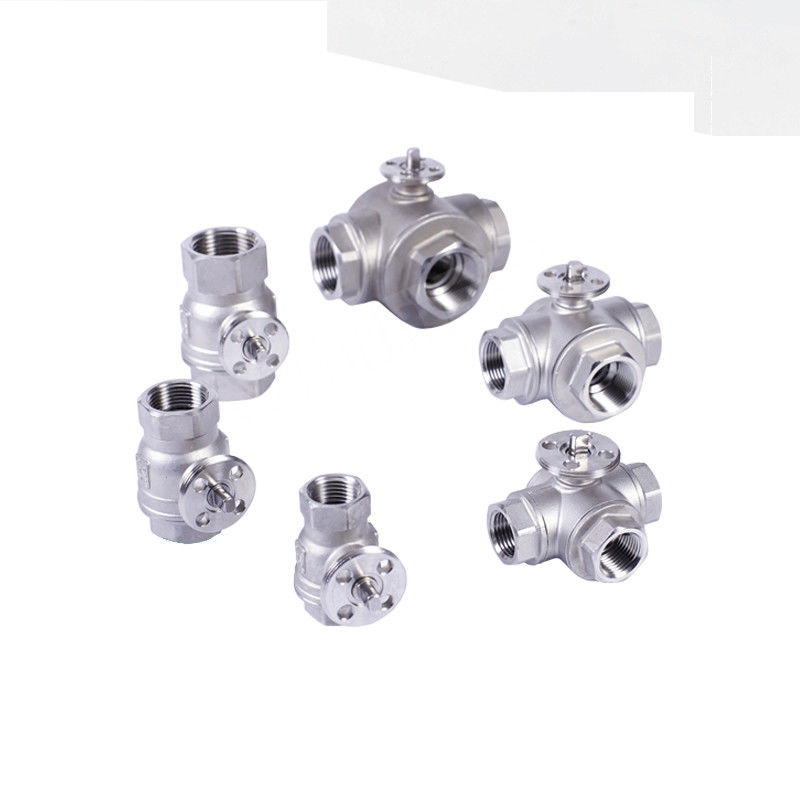

Ball:stainless -steel or chromeplate brass. stem: EPDM
Matching Valve body parameters:
|
Model No. |
Description |
DN(mm) |
Inch |
Kvs(m3/h) |
Pvmax(MPa) |
Ps(KPa) |
|
W8BV215 |
2-way |
DN15 |
1/2” |
6.15 |
2.5Mpa |
1400 |
|
W8BV220 |
2-way |
DN20 |
3/4” |
10.5 |
2.5Mpa |
1400 |
|
W8BV225 |
2-way |
DN25 |
1” |
16.1 |
2.5Mpa |
1400 |
|
W8BV232 |
2-way |
DN32 |
11/4” |
16 |
2.5Mpa |
1400 |
|
W8BV240 |
2-way |
DN40 |
11/2” |
25 |
2.5Mpa |
1400 |
|
W8BV315 |
3-way |
DN15 |
1/2” |
3.95 |
2.5Mpa |
1400 |
|
W8BV320 |
3-way |
DN20 |
3/4” |
6.8 |
2.5Mpa |
1400 |
|
W8BV325 |
3-way |
DN25 |
1” |
15.8 |
2.5Mpa |
1400 |
|
W8BV332 |
3-way |
DN32 |
11/4” |
16 |
2.5Mpa |
1400 |
|
W8BV340 |
3-way |
DN40 |
11/2” |
25 |
2.5Mpa |
1400 |
| W8BV350 | 3-way | DN50 | 2” | 40 | 2.5Mpa | 1400 |
Actuator technical parameters:
|
Model |
Control |
Power |
Torque (N.m) |
On/off Time (s) |
|
WRA3-105D |
On/off |
24VDC |
6 |
10-35 |
Note: We can customize the driver of the power supply for 12 ~ 28 VDC, for details please consult weiner engineering and technical personnel.
