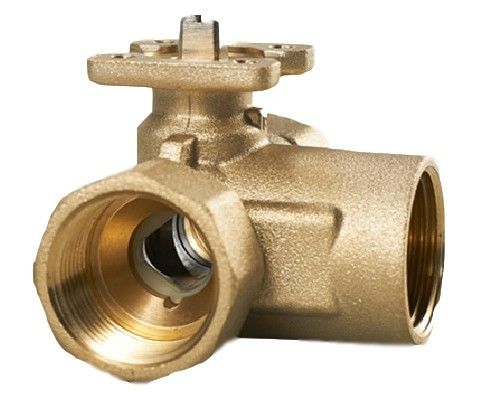

Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread Ambient temp. range: −5…+60°C;0…90%RH Size: G1/2’’ -G2’’
Valve type: 2-way and 3-way Flow characteristic: equal percentage, on/off
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless steel brass stem: EPDM
Valve connector: PC Valve spindle: aluminum alloy
Description

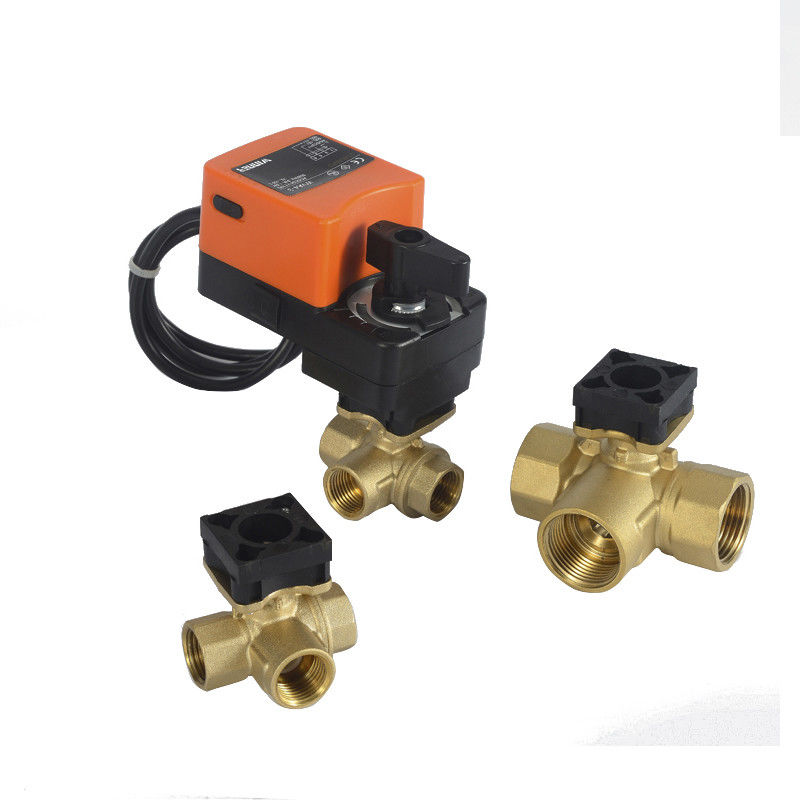

control ball valve consists of WAV4-… series rotary actuator and WCBS… series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Operational mode
control ball valve is motor-operated by a type of WVA4-1…, WAV4-2…, and WAV4-3… actuator. The actuator is controlled by a modulating on/off , 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.
Application
HVAC system
Heating system
Water treatment system
Industrial equipments
|
Model No. |
DN(mm) |
Inch |
Kvs(m3/h) |
Pvmax (MPa) |
Ps (KPa) |
|
WCBS215 |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
|
WCBS220 |
DN20 |
3/4’’ |
6.3 |
2.5Mpa |
1400 |
|
WCBS225 |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
|
WCBS250 |
DN50 |
2” |
43 |
2.5Mpa |
1400 |
|
WCBS315 |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
|
WCBS320 |
DN20 |
3/4’’ |
6.3 |
2.5Mpa |
1400 |
|
WCBS325 |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
|
WCBS350 |
DN50 |
2” |
43 |
2.5Mpa |
1400 |
Actuator
WVA4-2… 24VAC/DC±15%,3-point
Function (3-point,or proportional type)
The actuator is controlled by a modulating on/off, 3-point, and proportional control signal, using high transmitting ratio gear drive to fix and lock.
WVA4-2… 24VAC/DC±15%, 3-point
Brown wire is power on counterclockwise rotation, valve open
Red wire is power on clockwise rotation, valve close
Brown or red wire is power off Valve keep the current position
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
Valve body |
|
WVA4-104 |
230AC±15% |
3-point |
4N.m |
6VA |
DN25,DN20,DN15 |
|
WVA4-106 |
6N.m |
DN50,DN40,DN32, |
|||
|
WVA4-110 |
10N.m |
DN50 |
Connector
|
Model No |
Commodity |
Application |
Actuator |
Valve body |
Spindle |
|
WCBV-1 |
Connector
|
Be used to connect the actuator and the valve body |
WVA4-106,WVA4-206 WVA4-306,WVA4-110 WVA4-210,WVA4-310 |
WCBV232 WCBV240 |
WCBV-2
|
|
WCBS-1 |
WVA4-104,WVA4-204 WVA4-304,WVA4-106 WVA4-206,WVA4-306 WVA4-110,WVA4-210 WVA4-310 |
WCBS232,WCBS240 WCBS250,WCBS332 WCBS340,WCBS350 |
WCBS-2 WCBS-3
|
